Williams Sound DWD 102
Digi-Wave Dual Bay Docking Station

OUR PART #  DWD-102

Our Price: $476.00
List Price: $529.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Williams Sound DWD 102 Digi-Wave Dock offers an innovative extension to the Digi-Wave two-way wireless communication system. It provides a simple, flexible way to connect portable Digi-Wave systems to other fixed systems. The connection begins when a Digi-Wave transceiver or receiver is simply plugged into the Dock. The Dock provides continuous power and/or charging for two Digi-Wave devices, and has separate audio inputs and outputs in each of its bays.

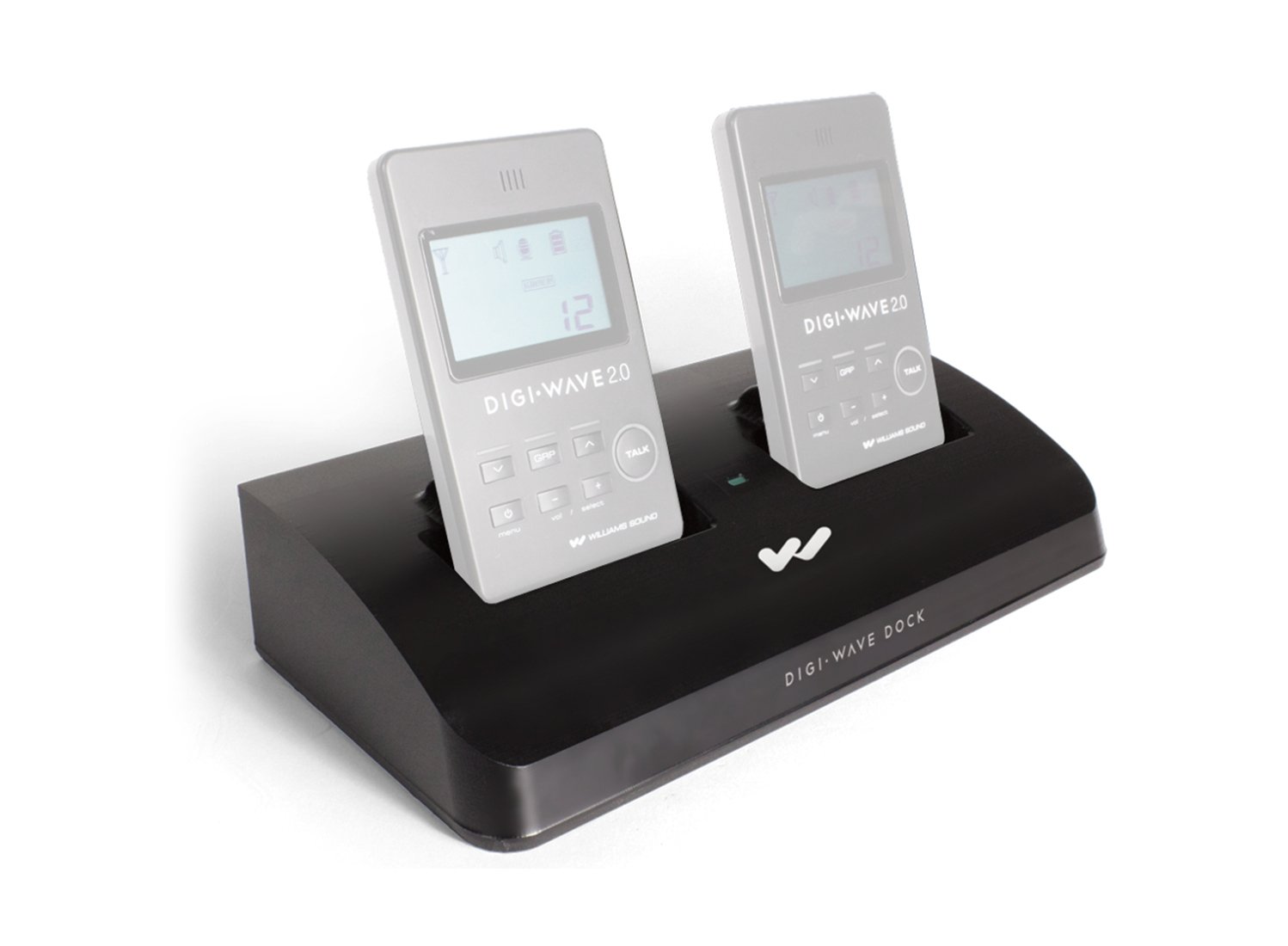

NOTE:  Image shown above is for illustrative purposes only; actual product is DWD 102 ONLY, Digi-Wave transceivers shown are NOT included with purchase. For more information on this and other products, contact your Sales Representative.

Williams Sound DWD 102 Features:

  • Easy access to all sound systems
  • Separate inputs and outputs in each bay RCA or XLR input/output option
  • Charges DLT 100 2.0 transceivers and DLR 60 2.0 receivers
  • Clean, streamlined design
  • Applications:
    • Digi-Wave can be used as a presentation system, permitting multiple presenters, without the need for a mixer or multiple wireless microphones.
    • Digi-Wave can be added as a wireless connection to teleconferencing or wired intercom systems.
    • Allow an easy connection and powering of individual interpreter transmitters when the Digi-Wave is used in the language interpretation mode.

Williams Sound DWD 102 Specifications:

  • Dimensions (LxWxH):  8.88” x 4.34” x 2.16"  (226mm x 110mm x 55mm)
  • Shipping Weight:  1.4 lbs (0.64 kg)
  • Enclosure:  Black, heavy duty plastic molded top, with metal base and non-skid rubber feet.  White legends on back.
  • DC Power Input:  2.5mm ID barrel connector, 24VDC input, 750mA, Center Positive.
  • Power Supply:  Williams Sound TFP 048.
  • Input:  100-240VAC 50/60Hz, 18W.
  • Output:  24VDC, 750mA.
  • Charging Time:
    • DLT 100 2.0: 5 hours nominal (internal Lithium Polymer Battery)
    • DLR 60 2.0: 5 hours nominal, based on Williams Sound NiMH battery BAT 022-2.
  • Unit Capacity:  2?Units:  DLT 100 2.0, DLR 60 2.0, or DLR 60.  DLT 100 units will charge only (no audio).
  • Indicators:  Green LED indicating power at the charger/dock.  Charging status is shown on unit being charged.
  • Rear Inputs:  One set of L/R RCAs and one female XLR per bay.
  • Rear Outputs:  One set of L/R RCAs and one male XLR per bay.
  • Dock Connector:  One 30-pin connector per bay.  Supports power/charging, audio in, audio out, and control signals.
  • Controls:  One 2-position switch per bay, for “manual” or “auto” mode.
  • Warranty:  2 Years
  • Approvals:  FCC, CE, Cv, Industry Canada, RoHS2, CB scheme, EnergyStar V
