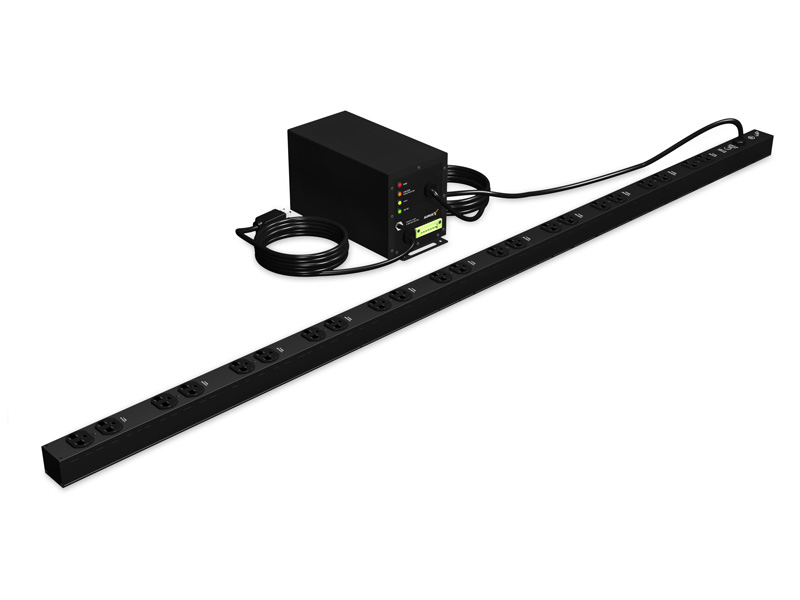

SurgeX CM-1120-RT24
120V/20A Compact Standalone Surge Eliminator with 24 Outlets

OUR PART #  CM-1120-RT24

Our Price: $1,149.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The SurgeX Space Saver line has answered the calls for a more efficient space-saving unit that provides premium power protection. With a revolutionary design that enables more rack space, it features compact solutions that can be mounted with plugs facing up or down for maximum convenience and flexibility.

Power distribution is neatly organized at the back of the rack and provides easy access to the power cable configuration, eliminating the need to install the custom length power cords that large racks require. They feature a remote interface with indicator LED, over/under voltage protection LED, power on/off LED, self-test LED, and two power configurations for easy power management.

Incorporated with the patented SurgeX Advanced Series Mode surge elimination technology, it is superior to conventional protectors and insures the highest level of protection against damaging surges, spikes, over voltage, EMI/RFI noise, and wiring faults. They are completely non-sacrificial and eliminate all surge energy without producing harmful side effects such as ground contamination or common-mode disturbances. SurgeX Space Savers are the ultimate audio visual protection solution when space is at a premium.

SurgeX CM-1120-RT24 Features:

  • Compact mount space-saving solution
  • Protects against power anomalies that can cause disruptions and equipment failure
  • Superior Advanced Series Mode technology
  • Completely non-sacrificial and eliminates surge energy up to 6,000 volts without producing harmful side effects
  • Power distribution neatly organized at the back of the rack
  • Impedance Tolerant EMI/RFI filtering
  • SurgeX ICE Inrush Current Elimination
  • Accepts both DC voltage and contact closure control inputs
  • Two or more units can be cascaded together for larger systems

SurgeX CM-1120-RT24 Specifications:

  • Operational Voltage Range:  90 to 150 Volts AC
  • Current rating:  20 Amps
  • Power Rating:  2,400 Watts
  • Maximum Load Inrush Energy:  1000 Joules total during power-up
  • Under-Voltage Shutdown:  90 V (resume at 100V)
  • Over-Voltage Shutdown:  145V (resume at 135V)
  • Surge Let-through Voltage:  Zero let-through Voltage for a 6000 Volt surge
  • Meets Federal Guidelines:  Grade A, Class 1, Mode 1 (CID A-A-55818)
  • EMI/RFI Filter, Normal Mode:  40 dB @ 100 KHz, 50dB @ 300 KHz, 50 dB @ 3 MHz, 50 dB @ 30 MHz (50 Ohm load)
  • EMI/RFI Filter, Common Mode:  18dB @ 300 KHz, 30 dB @ 1 MHz, 50 dB @ 5 MHz, 50 dB @ 20 MHz (50 Ohm load)
  • Maximum Applied Surge Voltage:  Unlimited, due to current limiting
  • Maximum Applied Surge Current:  Unlimited, due to current limiting
  • Maximum Applied Surge Energy:  1 kV>500,000; 3 kV>10,000; 6 kV>1000
  • Endurance:  (C62.41-1991 category B3 pulses), 1 KV > 500,000; 3 KV > 10,000; 6 KV > 1000
  • Number of Outlets:  24
  • Remote Control Voltage:  5 to 30 Volts DC
  • Remote Control Current Draw:  4 mA maximum
  • Contact Closure Max. Resistance:  100 Ohms
  • Auxiliary Relay Contact Rating:  30 Volts DC at 1 Amp
  • 12 Volt Output Max. Current:  20 mA
  • Dimensions (no rack ears or feet):  4.95" W x 9.50" D x 5.66" H
  • Weight:  8.5 lb.
  • Attached Power Strip:  RT24 Models - 1.625" W x 62" L x 1.5" Weight = 4.8 lb.
  • Temperature Range:  5º to 35º C
  • Humidity Range:  5% to 95% R.H., non-condensing
  • Agency Listings:
    • ETL and cETL (UL 1449, Third Edition, Type 3 Surge Protective Device; UL 1283; CSA C22.2 No.8-M1986, R2004).
    • Listed as base models SX-1115-RT, SX-1120-RT.
