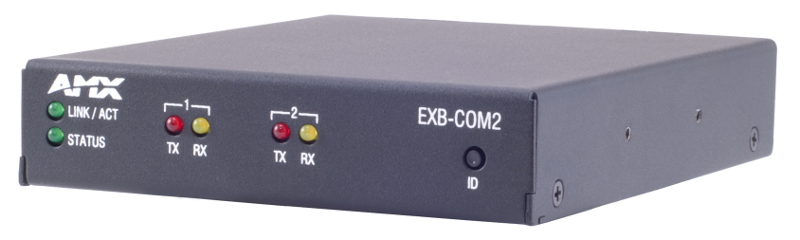

AMX EXB-COM2 ICSLan Serial Interface, 2 Ports

AMX offers the FG2100-22 (also known as EXB-COM2), an ICSLan Serial Interface with two ports. ICSLan Device Control Boxes allow users to manage devices remotely from a Controller over an Ethernet network. This provides a beautifully simple method for a centralized control environment allowing users to share a controller among multiple smaller rooms versus controllers in every room. Ethernet has become the industry standard for connecting devices and the ICSLan Device Control Boxes make it easy to introduce control to equipment such as projectors located extended distances from a Controller. Additionally, the number of ports on an AMX Controller can be expanded when all ports are fully populated. Because they employ Native NetLinx technology, it is extremely simple to add an EXB to an AMX installation.

Common applications include conference rooms, classroom or auditoriums where a single controller is used to manage multiple devices such as projectors spread throughout a facility or to add additional ports to an AMX Central Controller.

AMX FG2100-22 Features:

• Enable Ports over Ethernet – Provides a future proofsolution to add ports anywhere
• Easy to Program – Programming is identical to anyother device ports on the Controller
• Power over Ethernet – Eliminate the need for a powersource at the install location
• Small Form Factor – Compact design makes it easy tohide for a clean installation
• NetLinx Studio Tools – Configuration tools make ICSLan Device ControlBoxes easy to deploy

AMX FG2100-22 Specifications:

• Dimensions (HWD): 1" x 4 3/8" x 5 1/8" (2.5 cm cm x11.1 cm x 13.00 cm)
• RU: 1
• Weight: 1 lb (454 g)
• Power:
  • PoE Powered - No local Power Supply needed
  • Power draw: 1.9 Watts
• Operation:
  • One RS-232/422/485 control port, supports XON/XOFF, CTS/RTS, 300 - 115.2K Baud
  • One RS-232 control port, supports CTS/RTS, 300 - 115.2K Baud
• Status LEDs:
  • 1 Green LED shows connection and power status
  • 1 Green LED shows Ethernet Link status and activity
  • 2 Red LEDs (1 per COM port) show serial transmit (TX) data activity
  • 2 Yellow LEDs (1 per COM port) show serial receive (RX) data activity
• Connections / Wiring:
  • 1 RJ-45 ICS-LAN Ethernet Connector
  • 1 10-Pin 3.5mm captive-screw terminal (RS-232/422/485 port)
  • 1 5-Pin 3.5mm captive-screw terminal (RS-232 port)
• Regulatory Compliance:
  • FCC Part 15 Class B
  • CE EN 55022
  • CE EN 55024
  • CE EN 60950-1
  • IEC 60950-1
  • C-Tick CISPR 22 Class B
  • VCCI CISPR 22 Class B
  • UL 60950-1
