AMX DGX-I-DXL Enova DGX DXLink Input Board

OUR PART #: FG1058-570 MFR #: FG1058-570-FX

Copied to clipboard

AMX's FG1058-570 is a HDCP compliant twisted pair cable input board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. ...Read more

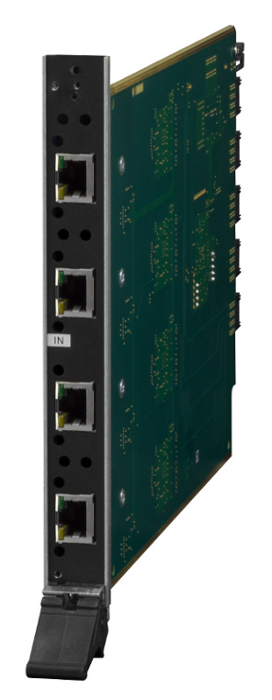

AMX DGX-I-DXL Enova DGX DXLink Input Board Image 1
AMX DGX-I-DXL Enova DGX DXLink Input Board
Our Price: $2,344.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$66/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

AMX's FG1058-570 is a HDCP compliant twisted pair cable input board for the Enova DGX 8, 16, 32 and 64 Digital Media Enclosures. It has four connections per board designed to receive audio and video from DXLink Twisted Pair Transmitters while passing bi-directional control and Ethernet signals over one standard twisted pair cable up to 100m. DXLink Power is available from the DXLink Input Board to power DXLink Twisted Pair Transmitters.

Common ideal applications for the Enova DGX DXLink Twisted Pair Input Board is for when source devices are located up to 100 meters away from the Enova DGX Digital Media Switcher and need to be distributed throughout a commercial or residential environment.

AMX FG1058-570 Features:

  • Only One Cable – Receive audio and video whilepassing control, Ethernet and power over one twisted pair cable
  • Send HDMI signals up to 100 Meters – Extend the reachof the HDMI with HDCP signals far beyond the capabilities of typical HDMI cabling
  • Standard Twisted Pair Cable – Save time andeffort in installation by leveraging pre-existing cost effective twisted pair cable
  • Hot Swappable – Easily add or replace I/O boards atany time after deployment - the system automatically recognizes the newconfiguration and activates the boards
  • HDCP Compliant
  • Remotely Powered Transmitters - Power over DXLink* isavailable from the DXLink Input Board to power DXLink Transmitters
  • 3D Support - Pass through latest video formatsincluding 3D and Deep Color
  • Surround Sound Support - Pass through high definition surround soundincluding Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, DTS, 2 CH thorough8 CH L-PCM

AMX FG1058-570 Specifications:

  • Please check out the attached data sheet for this info.

Note:

*Power over DXLink to DXLink Transmitters must be supplied by one of the following DXLink Power sourcing devices: Enova DGX 8/16/32/64 Digital Media Switcher (with a DXLink Twisted Pair Input Board installed), Compatible Enova DVX All-In-One Presentation Switcher (3155HD, 3156HD or 2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Power over DXLink Controller. AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment. The DXLink Transmitter Module can also be powered via the included desktop power supply (ENERGY STAR® qualified) with power cord.
