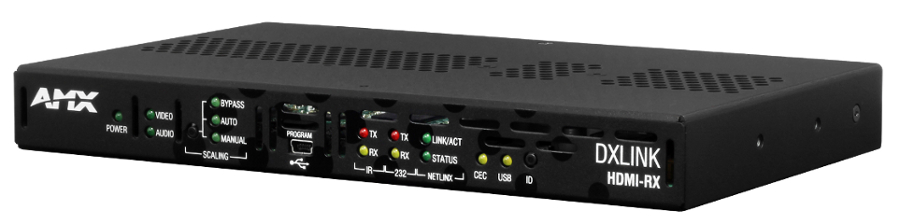

AMX FG1010-500
DXLink HDMI Receiver Module

OUR PART #:  FG1010-500

The DXLink™ HDMI Receiver from AMX features built-in SmartScale® Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically...
Learn More
Our Price: $1,240.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AMX FG1010-500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DXLinkâ„¢ HDMI Receiver from AMX features built-in SmartScale® Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio, video, control and Ethernet over one standard twisted pair cable up to 100 meters away from a compatible Enova DVX All-In-One Presentation Switcher, DXLink Transmitter Module or DXLink Wallplate; it accepts all this plus power over the same twisted pair cable when used in conjunction with the Enova DGX 8/16/32/64 Digital Media Switchers, Enova DVX-2150HD or DVX-2155HD. Mount the low-profile DXLink Receiver behind a display or above a ceiling mounted projector and control it using the built in RS-232 or IR ports. Plus monitor the connected display's settings, and send IR control signals back to the head end using the same twisted pair cable.

Common applications for the DXLink HDMI Receiver Module receives HDMI and control signals from a remote DXLink Transmitter Module, DXLink Wallplate, Enova DGX or compatible Enova DVX. The receivers built-in control ports can be used to control a destination device and the ICS Lan port provides IP an access point with used in conjunction with the Enova DGX or compatible Enova DVX.

NOTE: See Attached for Product Specifications

AMX FG1010-500 Features:

  • Only One Cable – Receive audio and video while passing control, Ethernet and power over one twisted pair cable
  • SmartScale Technology – Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutionsto support the least capable display in the system
  • Native NetLinx® Control Everywhere - Control connected destination devices using the built-in IR and RS-232 ports
  • Standard Twisted Pair Cable – Save time and effort in installation by leveraging cost effective twisted pair cable
  • HDCP Compliant
  • DXLink Direct Connection with DXLink Wallplates – When DXLink Wallplates are receiving Power over DXLink* from the PS-POE-AT-TC orPDXL-2, they can be connected directly to a DXLink
  • Receiver for a point-to-point solution

NOTE: * AMX only supports the following DXLink Power sourcing devices: Enova DGX 8/16/32/64 Digital Media Switcher, Compatible Enova DVX All-In-One Presentation Switcher (Enova DVX-2150HD or DVX-2155HD), PS-POE-AT-TC High Power PoE Injector or PDXL-2 Power over DXLink Controller. AMX only supports the use of these approved Power over DXLink solutions. Other third party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment. The DXLink HDMI RX can also be powered via the included desktop power supply (ENERGY STAR® qualified) with power cord
