TecNec HRT-VSA-UI-DP
Hall Research User Interface Decora Panel for VSA Systems

OUR PART #  HRT-VSA-UI-DP

Our Price: $384.75
List Price: $405.00
You save 5%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

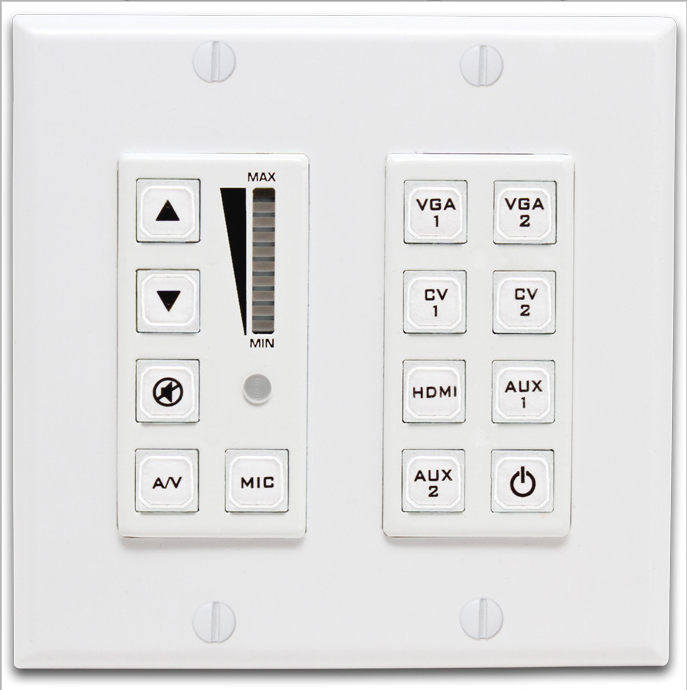

The Hall Research HRT-VSA-UI-DP is a user interface keypad for VSA System. Includes separate mic and source volume controls with LED bar indicator along with 8 custom programmable buttons can be configured to perform any system action or a combination of actions. Removable clear caps and pre-printed label sheet for customized labeling.

It includes a built-in IR receiver for relaying IR to the VSA system receiver as well as routing through a 2-wire output on the back of the panel. It also features an RS-232 port for controlling auxiliary devices. The VSA-UI-DP can be expanded to have an additional 8 buttons with the VSA-UI-8 USer Interface Expansion module.

The VSA-UI-DP Connects to VSA system receiver via single UTP cable. Power is also provided from the receiver so no complicated in-wall wiring necessary.

Included with the user interface keypad is a set of peel and stick labels for customizing button functions.

Hall Research HRT-VSA-UI-DP Features:

  • Connects to system receiver from up to 300 ft away via single Cat5 cable
  • Dedicated volume controls and 8 user programmable buttons
  • Volume level indicator with individual controls for mic and source audio
  • Built-in IR receiver for routing IR to system receiver
  • RS-232 and IR output for control of auxiliary devices
  • Removable clear caps and pre-printed label sheet for customized labels

Hall Research HRT-VSA-UI-DP Specifications:

  • Form Factor: Dual-gang Decora
  • Input: IR Receiver
  • Outputs:
    • 1x RJ45 (to receiver)
    • 1x RS-232
    • 1x IR
    • 1x expansion header (for VSA-UI-8)

TecNec HRT-VSA-UI-DP
Hall Research User Interface Decora Panel for VSA Systems

OUR PART #  HRT-VSA-UI-DP

Product Information:

The Hall Research HRT-VSA-UI-DP is a user interface keypad for VSA System. Includes separate mic and source volume controls with LED bar indicator along with 8 custom programmable buttons can be configured to perform any system action or a combination of actions. Removable clear caps and pre-printed label sheet for customized labeling.

It includes a built-in IR receiver for relaying IR to the VSA system receiver as well as routing through a 2-wire output on the back of the panel. It also features an RS-232 port for controlling auxiliary devices. The VSA-UI-DP can be expanded to have an additional 8 buttons with the VSA-UI-8 USer Interface Expansion module.

The VSA-UI-DP Connects to VSA system receiver via single UTP cable. Power is also provided from the receiver so no complicated in-wall wiring necessary.

Included with the user interface keypad is a set of peel and stick labels for customizing button functions.

Hall Research HRT-VSA-UI-DP Features:

  • Connects to system receiver from up to 300 ft away via single Cat5 cable
  • Dedicated volume controls and 8 user programmable buttons
  • Volume level indicator with individual controls for mic and source audio
  • Built-in IR receiver for routing IR to system receiver
  • RS-232 and IR output for control of auxiliary devices
  • Removable clear caps and pre-printed label sheet for customized labels

Hall Research HRT-VSA-UI-DP Specifications:

  • Form Factor: Dual-gang Decora
  • Input: IR Receiver
  • Outputs:
    • 1x RJ45 (to receiver)
    • 1x RS-232
    • 1x IR
    • 1x expansion header (for VSA-UI-8)
