Ace Backstage Co. 224SLBR
Double Wide Stage Pokcet with Solid Brass Lid, Trim Bezel and Brushed Finish

OUR PART #:  224SLBR

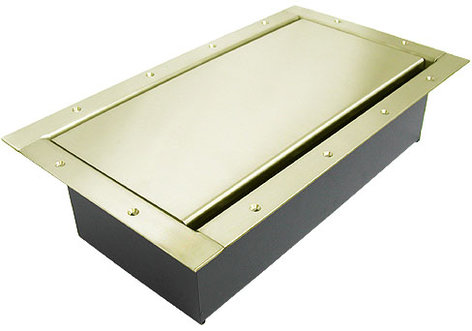

Ace Backstage's 224SLBR Double Wide Stage Pocket is a standard general use vertical slant panel flush stage pocket with a solid brass lid and brushed finish.
Learn More
Our Price: $1,151.39
List Price: $1,447.11
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. 224SLBR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Ace Backstage's 224SLBR Double Wide Stage Pocket is a standard general use vertical slant panel flush stage pocket with a solid brass lid and brushed finish. The Double Wide Stage Pocket is made of heavy duty steel and may be used to conceal audio, communications, control, data, electric AC power, switches, video, and voice connections etc. below the floor surface for easy access and to prevent connector damage. The Double Wide Stage Pocket has an extra large capacity inter-changeable panel system which permits easy custom connector/panel configurations.

The Double Wide Stage Pocket has the panel capacity for either:

  • Four (4) PNL-100 Series CONNECTRIX Panels or
  • Two (2) PNL-120 Series CONNECTRIX Panels or
  • Four (4) PSW-100 Series Switchcraft® Panels or
  • Four (4) PE Series Single Gang Electric Duplex Switch Box Panels or
  • Two (2) FP3E Series Triple Gang Electric Duplex Switch Box Panels

The Double Wide Stage Pocket has the connector capacity for either:

  • Twenty-Four (24) CONNECTRIX Connectors or
  • Twenty-Four (24) Neutrik Connectors or
  • Twenty-Four (24) Switchcraft Connectors or
  • Twelve (12) CONNECTRIX, Neutrik, or Switchcraft Connectors and (2) PE Electric Duplex Switch Box Panels

Utilizing Ace's CONNECTRIX System will allow mounting of up to 24 CONNECTRIX, Neutrik, Switchcraft, and/or Custom Connectors in the Double Wide Stage Pocket. All Ace Backstage Double Wide Stage Pockets are welded steel construction, with a 1/8" (nominally 10 ga. (.135")) thick CRS steel Lid, a 1/8" (nominally 11 ga. (.120")) thick CRS steel Mounting Flange, and a 16 ga. (.062") thick Pocket Body. The Double Wide Stage Pocket resists bending under even the most severe stage loads.

Removable spring loaded hinge pins permits easy exchange of lids for carpet lids, locking lids, standard lids, and other custom application lids. A generous cable way slot of 3/8" x 16" permits easy cable exit from the stage pocket, even for large gauge cables. Two cableway slot channel closures closes the slot when not in use. The Double Wide Stage Pocket has an easy installation into 16.8" x 8.5" cutout in the stage floor. Open easy access from top or back of the Double Wide Stage Pocket to connector panels makes for easy installation.

A scratch/wear resistant finish, oven cured powder coat is electro-staticly applied inside and outside the entire Stage Pocket. Decorator neutral Antique Copper Vein or Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange as well as Solid Stainless Steel Lid and Mounting Flange are also available by special order. The Double Wide Stage Pocket's solid rubber Lid Stops cradle the lid to prevent lid rattle.

Ace's Standard Vertical Slant Panel Stage Pocket Systems offer connectivity Solutions with a flexible, reliable, and simplistic design. The flexible design of the Standard Vertical Slant Panel Stage Pocket Lid, Mounting Flange and Pocket Body along with Custom and Prefabricated Aluminum CONNECTRIX (Neutrik/Switchcraft combo cutout) Panels, Switchcraft Panels, and Ace Backstage's large selection of CONNECTRIX (Neutrik/Switchcraft combo cutout), Switchcraft, and Custom Connectors allow the Stage Pockets to be installed in many different applications. These applications include educational, institutional, and liturgical settings. Within these applications various audio, communications, control, data, electric AC power, video, and voice terminations are possible, allowing for a complete Stage Pocket System.
