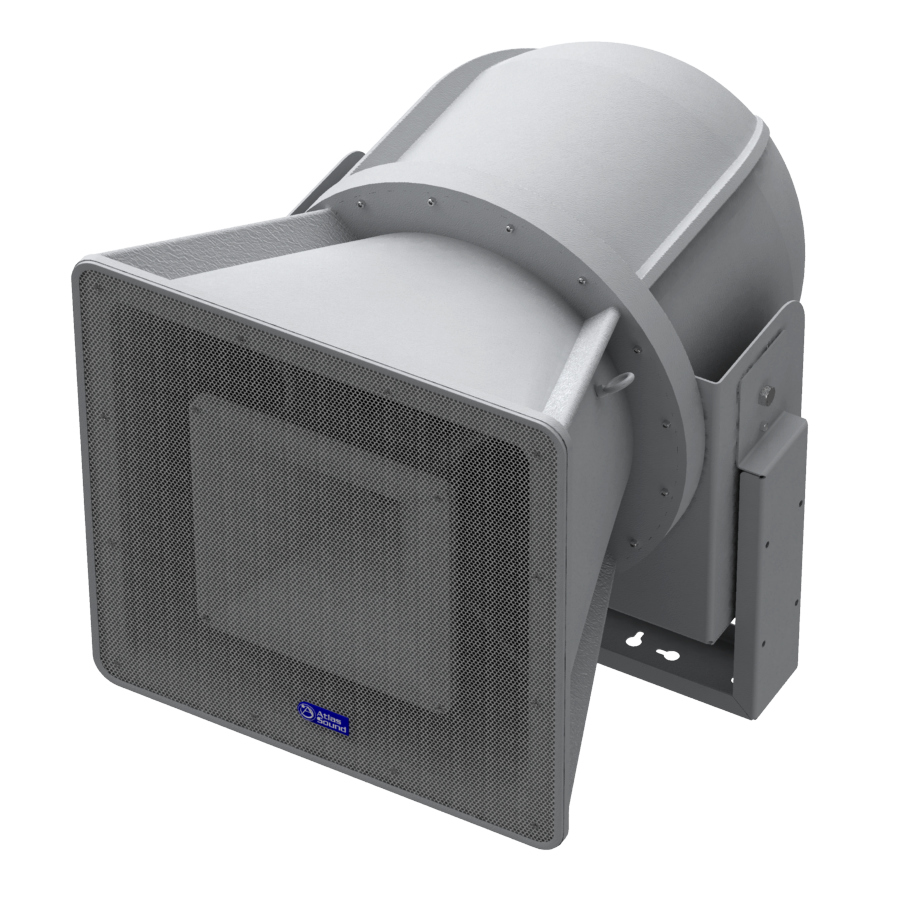

Atlas Sound AH66-15-BSG
15" 2-Way Stadium Horn with 65°x65° Dispersion Pattern

OUR PART #:  AH66-15-BSG

The Atlas Sound AH66-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction...
Learn More
Our Price: $1,452.99
List Price: $1,816.99
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound AH66-15-BSG
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound AH66-15-BSG "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

Weather resistant construction features of the AH66-15-BSG include a multiple screen configuration to prevent moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer.

A "weep" hole is included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

Atlas Sound AH66-15-BSG Features:

  • (3) Forged Eyebolts Also Included for Suspended Installation
  • Neutral Battleship Gray Finish
  • Maximum Output of 128dB (Rated Power @ 1M)
  • Heavy Duty Stainless Steel Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
  • Full Range Frequency Response of 75Hz - 14.5kHz
  • Efficiency Rating of 104dB (1W/1m)
  • Easy, Weather Resistant Connection via a Parallel 4-Pole Terminal Block Connector
  • Constant Directivity Design Offers Controlled Coverage of 65° Horizontal by 65° Vertical (2 kHz Octave Band)
  • 8-ohm Nominal System Impedance (70.7 Volt Operation via Optional Atlas Sound Model AF140 Transformer)
  • 250 Watts Power Handling

Atlas Sound AH66-15-BSG Specifications:

  • Power Rating:  250 Watts (53V) RMS
  • Frequency Response:  75 Hz - 14.5 kHz
  • Dispersion:  65° x 65°
  • Sensitivity:  104dB SPL (75Hz - 14.5kHz 1/3 octave bands)
  • Impedance:  8 Ohms
  • Height:  20 1/2" (52.07cm)
  • Width:  20 1/2" (52.07cm)
  • Depth:  32" (81.28cm)
  • Weight:  87.00 lbs (39.5kg)
