Datavideo Corporation HS-2200
HD/SD-SDI and HDMI Mobile Studio

OUR PART #:  HS-2200

The HS-2200 from DataVideo is a cost effective 6-input, 10-bit broadcast-quality hand carry mobile switcher...
Learn More
Our Price: $5,499.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation HS-2200
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

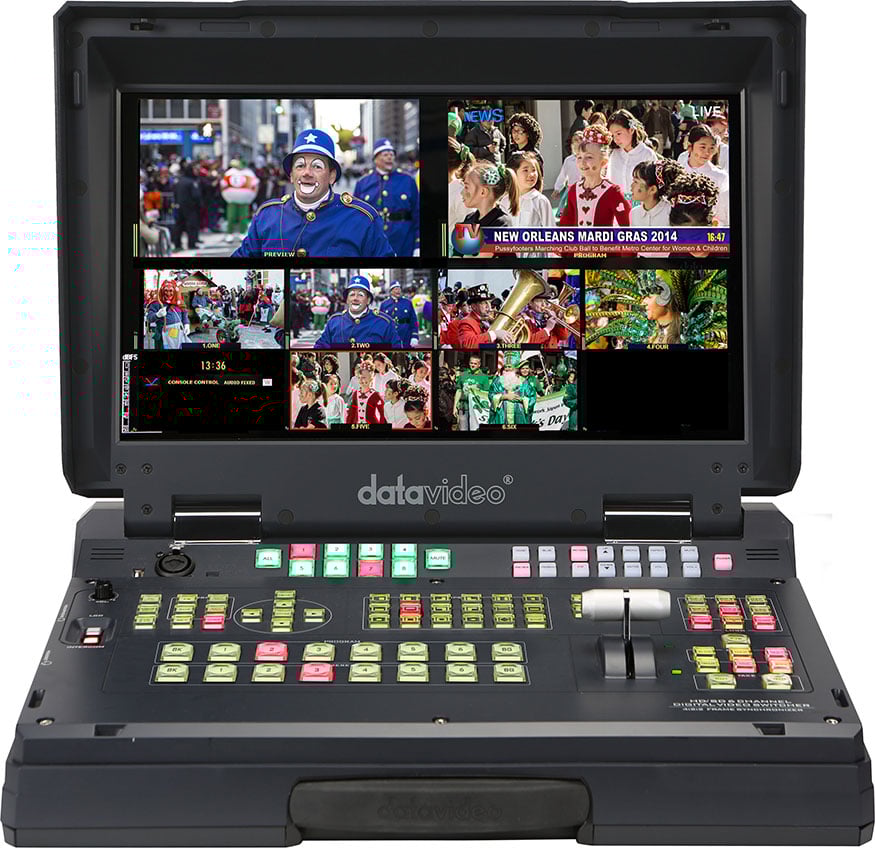

The HS-2200 from DataVideo is a cost effective 6-input, 10-bit broadcast-quality hand carry mobile switcher, which accepts 1920x1080i resolution from HD/SD-SDI and HDMI connections. It is designed for live events and TV programs that need to mix a variety of video and audio sources. The HS-2200 is a lightweight, portable and powerful featured mobile studio solution.

It includes a 17.3-inch video monitor for the multi-view as well as a built-in title creator for CG functionality. The HS-2200 comes with an 8-channel intercom system that comes with 4x belt packs, headsets, and tally lights for communicating with the camera crew. HS-2200 is great for outdoor productions, or on-the-go video studios, like conference centers. It’s also great for use in houses of worship and in schools.

HS-2200 Key Features

  • Built-in TC-200 Title Creator
    Connect a CG-200-equipped laptop to the HS-2200 to create CG.
  • 16 Wipe Effects
    HS-2200 is made with 16 wipe effects, as well as mix (dissolve).
  • Included Tally Light System
    HS-2200 includes 4x tally lights
  • Included Intercom System
    The included intercom system comes with headsets and belt packs for 4 camera persons.
  • Dual PiP
    HS-2200 comes standard with Dual Picture-in-Picture Functionality.
  • Freeze
    HS-2200 can perform Freeze Frame.
  • Lumakey
    HS-2200 supports Lumakey

HS-2200 Key Specifications:

Connections
Video

  • Inputs:
    • Input1: HD-SDI
    • Input2: HD-SDI
    • Input3: HD-SDI
    • Input4: HD-SDI
    • Input5: HD-SDI or HDMI
    • Input6: HD-SDI or HDMI
  • Output: 6x HD-SDI**, 2x HDMI (Multi-view)
        ** = Outputs can be Program, Program with Logo, Program With Logo and Titles, Preview, or Aux

Audio

  • Input: 4x XLR (mono)
  • Output: 2x XLR (mono)
  • Embedded audio is supported. Audio may be embedded into the SDI stream.

Control

  • 1x RS-232/422

Tally

  • 1x Tally Output

Supported Video Formats

  • 1080i 50/59.94/60
  • 720p 50/59.94/60

What’s in the Box

  • HS-2200 Mobile Studio
