Radio Design Labs D-SFRC8L
Audio Selector for SourceFlex Distributed Audio System


Our Price: $162.84
List Price: $217.83
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

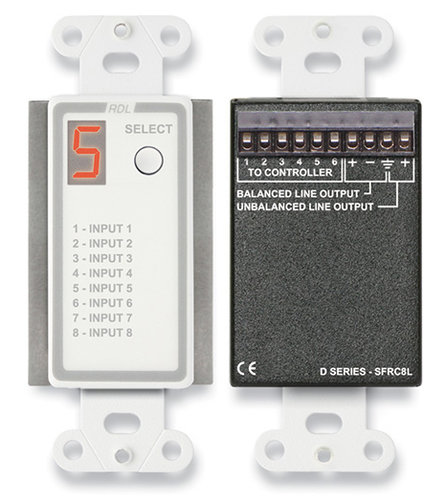

The Radio Design Labs D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier.

The balanced line output level is +4 dBu nominal. The unbalanced output is -10 dBV.

The D SERIES-SFRC8L is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8L is ideal for office distributed sound systems with background music and a paging source.

Radio Design Labs D-SFRC8L Features:

  • Single Room Listening Station with In-Wall Controls
  • Source Selection Pushbutton
  • Selection From up to 8 Audio Sources
  • Line-Level Audio Output
  • Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
  • Compatible with Other RDL Wall Plates and Controls
  • Ideal for Office Distributed Sound Systems with Music and Paging

Radio Design Labs D-SFRC8L Specifications:

  • Input:  10-position detachable terminal block
  • Display:  7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
  • Selector:  Momentary button channel SELECT
  • Frequency Response:  20 Hz to 20 kHz (+/- 0.1 dB)
  • THD+N:  < 0.1% (20 Hz to 20 kHz)
  • Noise:  < -85 dB (Below +4 dBu)
  • Control Signals:  dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
  • Line Outputs (2):  +4 dBu balanced, -10 dBV unbalanced, nominal
  • Power Requirement:  24 Vdc @ 30 mA, Supplied from SourceFlex controller
  • Ambient Operating Environment:  0° C to 50° C Maximum; 20° C Recommended
  • Dimensions (HxWxD):  4.13" x 1.7" x 2.05"  (10.49cm x 4.32cm x 5.21cm)
  • Package Type:  Cardboard Box
  • Package Dimensions:  3.625 x 4.625 x 2.125 in.
  • Shipping Weight:  0.44 lbs.
  • WEEE weight:  0.305 lbs.
