RDL D-SFRC8 Room Control Station for SourceFlex Distributed Audio System

OUR PART #: D-SFRC8 MFR #: D-SFRC8

Copied to clipboard

The Radio Design Labs D SERIES-SFRC8 Room Control Station is a SourceFlex listening station for wall mounting in a room... ...Read more

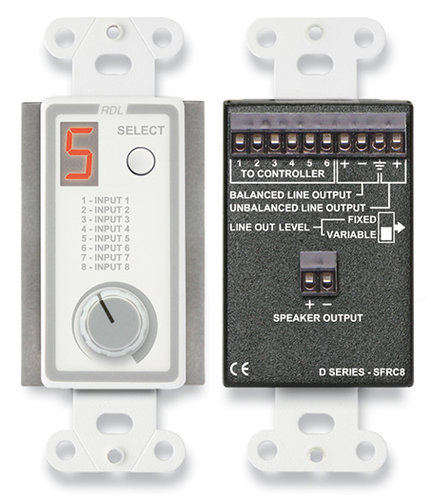

RDL D-SFRC8 Room Control Station For SourceFlex Distributed Audio System Image 1
RDL D-SFRC8 Room Control Station For SourceFlex Distributed Audio System
Our Price: $313.76
List Price: $418.35
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$9/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Radio Design Labs D SERIES-SFRC8 Room Control Station is a SourceFlex listening station for wall mounting in a room, providing source selection and volume control from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier. The amplified power output can deliver up to 3.5 Watts RMS into an 8 ohm Speaker.

A rear-panel switch set during installation causes the balanced line-level output to produce either a fixed +4 dBu or a variable level adjusted by the front-panel control. The unbalanced output is 12 dB below the balanced output level.

Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation.

The D SERIES-SFRC8 is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8 is ideal for office distributed sound systems with background music and a paging source. Installation is simple, requiring only wiring and an external 8 ohm Speaker for most installations.

Radio Design Labs D-SFRC8 Features:

  • Single Room Listening Station with In-Wall Controls
  • Source Selection Pushbutton
  • Volume Adjustment Using a Single-Turn Control
  • Selection From up to 8 Audio Sources
  • Line-Level Audio Output
  • Line Output Switchable Fixed or Variable
  • Variable Output Follows Front-Panel Level Control
  • 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • Speaker Output Connection on Detachable Terminal Block
  • Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
  • Compatible with Other RDL Wall Plates and Controls
  • Ideal for Office Distributed Sound Systems with Music and Paging

Radio Design Labs D-SFRC8 Specifications:

  • Input: 10-position detachable terminal block
  • Display: 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
  • Selector: Momentary button channel SELECT
  • Gain Adjustment: Single-turn audio taper (Front-panel)
  • Frequency Response: 20 Hz to 20 kHz (Line level, +/- 0.1 dB); 40 Hz to 20 kHz (Speaker, +/- 1 dB)
  • THD+N: < 0.1% (Line level, 20 Hz to 20 kHz); < 0.25% (Speaker, 1 kHz)
  • Noise: < -85 dB (Line level, below +4 dBu); < -80 dB (Speaker, below 1 W RMS)
  • Control Signals: dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
  • Line Outputs (2): +4 dBu balanced, -10 dBV unbalanced, nominal
  • Output Power: 3.5 W RMS (Max., into 8 ohms); 6.5 W RMS (Max., into 4 ohms)
  • Power Requirement: 24 Vdc @ 30 mA (Idle); 55 mA (1/8 power; normal voice or music); 225 mA (3.5 W into 8 ohms), Supplied from SourceFlex controller
  • Ambient Operating Environment: 0° C to 40° C Maximum; 20° C Recommended
  • Dimensions (HxWxD): 4.13" x 1.7" x 2.05" (10.49cm x 4.32cm x 5.21cm)
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625 x 4.625 x 2.125 in.
  • Shipping Weight: 0.44 lbs
  • WEEE weight: 0.305 lbs.
