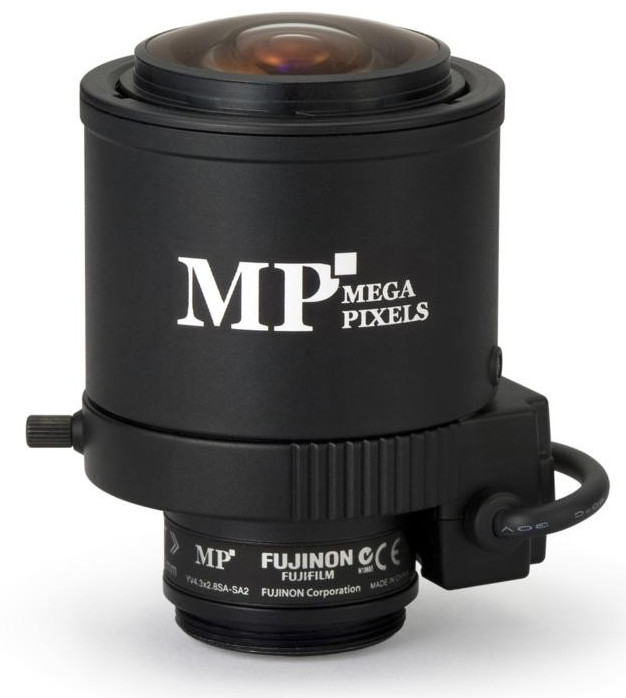

Fujinon Inc YV4.3X2.8SA-SA2
3 MP Varifocal Lens 2.8-12mm with DC Auto Iris

OUR PART #:  YV4.3X2.8SA

The Fujinon YV4.3X2.8SA-SA2 Varifocal lens is made for high image-quality monitoring with optical performance supporting 3 megapixels.
Learn More
Our Price: $85.33
List Price: $86.00
Write the first review.
Fujinon Inc YV4.3X2.8SA-SA2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Fujinon YV4.3X2.8SA-SA2 Varifocal lens is made for high image-quality monitoring with optical performance supporting 3 megapixels. The wide f2.8-12mm range accommodates various applications. It's designed to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, plus high refractive-index glass, and the built-in ND filter of T360, supports high sensitivity cameras.

Fujinon YV4.3X2.8SA-SA2 Features:

  • Telephoto Long Focal
  • Metal Mount
  • 230mm Long Cable
  • Wide Aperture Rate
  • Wide Angle

Fujinon YV4.3X2.8SA-SA2 Specifications:

  • Mount:  CS
  • Focal length:  2.8 mm - 12 mm (4.3x)
  • Focus:  Manual
  • Iris Range:  F1.4 - T360 (Equivalent to F360)
  • Iris:  Auto (DC Type) (*¹)
  • Zoom:  Manual
  • Back Focal Distance (In Air):  7.83 mm
  • Exit Pupil Position (From Image Plane):  455 mm
  • Object Dimensions at M.O.D., 4 : 3 Aspect Ratio:
    • 1/3"
      • Wide  753 mm × 476 mm
      • Tele  131 mm × 98 mm
    • 1/4"
      • Wide  476 mm × 329 mm
      • Tele  98 mm × 73 mm
  • Object Dimensions at M.O.D., 16 : 9 Aspect Ratio:
    • 1/3"
      • Wide  895 mm × 365 mm
      • Tele  143 mm × 80 mm
    • 1/4"
      • Wide  538 mm × 260 mm
      • Tele  106 mm × 60 mm
  • Angular Field of View, 4 : 3 Aspect Ratio:
    • 1/3"
      • Wide  100°02' × 74°03'
      • Tele  23°26' × 17°36'
    • 1/4"
      • Wide  74°03' × 55°06'
      • Tele  17°36' × 13°13'
  • Angular Field of View, 16 : 9 Aspect Ratio:
    • 1/3"
      • Wide  109°33' × 60°80'
      • Tele  25°31' × 14°23'
    • 1/4"
      • Wide  80°56' × 44°51'
      • Tele  19°10' × 10°48'
  • Focusing Range (From Front of the Lens):  8 - 0.3 m
  • Filter Thread:  -
  • Mass:  80 g
  • Coil Resistance:
    • Drive Coil:  190 Ohms
    • Damping Coil:  500 Ohms
  • Current Consumption:  23 mA (Max.) at DC 4V

Note:
    * With Metal Mount
    (*¹) When power is turned off, iris will automatically close.
