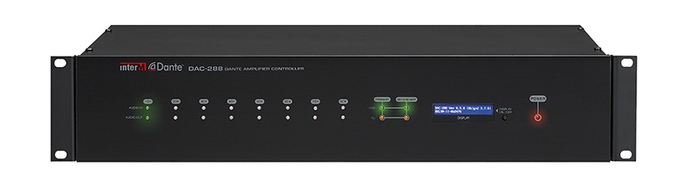

Inter-M Americas DAC-288 Digital Audio Transport System with Dante Network Interface

The Inter-M DAC-288 is a digital audio transport system utilizing Audinate’s Dante network audio solution. The DAC-288 connects to your network with a single Ethernet cable, and it offers eight channels (2 mic/line selectable) of line-level analogue in and out, using precision 24-bit A/D and D/A conversion for superb audio performance, and 119dB dynamic range at sample rates up to 192kHz. This product is used as the audio matrix, each having eight inputs, where you can send uncompressed audio with low latency using standard TCP/ IP Ethernet network. It’s remotely controlled via the network and can be placed anywhere in a facility. Data tunneling offers the transport of 8 contact closures in and 8 contact closures out together with either RS232 or RS485 serial data.

Applications

campus wide paging or messaging

background music

audio distribution for airports

railway stations

ground transportation

anywhere audio required to be transported easily over long distances.

Inter-M DAC-288 Features:

• 2U size
• 8 audio inputs ( LINE/MIC INPUT 1-2, LINE INPUT 3-8 )
• 8 audio outputs ( LINE OUTPUT 1-8 )
• 2 phantom switches and 2 volume controls (LINE/MIC INPUT 1-2)
• 1 source input (LINE/MIC INPUT 1 , volume control possible from PC)
• 8 separate input signal LED (AUDIO IN 1-8)
• 8 separate output signal LED (AUDIO OUT 1-8)
• 4 network status LED (PRIMARY, SECONDARY 10/100 LED, 1000M LED)
• Data tunneling
• 8 Contacts input / output dry contact
• Transfer data (422/232)VCA remote master volume level control
• 2 network input port and status LED
