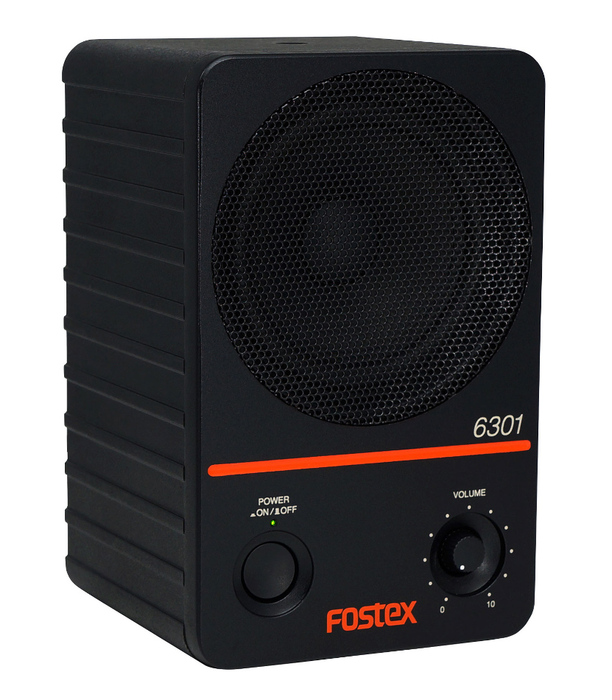

Fostex 6301NX
4" 20W Active Monitor with Transformer Balanced XLR Input

OUR PART #:  6301NX

The Fostex 6301 series of active monitors have been on the market since 1982 as the standard active monitor speaker in broadcast and production facilities...
Learn More
Our Price: $299.99
List Price: $329.99
You save 9%!
Write the first review.
Fostex 6301NX
Qty:
In Stock

Related Products

The Fostex 6301 series of active monitors have been on the market since 1982 as the standard active monitor speaker in broadcast and production facilities, and now Fostex has re-designed the 6301 series with the latest D-class power amplifier and a new driver unit featuing energy saving "auto stand-by" fuction.

The 6301NX model features a 3-pin transformer balanced XLR input and and a 1/4" TS unbalanced input.

Fostex 6301NX Features:

  • 20W Class D power amplifier for higher output levels and less power consumption with no heat sink
  • Dedicated 4" full range driver for clear audio reproduction
  • Flat panel design to avoid inadvertant power-off or level change
  • Auto Stand-By mode (compliant with ErP directive) for energy saving

Fostex 6301NX Specifications:

  • Enclosure Type:  Closed
  • Unit:  4" full-range
  • Frequency Response:  70 Hz - 15 kHz
  • Sound Pressure Level:  85dB / W (1m)
  • Max. SPL:  98dB
  • Inputs:
    • XLR-3-31 Transformer Balanced
    • 1/4" TS Phone, unbalanced
  • Input Impedance:
    • XLR:  10 kOhms or more
    • 1/4" TS:  10 kOhms or more
  • Rated Power Output:  20W
  • THD:  0.05% (1 kHz / 1W output)
  • Residual Noise:  -70dBV or less
  • Input Sensitivity:
    • XLR:  +4 dBu (1.2V RMS)
    • 1/4" TS:  -14 dBV (0.2V RMS)
  • Auto Stand-by:  Active after approx. 25 min. ofcontinuous input lower than the threshold level
  • Dimensions (WxHxD):  120mm x 189mm x 120mm
  • Weight:  2.2 kg
  • Power Requirement:  AC 100 - 240V (50/60 Hz)
  • Power Consumption:  10W (less than 0.5W in stand-by mode)
