JBL Control 60PS/T
8" Pendant Subwoofer with Crossover, 8 Ohm Or 70/100V Operation

OUR PART #:  CONTROL-60PS/T

Our Price: $332.00
List Price: $415.00
You save 20%!

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL Control 60PS/T
Qty:
In Stock

Similar Products

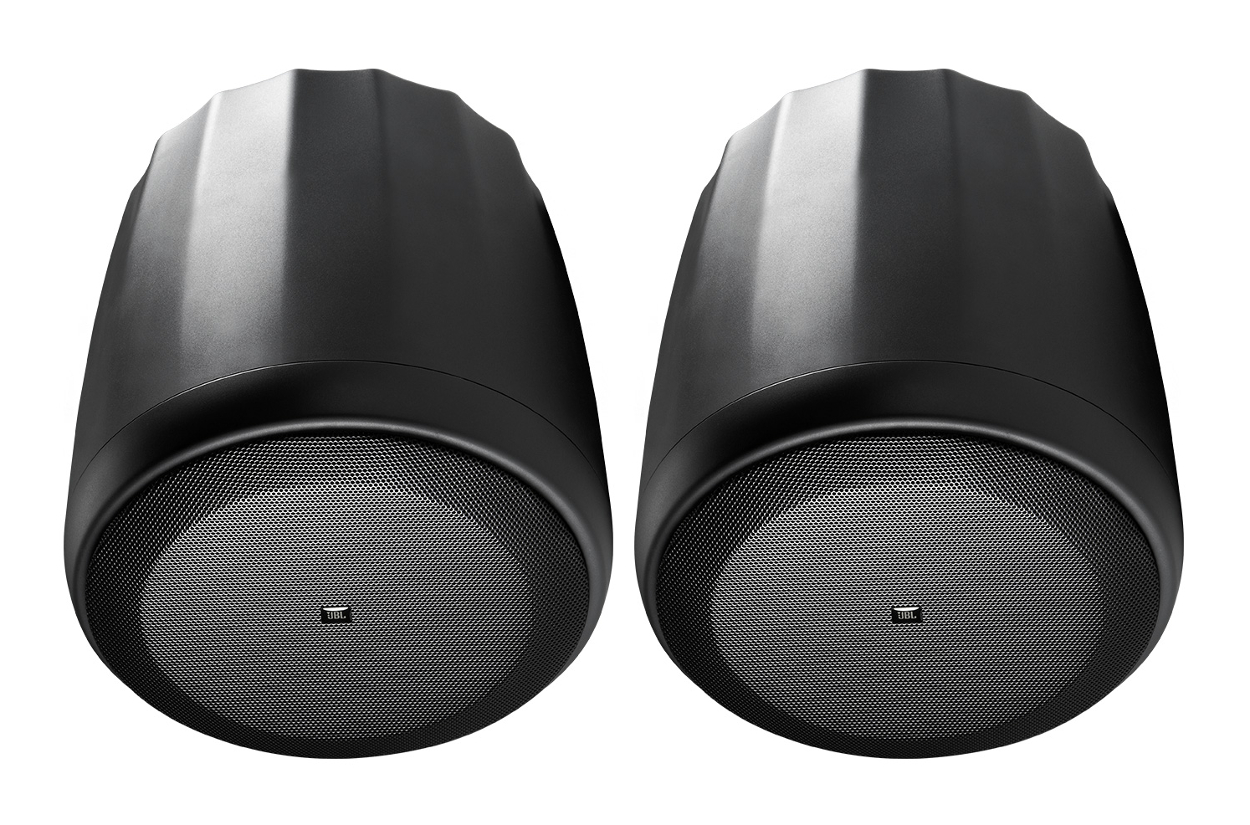

The JBL Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high duty cycle, working conditions.

Control 60PS/T is sold in pairs. For more information, please contact your Full Compass Sales Pro.

JBL Control 60PS/T Includes:

  • Two suspension cable systems (see “suspension”)
  • Six removable locking 2-pin euroblock connectors
  • Six rubber cover boots for euroblock connectors

JBL Control 60PS/T Features:

  • High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers
  • 8 in (200 mm) long-excursion driver
  • 8 ohm (150 Watt) and 70V/100V (100 Watt) operation
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp
  • Stylish design
  • UL listed (speaker and hanging cable system)

JBL Control 60PS/T Specifications:

  • Frequency Range (-10 dB):  42 Hz – 350 Hz
  • Frequency Response (+/- 3 dB):  55 Hz – 125 Hz
  • Power Capacity:
    • 300 Watts Continuous Program Power, 100 hrs
    • 150 Watts Continuous Pink Noise, 100 hrs
  • Nominal Sensitivity (2.83V/1m):  88 dB
  • Rated Maximum SPL:  107 dB @ 1 m (3.3 ft) average, 113 dB peak
  • Rated Impedance:  8 ohms
  • Transformer Taps:  110W, 55W, 30W (& 15W @70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
  • Transformer Insertion Loss:  0.98 dB @ 15W, 0.99dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
  • Standalone Hookup:  Connect to Input connector;built-in low-pass filter permanently engaged.
    • Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
  • Subwoofer-Satellite Hookup:  For either two orfour satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16)
  • Transducer:  8 in (200mm) polypropylene-coatedpaper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
  • Enclosure Material:  High impact polystyrene
  • Grille:  Zinc-plated steel grille withpowder-coat finish, foam backing (grille and grille backing are removable for painting)
  • Environmental:  Exceeds Mil Spec 810 forhumidity, salt spray, temperature & UV. IP44 capability per IEC 529 –splash-proof rating
  • Termination:  Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
  • Suspension:  Two identical suspensioncablesystems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99lb).
  • Safety Agency:  Speaker listed per UL1480(UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
  • Dimensions:
    • 13.1 in (333 mm) diameter, 13.6 in (344 mm) height to top of cabinet.
    • 14.5 in (369 mm) to top of suspension bracket.
  • Net Weight:  16.7 lbs (7.6 kg)
  • Shipping Weight:  38.7 lbs (17.6 kg) per pair-packed carton
  • Optional Accessories:  MTC-PC60 full top panel /terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
  • Colors:  Available in black or white, Paintable
