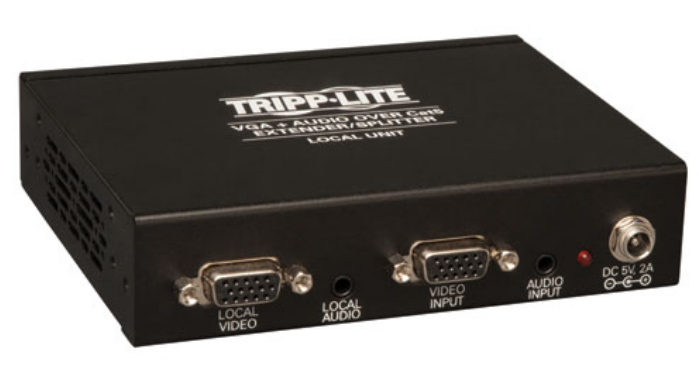

Tripp Lite B132-004A-2
4-Port VGA with Audio over Cat5 / Cat6 Extender Splitter

OUR PART #  B132-004A-2

Our Price: $154.70
List Price: $208.00
You save 26%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Tripp Lite's B132-004A-2 allows you to split a single VGA and Audio signal into 5 (1 local, 4 remote). Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).

The range and number of monitors can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

What's in the Tripp Lite B132-004A-2 Box:

  • 4 Port Extender/Splitter local (Transmitter) unit
  • 1 ft. VGA daisychain cable
  • Mounting hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
  • Owner's Manual

Tripp Lite B132-004A-2 Features:

  • Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
  • Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together
  • A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
  • Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • EDID copy feature ensures optimal display compatibility
  • The range and number of monitors can be further expanded by adding B132-110A repeater units
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location
  • A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Includes mounting hardwarethat allows unit to be wallmounted, rackmounted or pole mounted.
  • Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
  • Ideal for digital signage situations, such as retail, schools, churches, etc.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedulepurchases

Tripp Lite B132-004A-2 Specifications:

  • Overview:
    • Cable Type: CAT5/CAT5E
    • Display Style: Splitter
    • Model Type: VGA
  • Physical:
    • Shipping weight (lbs): 1.8 / 0.82kg
    • Unit Dimensions (HWD/in): 1.2 x 5.3 x 3.9 / 3.05 x 13.46 x 9.91cm
    • Unit weight (lbs): 0.85 / 0.39kg
    • Color: Black
  • Connections:
    • Connector A: HD15 (Female)
    • Connector B: (X4) RJ45 (Female)

NOTE: Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.

Tripp Lite B132-004A-2
4-Port VGA with Audio over Cat5 / Cat6 Extender Splitter

OUR PART #  B132-004A-2

Product Information:

Tripp Lite's B132-004A-2 allows you to split a single VGA and Audio signal into 5 (1 local, 4 remote). Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).

The range and number of monitors can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.

For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

What's in the Tripp Lite B132-004A-2 Box:

  • 4 Port Extender/Splitter local (Transmitter) unit
  • 1 ft. VGA daisychain cable
  • Mounting hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
  • Owner's Manual

Tripp Lite B132-004A-2 Features:

  • Splits a single VGA and Audio signal into 5 (1 local, 4 remote)
  • Increase the number of displays to up to 25 (1 local, 24 remote) by daisy-chaining up to six B132-004A-2 units together
  • A B132-100A or B132-100A-WP-1 remote receiver unit is required for each connected monitor
  • Extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6)
  • EDID copy feature ensures optimal display compatibility
  • The range and number of monitors can be further expanded by adding B132-110A repeater units
  • Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a monitor at each location
  • A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
  • Includes mounting hardwarethat allows unit to be wallmounted, rackmounted or pole mounted.
  • Up to three B132-004A-2 units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB Extender/Splitter 19 in. rackmount bracket
  • Ideal for digital signage situations, such as retail, schools, churches, etc.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedulepurchases

Tripp Lite B132-004A-2 Specifications:

  • Overview:
    • Cable Type: CAT5/CAT5E
    • Display Style: Splitter
    • Model Type: VGA
  • Physical:
    • Shipping weight (lbs): 1.8 / 0.82kg
    • Unit Dimensions (HWD/in): 1.2 x 5.3 x 3.9 / 3.05 x 13.46 x 9.91cm
    • Unit weight (lbs): 0.85 / 0.39kg
    • Color: Black
  • Connections:
    • Connector A: HD15 (Female)
    • Connector B: (X4) RJ45 (Female)

NOTE: Tripp Lite uses primary and third-party agencies to test its products for compliance with standards.
