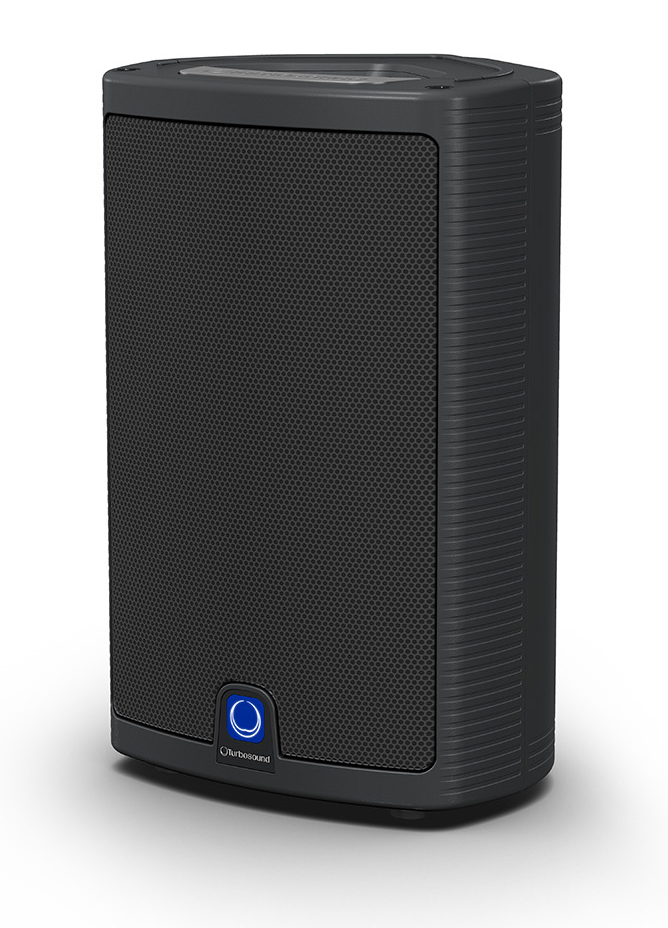

Turbosound Milan M10
10" 600W Peak Active Loudspeaker with KLARK TEKNIK DSP Technology


Our Price: $349.99
List Price: $402.49
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Turbosound Milan M10 is a portable 10” two-way powered loudspeaker featuring two independent input channels,  mic and line inputs, two band EQ, intelligent limiting, and a Mix Out function for connection to additional Milan loudspeakers for easy system expansion.

The Class-D amplifier is a true 2-channel unit with an integrated electronic crossover, allowing the HF and LF drivers to be powered separately without one being able to influence the sound of the other. Total output power is 600 watts peak, providing plenty of headroom to maintain good dynamic range so that transient signals are delivered effortlessly. The lightweight switch-mode power supply coupled with industry leading Klark Teknik digital signal processing, providing dynamic equalisation and sophisticated limiting functions to ensure optimum performance and long term reliability.

The two discrete input channels are each equipped with balanced, combination jack/XLR connectors and a level control, catering for a range of music sources from low impedance microphones, acoustic guitars and keyboards to mp3 players and mixing consoles, selectable via a mic/line slide switch.

Common to both channels are bass and treble controls with +/- 6 dB of cut or boost to allow the loudspeaker to be equalised to the venue. In addition, a low cut filter is provided at 100 Hz to shelve the low frequency response when used on the floor as a wedge monitor, or to ensure correct integration with subwoofers. A speech/music switch optimises the loudspeaker’s frequency response either for predominantly vocal material or for music programme. A Mix Out function sends the mix of both input channels post-EQ to additional Milan loudspeakers on a balanced male XLR for easy system expansion.

The trapezoidal enclosure is fabricated from high density polypropylene, and is extensively ribbed externally and internally to eliminate resonances and also to provide an attractive and durable cabinet finish. The symmetrical 43° side angles allow the loudspeaker to be conveniently used as a floor monitor. A recessed grab handle on the top is designed for easy lifting and carrying, while the dual angle pole mount socket allows the loudspeaker to be mounted on straight poles or speaker stands either vertically, or raised higher and angled down to optimise audience coverage. A total of six M10 rigging points are provided on the top and bottom of the cabinet to enable vertical or horizontal suspension in permanent installations using M10 shoulder eyebolts.

Mains power is connected via a non-locking IEC with integrated fuseholder. The illuminated front badge can operate in one of three possible modes: permanently on; permanently off; or to indicate the action of limiting.

Turbosound Milan M10 Features:

  • 2 way full range powered loudspeaker for portable PA and installation applications
  • 600 Watt power featuring KLARK TEKNIK Class-D technology
  • KLARK TEKNIK Digital Signal Processing for total system control
  • High excursion 10" low frequency driver with low mass voice coil for improved transient response
  • 1" high temperature dome compression driver with extended high frequency reproduction
  • Converging elliptical waveguide provides wide dispersion and excellent pattern control
  • Speech/music switch featuring optimised equalization for voice or music applications
  • Switchable 100 Hz high pass filter for subwoofer integration
  • Lightweight composite enclosure with black finish
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate audience coverage
  • Multiple internal rigging points for installation applications
  • 3-Year Warranty Program from Turbosound, warranty info can be found at www.music-group.com
  • Designed and engineered in England

Turbosound Milan M10 Specifications:

  • Dimensions (HxWxD):  20.6" x 12.9" x 11.6"(522mm x 329mm x 294mm)
  • Net Weight:  29.3 lbs (13.3 kg)
  • Components:  1 x 10" (254 mm) LF driver, 1 x 1"(25 mm) HF compression driver
  • Frequency Response:  55 Hz - 18 kHz +/- 3 dB
  • Dispersion:  90 °H x 60 °V @ -6 dB points
  • Calculated Max SPL:  126 dB peak
  • Construction:  Injection-moulded polypropylene enclosure. Recessed carrying handle. Integral dual-angle pole mount socket
  • Grille:  Powder coated galvanised perforated steel mesh with foam backing
  • Connectors:
    • Mic/Line input:  Combo jack/female XLR wired pin 2 hot
    • Mix out:  Male XLR wired pin 2 hot
    • IEC mains connector with integrated fuse holder
  • Rigging:  (6) M10 threaded internal rigging points
