Lowell LWR-1628
16Ru 28" Deep Wallmount Rack

OUR PART #:  LWR-1628

LWR Series racks are heavy duty, sectional wall-mount racks with a steel backbox and separate front cabinet...
Learn More
Our Price: $660.87
List Price: $975.10
You save 32%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell LWR-1628
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

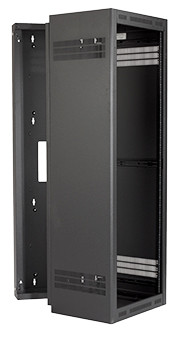

LWR Series racks are heavy duty, sectional wall-mount racks with a steel backbox and separate front cabinet, boxed separately so the back can be field-installed while the front is loaded at the shop. Includes adjustable front mounting rails, tapped 10-32 and integral rails on the top and bottom. Black powder epoxy finish. 7-35 rack units.

Lowell Mfg. LWR-1628 Features:

  • Backbox has center opening in rear to fit around wall protrusions. Embossed dimples and lacing points allow flush installation of board-mounted accessories.
  • Knockouts for wireless antennas and conduit.
  • Removable knockout panels on top and bottom.
  • Two keyed side locks.
  • Front cabinet mounts to backbox from the inside with self-seating, positive locking L-pins that can be repositioned to change swing orientation (right or left).
  • Roller closure seats cabinet securely in closed position without mandatory locking.
  • Open front with vents at top and bottom. Ready to mount optional front door.
  • Welded sides have top and bottom vents.
  • Adjustable mounting rails, tapped 10-32, can be repositioned anywhere along side rail supports. Printed RU scale facilitates gear mounting.
  • Integral top and bottom rails on EIA spacing for mounting or lacing.
  • EIA, TIA, RoHS compliant, UL Listed
  • Made in the USA with certified U.S. steel

Lowell Mfg. LWR-1628 Specifications:

  • Load Capacity: 200 lbs.
  • RU: 16
  • Overall Depth: 23.03"
  • Useable Depth: 20"
  • Overall Height: 34.125"
  • Overall Width: 23.06"
