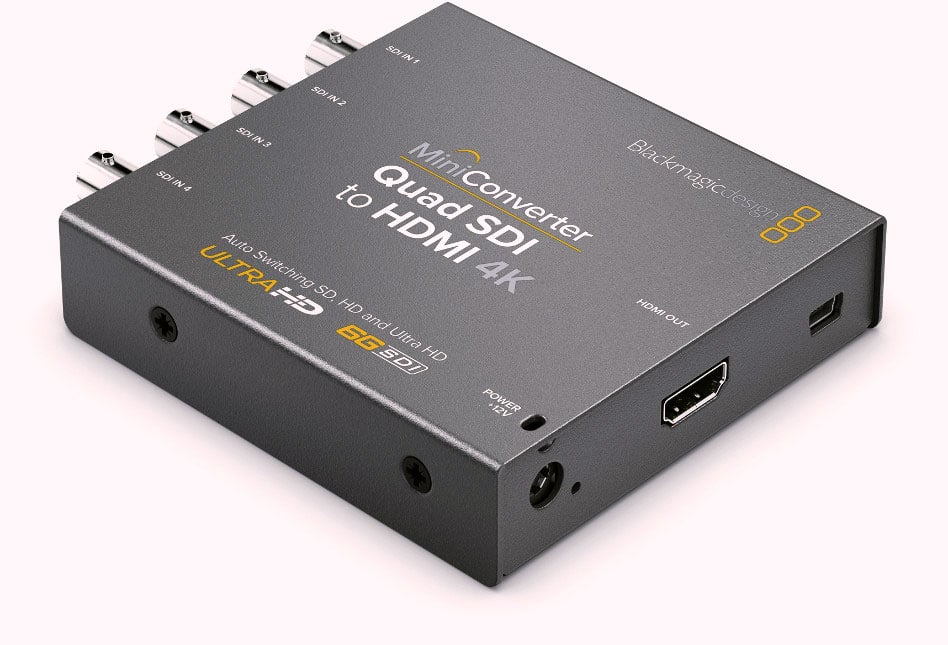

Blackmagic Design CONVMBSQUH4K2 Quad SDI to HDMI 4K Mini Converter

The Blackmagic Design Quad SDI to HDMI 4K 2 Mini Converter [model CONVMBSQUH4K2] allows you to connect Single Link 6G-SDI, Dual Link 3G-SDI, or Quad Link HD-SDI to the newest HDMI 4K projectors and televisions that support Ultra HD over a single HDMI link. It also features SD/HD and Ultra HD auto switching.

Specifications

• Connections
  • SDI Video Input:
    • 4 x 1.5G-SDI
    • 2 x 3G-SDI
    • 1 x 6G-SDI
  • SDI Video Output (4K HDMI output only)
  • HDMI: HDMI type A out.
  • Multi Rate Support: Auto detection of 6G-SDI or standard definition on Input 1.
  • Updates: USB
  • Reclocking: Yes
• Standards
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
  • 2K Format Support: 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25
  • 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24
  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B and SMPTE 425M.
  • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC, 625/25 PAL
  • SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
  • SDI Video Sampling: 4:2:2 and 4:4:4
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • SDI Color Precision: 4:2:2 and 4:4:4
  • SDI Color Space: YUV and RGB
  • SDI Auto Switching: Automatically detects SD, HD or 6G­-SDI.
  • HDMI Format Support: 625/25 PAL,525/29.97 NTSC, 525/23.98 NTSC,720p50, 720p60, 720p59.94, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24.
  • HDMI Color Space: YUV and RGB
  • HDMI Color Precision: 4:2:2 and 4:4:4
• Operating Systems
  • Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
  • Windows 7 or Windows 8.
• Software
  • Software Control: Mac OS X™ and Windows™ software upgrade via USB.
  • Internal Software Upgrade Via included updater application.
• Settings Control
  • Mini Switches.
• Power
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 5.2 Watts
  • Operational Voltage Range: 12 - 31V DC
• Environmental Specifications
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
• What's Included
  • Mini Converter Quad SDI to HDMI 4K
  • 12V universal power supply with international socket adapters
• Warranty
  • 3 Year Limited Manufacturer's Warranty.
