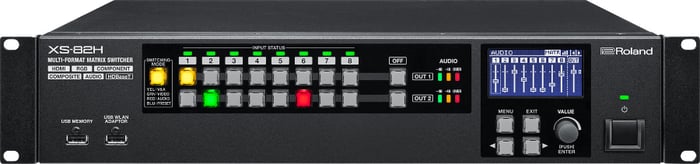

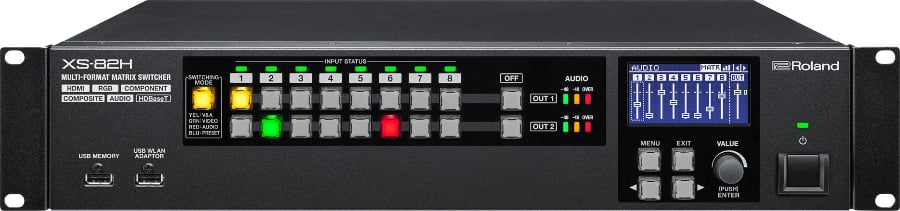

Roland System Group XS-82H
8-in x 2-out Multi-Format AV Matrix Switcher

OUR PART #:  XS-82H

Our Price: $4,995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Roland System Group XS-82H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The XS-82H from Roland is part of their XS Series of Multi-Format Matrix Switchers designed for fixed installations requiring high-quality integrated video and audio conversion and switching.

The series is very adaptable. This particular unit supports 8 HDMI, RGB/Component/S-video/Composite inputs and 2 HDMI or HDBaseT outputs with scalers to support picture-in-picture, resizing, rotating, and flipping. Audio can be embedded into outputs via 8 stereo audio inputs (2 mic) and/or HDMI audio as well as de-embedded on output. Additional features include iPad control, EDID emulation and HDCP management.

It's ideal for many applications, including: conference rooms, education, 4K switching to 1080p, performing art centers, churches, convention centers, and teleconferencing.

Roland XS-82H Includes:

  • XS-82H unit
  • Power Cord
  • Captive Screw Connectors
  • Rubber Feet
  • Owner's Manual

Roland XS-82H Features:

  • Inputs: 8 HDMI and 8 RGB/Component/S-video/Composite analog video
  • Outputs: 2, 3, or 4 HDMI and 2, 3, or 4 HDBaseT (*Switchable HDMI or HDBaseT per output)
  • Support for maximum resolution of WUXGA and 1080p, with built-in scalers
  • (8) stereo line inputs (2 mic compatible with 48Vphantom) with built-in AD/DA conversion and embedded/de-embedded HDMI audio
  • 16-channel digital audio mixer with audio digital effects (HPF, 4-Band EQ, noise gate/expander, and compressor) and outputs delay
  • Support for RS-232C, network, and iPad control

Roland XS-82H Specifications:

Video

  • Processing: 4:4:4 (Y/Pb/Pr), 10-bit
  • Input Connectors:
    • HDMI : Type A (19-pin) x 8 (Input 1 to 8) *HDCP supported
    • RGB/Component/S-video/Composite : HD DB-15 type x 8 (Input 1 to 8)
  • Output Connectors:
    • HDMI : Type A (19-pin) x 2 (Output 1 to 2)
    • HDBaseT : RJ-45 x 2 (Output 1 to 2)
    • *HDCP supported
  • Input/Output Level and Impedance:
    • RGB/Component:
      • Level: 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
      • Impedance: 75 Ohms
    • Composite/S-video:
      • Level: 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
      • Impedance: 75 Ohms
  • Input Supported Formats:
    • HDMI: up to 1080p/59.94, up to 1920x1200/60
    • Component: up to 1080p/59.94
    • RGB: up to 1920x1200/60 *Reduced Blanking
    • Composite: 480i/59.94, 576i/50
    • S-video 480i/59.94, 576i/50
    • Still Image: Windows® Bitmap File (.bmp)
      NOTE: Maximum 1920 x 1200 pixels, 24-bit per pixel, uncompressed
  • Output Supported Formats:
    • HDMI: up to 1080p/59.94, up to 1920x1200/60
    • HDBaseT: up to 1080p/59.94, up to 1920x1200/60
  • Effects:
    • Transition: Cut
    • Composition: PinP
    • Others: Vertically flip, Horizontally flip, Rotated 90 degrees

Audio

  • Audio Processing:
    • Sampling Rate: 24-bit/48 kHz
  • Input Connectors:
    • Digital: HDMI Type A (19-pin) x 8
    • Analog: 5-pin terminal block connector x 8
  • Output Connectors:
    • Digital: HDMI Type A (19-pin) x 3
    • Analog: 5-pin terminal block connector x 3
  • Input Level and Impedance:
    • Ch 1 to 2: -60 to +4dBu (Maximum: +22 dBu), 10 kOhms (Gain 0 to 23 dBu), 5 kOhms (Gain 24 to 64 dBu)
    • Ch 3 to 8: +4dBu (Maximum: +22 dBu), 8.5 kOhms
  • Output Level and Impedance:
    • Ch 1 to 4: +4dBu (Maximum: +22 dBu), 600 Ohms
  • Audio Formats:
    • HDMI: Linear PCM, 24-bit, 48kHz, 8ch
  • Audio Effects:
    • Input: High-pass filter, 4-band equalizer, Gate/Expander, Compressor
    • Output: 4-band equalizer, Gate/Compressor, Delay

Others connectors

  • RS-232C: D-Sub 9-pin type x 1
  • LAN: RJ-45 x 1
  • USB: A Type x 2 for USB memory, for WNA-1100RL

Display

  • 2-color LCD 128 x 64 dots

Power

  • Power Supply: AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
  • Power Consumption: 50w

Physical

  • Dimensions (WxDxH): 18-15/16" x 13-3/16" x 3-1/2"  (481 x 334 x 88mm)
  • Weight: 11 lbs, 11 oz (5.3 kg)
