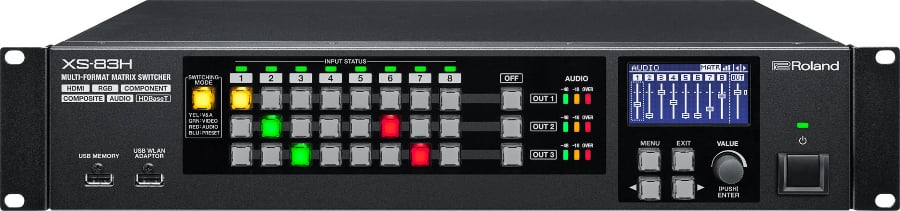

Roland Professional A/V XS-83H 8-In x 3-Out Multi-Format AV Matrix Switcher

OUR PART #: XS-83H

Copied to clipboard
Roland Professional A/V XS-83H 8-In X 3-Out Multi-Format AV Matrix Switcher Image 1
Roland Professional A/V XS-83H 8-In X 3-Out Multi-Format AV Matrix Switcher Image 2
Roland Professional A/V XS-83H 8-In X 3-Out Multi-Format AV Matrix Switcher Image 3
NcpVU2p8iUI
1 Video
Roland Professional A/V XS-83H 8-In X 3-Out Multi-Format AV Matrix Switcher
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Roland's XS-83H is part of their XS series of Multi-Format Matrix Switchers that's designed for fixed installations requiring high-quality integrated video and audio conversion and switching. Version 3.0 introduces powerful new features for live events and enhanced audio matrixing. A single unit solution for total control of video and audio that is flexible enough to meet the diverse needs of classrooms, conference rooms, live presentations and events.

The series is very adaptable, with this particular model supporting 8 HDMI, RGB / Component / S-video / Composite inputs and 3 HDMI / HDBaseT outputs with scalers to support picture-in-picture, resizing, rotating, and flipping. Audio can be embedded into outputs via 8 stereo audio inputs (2 mic) and/or HDMI audio as well as de-embedded on output. Additional features include iPad control, EDID emulation and HDCP management.

These units are ideal for many applications that include conference rooms, education, 4K switching to 1080p, performing art centers, churches, convention centers, and teleconferencing.

Includes:

  • XS-83H unit
  • Power Cord
  • Captive Screw Connectors
  • Rubber Feet
  • Owner's Manual

Features:

  • Seamless switching
  • Built-in PGM / PST mode for confident switching
  • Scaling guide view feature
  • Enhanced control of settings of PinP windows in multi-mode
  • Stabilized video output when switching modes
  • Matrix configuration for the audio mixer
  • Expanded lock-out functions
  • Support for maximum resolution of WUXGA and 1080p 8 digital inputs and 8 analog inputs 2, 3 or 4 outputs according to the application
  • Accommodate HDMI / HD component / RGB / composite / S-video and audio inputs
  • Built–in scalers and video processor enable split-picture and compositing function
  • Dissolve transition and PGM / PST mode in Version 2.0 is ideal for live events
  • 16 channel stereo digital audio mixer with 8 HDMI inputs and 8 analog inputs
  • Direct control via the iPad application XS-80 Remote

Roland XS-83H Specifications:

  • Video
    • Processing: 4:4:4 (Y/Pb/Pr), 10-bit
    • Input Connectors:
      • HDMI : Type A (19-pin) x 8 (Input 1 to 8) *HDCP supported
      • RGB/Component/S-video/Composite : HD DB-15 type x 8 (Input 1 to 8)
    • Output Connectors:
      • HDMI : Type A (19-pin) x 2 (Output 1 to 3)
      • HDBaseT : RJ-45 x 2 (Output 1 to 3)
      • *HDCP supported
    • Input/Output Level and Impedance:
      • RGB/Component:
        • Level: 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
        • Impedance: 75 Ohms
      • Composite/S-video:
        • Level: 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p(chroma, PAL)
        • Impedance: 75Ω
      • Input Supported Formats:
        • HDMI: up to 1080p / 59.94, up to 1920 x 1200 / 60
        • Component: up to 1080p / 59.94
        • RGB: up to 1920 x 1200 / 60 *Reduced Blanking
        • Composite: 480i / 59.94, 576i / 50
        • S-video 480i / 5.94, 576i / 50
        • Still Image: Windows® Bitmap File (.bmp)
        • NOTE: Maximum 1920 x 1200 pixels, 24-bit per pixel, uncompressed
      • Output Supported Formats:
        • HDMI: up to 1080p / 59.94, up to 1920 x 1200 / 60
        • HDBaseT: up to 1080p / 59.94, up to 1920 x 1200 / 60
      • Effects:
      • Transition: Cut
      • Composition: PinP
      • Others: Vertically flip, Horizontally flip, Rotated 90°
    • Audio
      • Audio Processing:
        • Sampling Rate: 24-bit / 48kHz
      • Input Connectors:
        • Digital: HDMI Type A (19-pin) x 8
        • Analog: 5-pin terminal block connector x 8
      • Output Connectors:
        • Digital: HDMI Type A (19-pin) x 3
        • Analog: 5-pin terminal block connector x 3
      • Input Level and Impedance:
        • Ch 1 to 2: -60 to +4dBu (Maximum: +22dBu), 10kΩ (Gain 0 to 23 dBu), 5kΩ (Gain 24 to 64dBu)
        • Ch 3 to 8: +4dBu (Maximum: +22dBu), 8.5kΩ
      • Output Level and Impedance:
        • Ch 1 to 4: +4dBu (Maximum: +22dBu), 600Ω
      • Audio Formats:
        • HDMI: Linear PCM, 24-bit, 48kHz, 8ch
      • Audio Effects:
      • Input: High-pass filter, 4-band equalizer, Gate / Expander, Compressor
      • Output: 4-band equalizer, Gate/Compressor, Delay
    • Others connectors
    • RS-232C: D-Sub 9-pin type x 1
    • LAN: RJ-45 x 1
    • USB: A Type x 2 for USB memory, for WNA-1100RL
  • Display
    • 2-color LCD 128 x 64 dots
  • Power
    • Power Supply: AC115V, AC117V, AC220V, AC230V, AC240V (50 / 60Hz)
    • Power Consumption: 50W
  • Physical
    • Dimensions (WxDxH): 18-15/16" x 13-3/16" x 3-1/2" (481 x 334 x 88mm)
    • Weight: 11lbs, 11oz (5.3kgs)
