West Penn D440-1000
1000' 18AWG 2-Pair Wire

OUR PART #  D440-1000

Our Price: $356.81
List Price: $597.00
You save 40%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

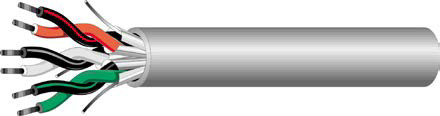

D440 is 18 AWG.- 2 PAIR Stranded tinned copper conductors, individually shielded with an overall jacket.

West Penn Wire D440-1000 Applications:

  • Indoor for:
    • Intercom
    • Security
    • Sound
    • Audio
    • Background Music
    • Power Limited Control Circuits

West Penn Wire D440-1000 Specifications:

  • Conductor: 18 AWG Tinned Copper
  • Stranding: 7x26
  • Insulation Material: Polyolefin
  • Insulation Thickness: 0.006'' Nom.
  • Number of Conductors: 4 (2 Pair)
  • Shield Each Pair: 100% Aluminum Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.025'' Nom.
  • Overall Cable Diameter: 0.268'' Nom.
  • Approximate Cable Weight: 47 Lbs/1M' Nom.
  • Flame Rating: UL 1685

Electrical & Environmental Properties:

  • Temperature Rating: -20°C To +60°C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 42 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz: 76 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 6.6 Ohms/1M' Nom.
  • Insulation Colors: Black/Red-Red, Black/White-White
  • Jacket Color: Gray
  • RoHS Compliant: Y

Mechanical Properties:

  • Max. Recommended Pull Tension: 100 Lbs.
  • Min. Bend Radius (Install): 2.7”

West Penn D440-1000
1000' 18AWG 2-Pair Wire

OUR PART #  D440-1000

Product Information:

D440 is 18 AWG.- 2 PAIR Stranded tinned copper conductors, individually shielded with an overall jacket.

West Penn Wire D440-1000 Applications:

  • Indoor for:
    • Intercom
    • Security
    • Sound
    • Audio
    • Background Music
    • Power Limited Control Circuits

West Penn Wire D440-1000 Specifications:

  • Conductor: 18 AWG Tinned Copper
  • Stranding: 7x26
  • Insulation Material: Polyolefin
  • Insulation Thickness: 0.006'' Nom.
  • Number of Conductors: 4 (2 Pair)
  • Shield Each Pair: 100% Aluminum Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.025'' Nom.
  • Overall Cable Diameter: 0.268'' Nom.
  • Approximate Cable Weight: 47 Lbs/1M' Nom.
  • Flame Rating: UL 1685

Electrical & Environmental Properties:

  • Temperature Rating: -20°C To +60°C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 42 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz: 76 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 6.6 Ohms/1M' Nom.
  • Insulation Colors: Black/Red-Red, Black/White-White
  • Jacket Color: Gray
  • RoHS Compliant: Y

Mechanical Properties:

  • Max. Recommended Pull Tension: 100 Lbs.
  • Min. Bend Radius (Install): 2.7”
