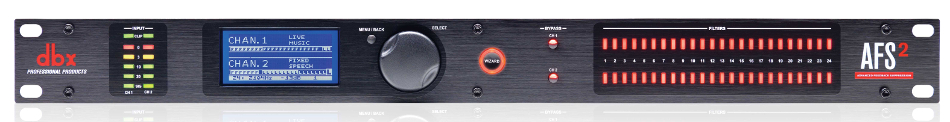

DBX AFS2 2-Channel Advanced Feedback suppressor

OUR PART #: AFS2 MFR #: DBXAFS2-V

Copied to clipboard

The dbx AFS2 Advanced Feedback Suppression processor has been completely re-designed to take the foundation of the best selling AFS224 and bring it to the next level. ...Read more

DBX AFS2 2-Channel Advanced Feedback Suppressor Image 1
DBX AFS2 2-Channel Advanced Feedback Suppressor Image 2
DBX AFS2 2-Channel Advanced Feedback Suppressor
Our Price: $419.00
List Price: $520.98
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$12/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The dbx AFS2 Advanced Feedback Suppression processor has been completely re-designed to take the foundation of the best selling AFS224 and bring it to the next level. The AFS2 now offers the highly-intuitive set-up Wizard function that takes all of the guesswork out of setting up any sound system in any room. The AFS2 also incorporates a completely re-designed Advanced Feedback Suppression module and full LCD display setup and monitoring.

With its powerful DSP module, the AFS2 provides all the processing and control necessary for both installation and live use. Most feedback eliminators only offer 10 or 12 filters, but the AFS2 offers a dedicated feedback-suppression processor that offers up to 24 filters per channel with filter Qs up to 1/80 of an octave. This means precise feedback control without destroying your music's perfect timbre. To achieve these staggering numbers dbx utilized their improved AFS technology that had previously only been available in extremely high-end products. In addition, the AFS2 also offers selectable modes, live filter lift, and types of filtration, which are all readily available via the intuitive user interface front panel.

Features

  • Wizard setup function
  • dbx's patented (Advanced Feedback Suppression) AFS technology
  • 24 programmable filters per channel
  • Stereo or dual independent channel processing
  • Live and Fixed filter modes
  • 24 LED for input channel filter metering
  • XLR and TRS inputs and outputs

Specifications

  • Number of Inputs: 2
    • Input Connectors: Female XLR and 1/4” TRS
    • Input Type: Electronically balanced/unbalanced, RF filtered
    • Input Impedance:
      • Balanced: 50 kΩ
      • Unbalanced: 25 kΩ
      • Max input line level: +20 dBu
      • CMRR: > 40 dB, typically > 55 dB @ 1 kHz
    • Number of Outputs: 2
    • Output Connectors: Male XLR and 1/4” TRS
    • Output Type: Electronically balanced/unbalanced, RF filtered
    • Output Impedance:
      • Balanced: > 120 Ω
      • Unbalanced: > 60 Ω
      • Max Output Level: +20 dBu
    • A/D Converter: dbx Type IV Conversion System
    • A/D Dynamic Range:
      • > 113 dB A-weighted, 22 kHz BW
      • >110 dB unweighted, 22 kHz BW
    • Type IV Dynamic Range:
      • > 119 dB, A-weighted, 22 kHz BW
      • > 117 dB, unweighted, 22 kHz BW
    • A/D Conversion: 24-bit
      • Sample Rate: 48 kHz
    • D/A Dynamic Range:
      • 112 dB A-weighted
      • 109 dB unweighted
    • D/A Conversion: 24-bit
    • Dynamic Range: 109 dB A-weighted, 106 dB unweighted, 22 kHz BW
    • THD+Noise: 0.003% typical at +4 dBu, 1 kHz
    • Frequency Response: 20Hz – 20kHz, +/- 0.5dB
    • Interchannel Crosstalk: > 80 dB typical
    • Crosstalk input to output: > 80 dB
    • Operating Voltage: 100-120VAC 50/60 Hz; EU: 220-240 VAC 50/60 Hz
    • Power Consumption: 9 W
    • Unit Weight: 4.5 lbs. (2.04 kg)
    • Dimensions (H x W x D): 1.75” x 19” x 5.75” (4.4 x 48.26 x 14.6 cm)
