Atlas IED AH66-12T-BSG 12" 2-Way Stadium Horn with 65°x65° Dispersion

OUR PART #: AH66-12T-BSG MFR #: AH66-12T-BSG

Copied to clipboard

Designed for applications where high SPL (sound pressure level), full-range, directional, audio is required, the AH66-12T-BSG delivers with maximum intelligibility. ...Read more

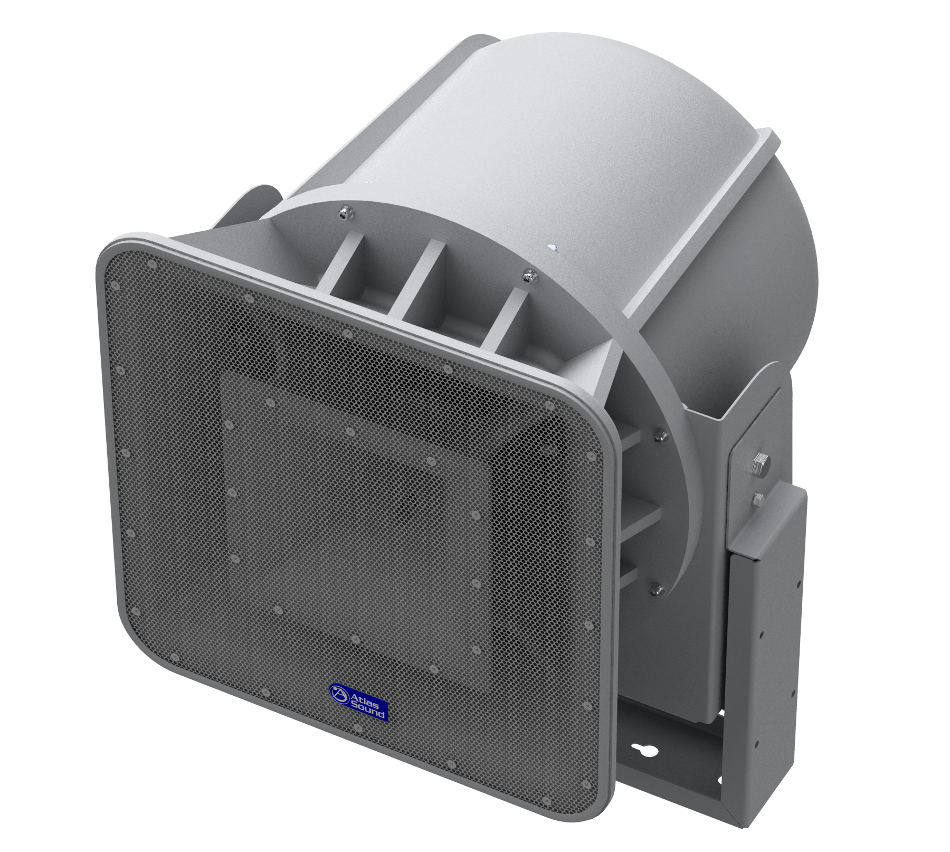

Atlas IED AH66-12T-BSG 12" 2-Way Stadium Horn With 65°x65° Dispersion Image 1
Atlas IED AH66-12T-BSG 12" 2-Way Stadium Horn With 65°x65° Dispersion Image 2
Atlas IED AH66-12T-BSG 12" 2-Way Stadium Horn With 65°x65° Dispersion
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Designed for applications where high SPL (sound pressure level), full-range, directional, audio is required, the AH66-12T-BSG delivers with maximum intelligibility.

This 12" 2-way horn has a weather-resistant design making it perfect for outdoor use. The AH66-12T-BSG even comes with a "weep hole" that allows any internal moisture to dissipate.

200 watts of power handling capability and a max output of 125dB mean the audio won't get lost in the roar of the crowd. The horn's directional 65° x 65° design allows critical communication to be focused on specific areas if needed.

Complete with a heavy-duty stainless steel mounting bracket makes installation on any flat surface quick and easy. Standard 8Ω or 70V operation (transformer built in) allows the AH66-12T-BSG to be used for new construction or retrofit installs.

Rise above the noise with the Atlas AH66-12T-BSG.

Applications

  • Sports facilities
  • Convention centers
  • Auditoriums

Features

  • (3) Forged Eyebolts Included for Suspended Installation
  • Neutral Battleship Gray Finish
  • 200 Watts Power Handling
  • Constant Directivity Design Offers Controlled Coverage of 65° Horizontal by 65° Vertical (2kHz Octave Band)
  • Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 65°H x 65°V HF Horn
  • Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Bottom of the Loudspeaker
  • Efficiency Rating of 102dB (1 Watt/1 Meter)
  • Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
  • Includes a Built-In, High Efficiency 60 Watt 70.7V Transformer
  • Maximum Output of 125dB (Rated Power @ 1M)

Specifications

  • Power Taps: 7.5, 15, 30, and 60 Watts & 8 Ohms
  • Driver Type: 1" HF and 12" LF
  • Dispersion: 65° x 65°
  • Power Rating: 200 Watts
  • Sensitivity: 102dB SPL (70Hz to 17kHz 1/3 octave bands)
  • Frequency Response: 80Hz - 15kHz (+/- 5dB)
  • Height: 23.88" (60.65cm)
  • Width: 21.41" (54.38cm)
  • Depth: 22.57" (57.32cm)
  • Weight: 82.00 lbs (37.19 kgs)
