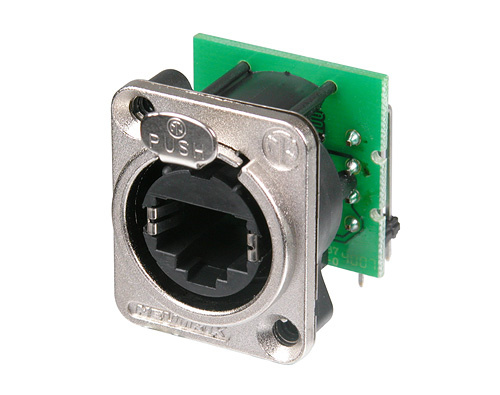

Neutrik NE8FDH-C5e
etherCON CAT5e D Shape Receptacle

OUR PART #:  NE8FDH-C5E

The Neutrik NE8FDH-C5e is a horizontal C5e component compliant PCB panel mount RJ45 receptacle.  D-shape metal flange with latch lock.  Max.
Learn More
Our Price: $10.66
List Price: $15.27
Save up to 41% when you order by quantity!
  • Buy 25: $9.63 each.
  • Buy 50: $9.29 each.
  • Buy 100: $8.94 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8FDH-C5e
Qty:
Similar Products

The Neutrik NE8FDH-C5e is a horizontal C5e component compliant PCB panel mount RJ45 receptacle.  D-shape metal flange with latch lock.  Max. panel thickness: 4 mm

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications.  The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.  The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.


Neutrik NE8FDH-C5e Features:

  • Accommodates NE8MC* or any standard RJ45 plug
  • Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Ground-panel connection

Neutrik NE8FDH-C5e Specifications:

  • Electrical:
    • Contact resistance: < 10 mOhm (inner)
    • Dielectric strength: 1 kV dc
    • Frequency range: 1 - 100 MHz
    • Insulation resistance: > 0.5 GOhm
    • Rated current per contact: 1.5 A
    • Rated voltage: 50 V
    • Transmission performance: CAT 5e
    • Standard compliance: TIA/EIA 586B, IEC11801
  • Mechanical:
    • Insertion force: </= 20 N
    • Withdrawal force: </= 20 N
    • Lifetime: > 1000 mating cycles
    • Panel thickness: max. 4 mm 0.16'
    • Wiring: Horizontal PCB mount
    • Locking device: Latch lock
    • Chassis shape: D
  • Material:
    • Contact plating: 0.2 µm Au over Ni plating
    • Contacts: Bronze (CuSn8)
    • Insert: PBTP 15 % GR
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
  • Environmental:
    • Flammability: UL 94 V-0
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
