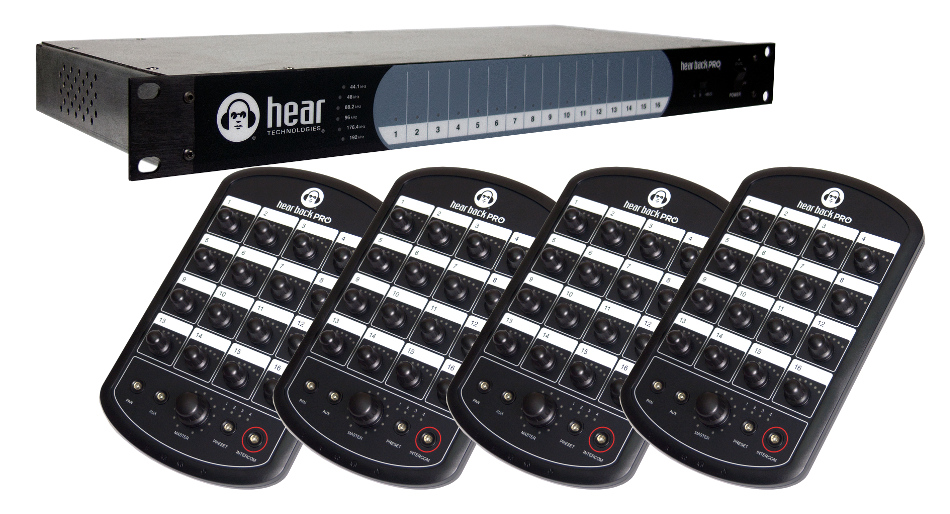

Hear Technologies Hear Back PRO Four Pack, Analog Input
Network-Based 16-Channel Personal Monitor Mixer System Package

OUR PART #:  PROHB4

The Hear Technologies Hear Back PRO system is the simplest, most affordable digital solution for providing everyone the mix they need so they can perform their best.
Learn More
Hear Technologies Hear Back PRO Mixer Rear View
Hear Technologies Hear Back PRO Mixer Front View
Hear Technologies Hear Back PRO Hub Rear View

Click a thumbnail to see more images. (5 total)

Our Price: $4,600.00
List Price: $5,850.00
You save 21%!
Write the first review.
Hear Technologies Hear Back PRO Four Pack, Analog Input
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Hear Technologies Hear Back PRO system is the simplest, most affordable digital solution for providing everyone the mix they need so they can perform their best. It's a completely modular and infinitely expandable system, allowing customization to suit your needs. This particular product is the Hear Back PRO Four Pack, Analog Input configuration, one of several versions of this system (other configurations sold separately).

With this system there is no learning curve, whether you've used a personal monitor mixer or not, this powerful system's simple layout makes getting the right mix a quick and easy experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.

Hear Back PRO system
Made up of 2 main components: the Hub and the Mixer. The modular Hub unit consists of 4 card slots which can be populated with any configuration of input and/or output cards to suit your exact needs. Each Hub has the ability to supply signal and power to as many as 32 Mixers (8 per Network Card), each over a single standard CAT5e/6 cable. With the onboard HBus In/Out ports, multiple hubs can be daisy-chained together, allowing for truly unlimited system expansion.

The standard Hub (included in the 4-pack) comes pre-loaded with one Network Card and two 8-channel Analog Input Cards which can accept input signals from an audio mixer via auxilliary, matrix, monitor and/or direct outputs.

The Hear Back PRO Mixer provides local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN), and can receive power and audio over a single Ethernet cable, up to 500ft from Hub to each Mixer.

http://www.heartechnologies.com/images/HBPRO-Analog-card.jpg

Hear Back PRO Analog card (included)
This card allows the HB PRO Hub to communicate with any professional analog audio equipment. It provides (8) balanced audio inputs using a standard Tascam DA-88-style pin-out on a DB25 connector.

http://www.heartechnologies.com/images/HBPRO-Network-card.jpg

Network Card for PRO HubNetwork card (included)
This card provides (8) RJ45 Gigabit Ethernet ports for connecting Hear Back PRO Mixers, PRO Mixer Distros, or other Hear Back PRO Hubs. Each of these ports provides PoE+ power and digital audio over a single Cat6 Ethernet cable that can be run up to 566ft.

Hear Technologies Hear Back PRO Four Pack Includes:

  • (4) PRO Mixers
  • (1) Standard PRO Hub Frame
  • (1) Network Card
  • (2) Analog Cards
  • (4) 50ft CAT6 Cables
  • (2) Analog DA-88 Style Cables

Hear Technologies Hear Back PRO Features:

Overall System

  • Large master knob controls overall main mix, AUX, and intercom levels independently
  • Volume and panning control of all 16 channels
  • Direct and immediate visual feedback of all 16 channels
  • Up to 8 pairs of stereo-linked channels
  • Support for sampling rates up to 192 kHz
  • Selectable XLR or 1/8" Mixer AUX input
  • Built-in intercom broadcasts the AUX source (mic, MP3 player, click, etc.)
  • Intercom auto adjusts its own level so even the quietest message never goes unheard
  • Modular I/O Hub card system lets you customize the system to match your configuration, and can adapt to your needs
  • Supports secondary power supply to provide redundancy and power to up to 32 Mixers
  • USB port on Hub makes updating firmware for future features and upgrades a simple drag-and-drop operation
  • Status indicating logos on Hub and Mixers make it easy to detect and diagnose problems, should they arise
  • Write session info and channel settings on storable Mixer overlays for an unlimited number of presets:
    • Instantly store and recall presets from memory with the push of a button
    • Most recent configuration is saved, even after power-down

Hub

  • Three switch selectable 16-channel input sources:
    • Input A (Slots 1 & 2)
    • Input B (Slots 3 & 4)
    • HBus
  • 24-bit Delta-Sigma A/D converters
  • Six user-selectable sample rates, indicated by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
  • Less than .25 milliseconds total system delay (latency) from analog input to output
  • 16 RGB LEDs intuitively display signal / peak levels for channel metering
  • Standard CAT5e cabling delivers power and signals to Mixers
  • Daisy-chain via HBus for very large systems
  • 1RU chassis
  • Modular I/O card-slot configurable mainframe
  • Gigabit Ethernet network fabric
  • 48V Power Over Ethernet supply

Mixer

  • Local control of up to 18 channels of audio (16 mono channels + AUX IN + Intercom IN)
  • Receive power and audio over one Ethernet cable, up to 500ft from Hub to each Mixer
  • Side-mounted card slot for future expansion
  • 24-bit Delta-Sigma D/A and A/D converters
  • Volume/panning/stereo link control of all 16 channels of audio
  • Store up to 4 recallable presets
  • Intercom allows communication to anyone with a Hear Back PRO Mixer
  • Selectable 1/8" TRS stereo unbalanced and XLR mono balanced (with 15V phantom power) AUX inputs:
    • Microphone input for crowd / ambiance mic or intercom use
    • Drum module / metronome or local mix input
  • 1/8" and 1/4" headphone jacks
  • Balanced mono/stereo, line-level outputs

Hear Back PRO Analog card

  • -10dB pad on each channel allows the user to select +8 dB or +18 dB maximum input sensitivity level
  • Custom input sensitivities available up to +34dB upon special request - contact your Sales Pro for more information
  • User configurable sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz using jumpers
  • (2) analog input cards are required to input 16 channels of audio
  • Up to (4) cards can be populated per Hub to allow A/B input switching between (2) banks of 16 channels (additional cards sold separately)

Hear Technologies Hear Back PRO Specifications:

  • For full specifications, click on the "Hear Technologies Hear Back PRO Specifications Sheet" under the "DOCUMENTATION" tab, above.
