Shure QLXD2/SM58 Handheld Transmitter with SM58 Capsule

OUR PART #: QLXD2/SM58 MFR #: QLXD2/SM58=-G50

Copied to clipboard

The Shure QLXD2/SM58 is a digital wireless handheld microphone that is part of Shure's QLX-D line of digital wireless systems. ...Read more

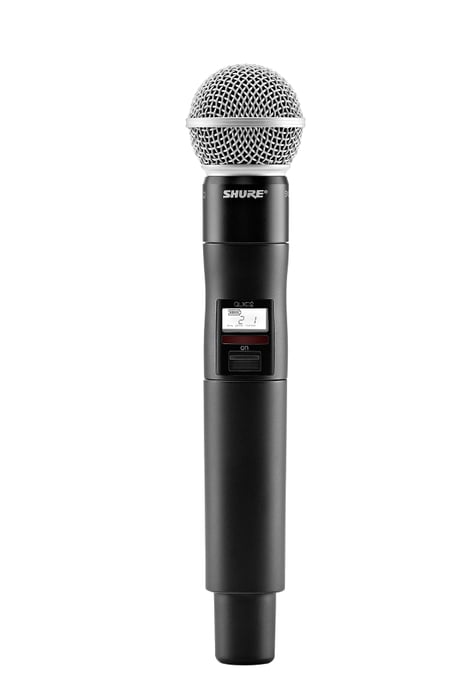

Shure QLXD2/SM58 Handheld Transmitter With SM58 Capsule Image 1
Shure QLXD2/SM58 Handheld Transmitter With SM58 Capsule
Selected Model Sale Price: $386.00
List Price: $489.00
Save up to 21%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
(shipping times are approximate)
More on Order! Item usually available to ship in 10-15 Business days. Place your order now to reserve your place in line. Call our Sales Pros at 800-356-5844.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Shure QLXD2/SM58 is a digital wireless handheld microphone that is part of Shure's QLX-D line of digital wireless systems. Shure QLX-D Digital Wireless delivers defined, streamlined performance with transparent 24-bit digital audio. Combining professional features with simplified setup and operation, QLX-D offers outstanding wireless functionality for demanding live sound events and installations. QLX-D delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.

The QLXD2/SM58 is a unidirectional (cardioid) dynamic wireless vocal microphone engineered for professional vocal use in live performance, sound reinforcement, and studio recording. Its highly effective, integrated, spherical filter minimizes wind and breath pop, while the cardioid pickup pattern isolates the main sound source and minimizes unwanted background noise. The SM58 features a tailored vocal response for world standard sound response.

Includes

  • QLXD2 Handheld Transmitter with SM58 Cartridge
  • (2) AA Batteries
  • Battery Contact Cover
  • Microphone Clip
  • User Guide

Features

  • Includes QLXD4 digital wireless receiver and QLXD2 handheld mic with SM58 cartridge
  • Transparent 24-bit digital audio captures every performance detail
  • Over 120dB of dynamic range eliminates transmitter gain adjustment
  • Wide 64MHz tuning bandwidth (region-dependent)
  • Up to 17 compatible systems per 6MHz TV channel

Specifications

  • SM58 Cartridge Polar Pattern: Cardioid
  • Frequency Response: 50 Hz - 15 kHz
  • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
  • Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
  • Battery Runtime @ 10 mW: Shure SB900: up to 10 hours; Alkaline: up to 9 hours
  • Dimensions (LxDia.): 10.1" x 2.0" (256 mm x 51mm)
  • Weight: 12.2 oz. (347 g), without batteries
  • Housing: Machined aluminum
  • Audio Input:
    • Configuration: Unbalanced
    • Maximum Input Level (1 kHz at 1% THD): 145 dB SPL (SM58), typical (Dependent on microphone type)
  • RF Output:
    • Antenna Type: Integrated Single Band Helical
    • Occupied Bandwidth: < 200 kHz
    • Modulation Type: Shure proprietary digital
    • Power: 1 mW or 10 mW
