Shure QLXD1 Wireless Bodypack Transmitter

OUR PART #: QLXD1 MFR #: QLXD1=-G50

Copied to clipboard

The QLXD1 Wireless Bodypack Transmitter features transparent 24 bit digital audio with highly efficient RF spectrum connectivity. ...Read more

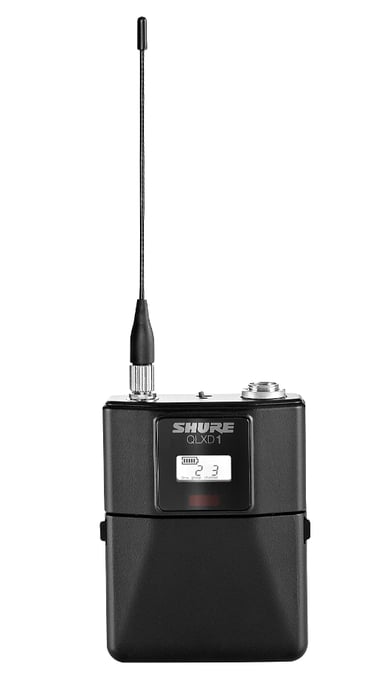

Shure QLXD1 Wireless Bodypack Transmitter Image 1
Shure QLXD1 Wireless Bodypack Transmitter
Selected Model Sale Price: $323.00
List Price: $448.00
Save up to 28%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
(shipping times are approximate)

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The QLXD1 Wireless Bodypack Transmitter features transparent 24 bit digital audio with highly efficient RF spectrum connectivity. Quickly sync transmitter and receiver over IR with the push of a button to experience clear, uninterrupted signal up to 100 m (330 ft.). The durable all-metal construction ensures this piece of equipment will last, and compatibility with multiple microphone options make this transmitter a utility tool for wireless vocals and instruments in mid-size gathering spaces, music venues, and houses of worship.

Available Frequency Bands:

  • G50 (470-534 MHz)
  • H50 (534-598 MHz)
  • J50A (572-616 MHz)
  • V50 (174-216 MHz)
  • X52 (902-928 MHz)

Features

  • Over 120dB of dynamic range
  • AES 256-bit encryption for secure transmission
  • Optional Shure SB900B lithium ion rechargeable battery reports remaining runtime in hours and minutes; up to 9 hours continuous use with two AA batteries
  • External charging contacts for docked charging
  • Backlit LCD with easy-to-navigate menu and controls
  • Selectable display mode showing group/channel, frequency, or battery runtime
  • 300' line-of-sight operating range
  • Detachable antenna
  • Frequency and power lockout

Specifications

  • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
  • Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
  • Battery Runtime @ 10 mW:
    • Shure SB900: up to 10hours
    • Alkaline: up to 9 hours
  • Dimensions (HxWxD): 3.38" × 2.57" × 0.92" (86mm × 65 mm × 23 mm)
  • Weight: 4.9 oz. (138 g, without batteries)
  • Housing: Cast aluminum
  • Audio Input: Connector 4-pin male miniconnector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 Megohm
    • Maximum Input Level (1 kHz at 1% THD): 8.5 dBV (7.5 Vpp)
    • Preamplifier Equivalent Input Noise (EIN)(System Gain Setting =+20): -120 dBV, A-weighted, typical
  • RF Output:
    • Connector: SMA
    • Antenna Type: 1/4 wave
    • Impedance: 50 Ohms
    • Occupied Bandwidth: < 200 kHz
    • Modulation Type: Shure proprietary digital
    • Power: 1 mW or 10 mW
