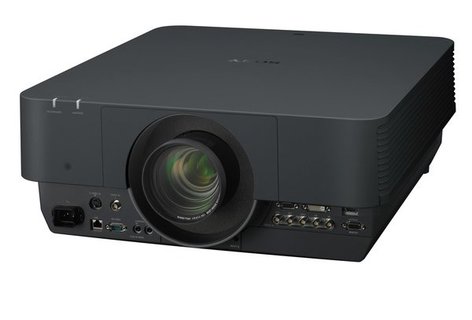

Sony VPL-FHZ700L/B
7000 Lumens HD Laser Projector in Black, Body Only

OUR PART #  VPLFHZ700L/B

Call for price! Not available online.


Recommended Accessories

The Sony VPL-FHZ700L/B is part of their next generation lamp-less projector using 3LCD imaging technology to achieve 7,000 lumens of color light output at WUXGA resolution (1920 x 1200). It offers a range of capabilities, eliminating a host of issues associated with conventional lamp-based projection. The projector packs all the benefits of Vivid color 3LCD, long life Laser Light Source and Advanced Integration features. Merging blue laser, phosphor, and 3LCD optical system, it delivers full-time, vibrant RGB color in unmatched WUXGA 4,000 lumens Color Light Output performance. Thanks to the optical system and filter design, it provides virtually maintenance-free operation for up to approximately 20,000 hours of expected light source, display device, and filter use (when using with the Auto Light Dimming feature enabled—actual hours may vary depending on usage environment). Advanced integration features include: constant brightness mode which maintains its brightness over the life at reduced light output, installation tilt angle free design, wide range V: +/-1130% H: +/632% lens shift range, onboard edge blending and geometric correction, plus instant power On/Off features. The VPL-FHZ700L/B is an installation projector that is a terrific fit for education, commercial, public venue, and house of worship usage where conventional lamp projectors have had limitations. It also contributes to reducing Total Cost of Ownership through minimization of the need to replacement lamps.

Note: Lens(es) sold separately.

Sony VPL-FHZ700L/B Features:

  • 7000 lumens 3LCD Projector
  • Native WUXGA (1920 x 1200) Resolution
  • 8000:1 Contrast Ratio
  • Groundbreaking laser light source
  • Up to 20,000h maintenance-free design
  • Versatile inputs including HDMI and DVI-D
  • RJ45 for network control and monitoring
  • Up to V: +113% -0%, H: +/-63% Optical Lens Shift
  • Tilt angle-free design
  • Onboard Edge-blending capability
  • Advanced Geometric Correction
  • Vertical and Horizontal Keystone correction: Max ±30%
  • Equipped with Bright Era 3LCD Panels
  • 12-bit 3D Digital Gamma Correction
  • Near instantaneous power on
  • Auto light dimming for intelligently saving energy consumption
  • Designed to blend in visually
  • Picture by Picture Image Projection
  • DICOM GSDF Simulation Gamma Mode
  • Crestron RoomView Connected™
  • HG (Mercury) free design
  • Black cabinet which blends in to bright environments

Sony VPL-FHZ700L/B Specifications:

  • Optical Specifications:
    • Color Light Output: 7000 lumens (light output mode: high), 5600 lumens (standard)
    • Light Output: 7000 lumens (light output mode: high), 5600 lumens (standard)
    • Contrast Ratio: 8000:1
    • Screen Coverage: 40" to 600"
  • Input/Output Specifications:
    • S-Video In: Y/C Mini DIN 4-pin, Audio: RCA (shared with VIDEO IN)
    • Composite Video In: RCA, Audio: RCA x2 (shared with S VIDEO IN)
    • Analog RGB/Component In:
      • 5BNC (RGB / Y Pb Pr with stereo mini jack for audio
      • Mini D-sub 15-pin (RGB with stereo mini jack for audio
    • Digital In: HDMI x1 (Digital RGB/Y Pb Pr, Digital Audio), HDCP Support, DVI-D (HDCP support) x1
    • Network: RJ-45: 10Base-T / 100Base-TX
    • Variable Audio Out: Stereo mini jack (variable out)
    • Remote Control: RS232C (D-sub 9-pin), Control S (Stereo mini jack, Plug-in power DC5V)
  • Electrical Specifications:
    • Native Resolution: 1920 by 1200
    • Color System: NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
    • Acceptable Computer Signals: 1920 by 1200 dots
  • General Specifications:
    • Dimensions: 20-7/8" W x 8-3/8" H x 21-15/32" D
    • Weight: 47 lbs
    • Power Requirements: AC 100 V to 240 V, 5 A to 2.1 A, 50 Hz /60Hz
    • Power Consumption: 497W Max
