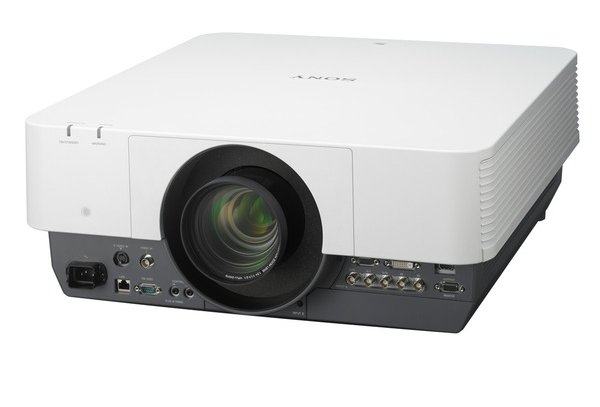

Sony VPL-FHZ700L/W
7000 Lumens HD Laser Projector in White, Body Only

OUR PART #  VPLFHZ700L/W

Call for price! Not available online.


Recommended Accessories

A next generation lamp-less projector, the Sony VPL-FHZ700L/W uses 3LCD imaging technology to achieve 7,000 lumens of color light output at WUXGA resolution (1920 x 1200). It provides a range of capabilities and eliminates a range of issues associated with conventional lamp-based projection. It packs all the benefits of Vivid color 3LCD, long life Laser Light Source as well as Advanced Integration features. Combining blue laser, phosphor, and its 3LCD optical system, the projector delivers full-time, vibrant RGB color in unrivaled WUXGA 4,000 lumens Color Light Output performance. Thanks to its optical system and filter design, it offers virtually maintenance-free operation for up to approximately 20,000 hours of expected light source, display device, and filter use (with Auto Light Dimming feature enabled—actual hours may vary depending on usage environment). It offers advanced integration features including: constant brightness mode which maintains its brightness over the unit life at reduced light output, wide range V: +/-1130% H: +/632% lens shift range, installation tilt angle free design, onboard edge-blending and geometric correction, plus instant power On/Off functionality. It's an installation projector that's a great fit for education, house of worship, commercial, and public venue applications, where conventional lamp projectors have traditionally had limitations. It also contributes to reducing Total Cost of Ownership by minimizing the requirements of replacement lamps.

Note: Lens(es) sold separately.

Sony VPL-FHZ700L/W Features:

  • 7000 lumens 3LCD Projector
  • Native WUXGA (1920 x 1200) Resolution
  • 8000:1 Contrast Ratio
  • Groundbreaking laser light source
  • Up to 20,000h maintenance free design
  • Versatile inputs including HDMI and DVI-D
  • RJ45 for network control and monitoring
  • Up to V: +113% -0%, H: +/-63% Optical Lens Shift
  • Tilt angle free design
  • Built-in Edge-blending capability
  • Advanced Geometric Correction
  • Vertical and Horizontal Keystone correction : Max ±30%
  • Equipped with Bright Era 3LCD Panels
  • 12-bit 3D Digital Gamma Correction
  • Near instantaneous power on
  • Auto light dimming for intelligently saving energy consumption
  • Designed to blend in visually
  • Picture by Picture Image Projection
  • DICOM GSDF Simulation Gamma Mode
  • Crestron RoomView Connected™
  • HG (Mercury) free design

Sony VPL-FHZ700L Specifications:

  • Optical Specifications:
    • Color Light Output: 7000 lumens (light output mode: high), 5600 lumens (standard)
    • Light Output: 7000 lumens (light output mode: high), 5600 lumens (standard)
    • Contrast Ratio: 8000:1
    • Screen Coverage: 40" to 600"
  • Input/Output Specifications:
    • S-Video In: Y/C Mini DIN 4-pin, Audio: RCA (shared with VIDEO IN)
    • Composite Video In: RCA, Audio: RCA x2 (shared with S VIDEO IN)
    • Analog RGB/Component In:
      • 5BNC (RGB / Y Pb Pr with stereo mini-jack for audio
      • Mini D-sub 15-pin (RGB with stereo mini-jack for audio
    • Digital In: HDMI x1 (Digital RGB/Y Pb Pr, Digital Audio), HDCP Support, DVI-D (HDCP support) x1
    • Network: RJ45: 10Base-T / 100Base-TX
    • Variable Audio Out: Stereo mini jack (variable out)
    • Remote Control: RS232C (D-sub 9-pin), Control S (Stereo mini jack, Plug in power DC5V)
  • Electrical Specifications:
    • Native Resolution: 1920 by 1200
    • Color System: NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
    • Acceptable Computer Signals: 1920 by 1200 dots
  • General Specifications:
    • Housing color: White
    • Dimensions: 20-7/8" W x 8-3/8" H x 21-15/32" D
    • Weight: 47 lbs
    • Power Requirements: AC 100 V to 240 V, 5 A to 2.1 A, 50 Hz /60Hz
    • Power Consumption: 497W Max
