Product Overview

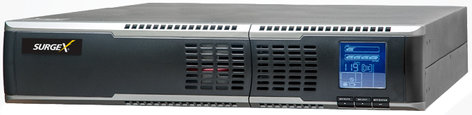

For critical systems requiring online battery backup, the SurgeX UPS-2000-OL delivers network-grade power through double-conversion technology. It's a great standalone backup solution for sensitive audio video systems, critical business servers, point of sale equipment, telephone, and data networks equipment that demand prolonged runtimes of 1.5 hours or greater. It also delivers extended scalable runtimes of up to 18 hours, using a self-charging extended battery pack and easily replaceable battery tray.
SurgeX offers a complete UPS product line designed to meet your battery backup needs. Available in multiple configurations, SurgeX's standalone UPS solutions provide backup power to keep equipment running, and properly shut down critical systems in the event of a power outage.
SurgeX UPS-2000-OL Includes:
- SurgeX UPS-2000-OL UPS Online Battery Backup
- UPSILON CD
- Horizontal brackets
- 5:1 brackets
- Manual
- 6ft DB9 cable
SurgeX UPS-2000-OL Features:
- Online, double-conversion uninterruptible power supply
- Extended scalable running of up to 18 hours
- Multi-form factors
- Configurable as tower or 19" rack
- Hot swappable-user replaceable battery trays
- Fast battery recharge
- Intuitive LED screen
- UPS monitoring software
- Multiple communications capability-RS232 and SNMP (SNMP card sold separately)
- 3 Year Product Warranty, 1 Year Battery Warranty
SurgeX UPS-2000-OL Specifications:
- Power Configuration: 20A / 120V, 2000 VA, Online
- Outlets: 5
- Rack size: 3 RU
- Voltage: 120 VAC (80 - 138 V at 100% load) 60-138 V at 40% load
- Capacity: 2000 VA (1400 W)
- Frequency: 50/60 Hz auto-sensing
- Power Factor: >/= 0.97
- Topology: True on-line, Double conversion, Input PF correction
- Voltage: 120 VAC
- Wave Form: Sine wave, zero transfer time
- Load Power Factor: 0.7
- Efficiency AC/DC/AC: >/= 90%
- Auto Restart: Yes
- Start on Battery: Yes
- Rated Current: 16.6 A
- Overload Capacity: 110-150% for 30 seconds, >/= 150% for 200 msec
- Crest Factor: 3:1 at full load
- Battery Type (UPS): (4) 12V 7.2AH/48V
- Backup Time: 7-11 minutes (internal batteries) to 18 hours using External Battery Packs (EBP)
- Extended Battery Packs: EBP2
- Battery Type (EBP): 2 strings of (4) 12V 7.2AH/48V“, (8) 12V 7.2AH/96V
- Recharge Time: Typically < 4 hours
- Physical:
- Unit Dimensions: 17.3" L x 3.39" H x 20.2" D (438 x 86 x 513mm)
- Shipping Dimensions: 22.3" x 27.4" x 11"
- Unit Weight: 65 lbs (29.5 kg)
- Shipping Weight: 75.5 lbs (34.3 kg)
- Line Cord: 5-20P
- Receptacles: (1) NEMA L5 - 20R + (4) NEMA 5 - 20R
- Communication Interface: RS-232 or SNMP (optional SNMP card-sold separately)
- Environmental:
- Operating Temperature: 32 - 104°F (0 - 40°C)
- Audible Noise: < 50dba at one meter
- Altitude: 6,000ft (1830 m) above sea level
- Warranty: 3 years electronics / 1 year batteries
- North America: UL cUL FCC
- LCD Visual Display: Input/output voltage & frequency, on-line mode, back up mode, battery capacity, load level
- Audible Alarm: Beep every 4 sec (on battery)
- UPS Fault: Continuous beeping sound and LCD display
