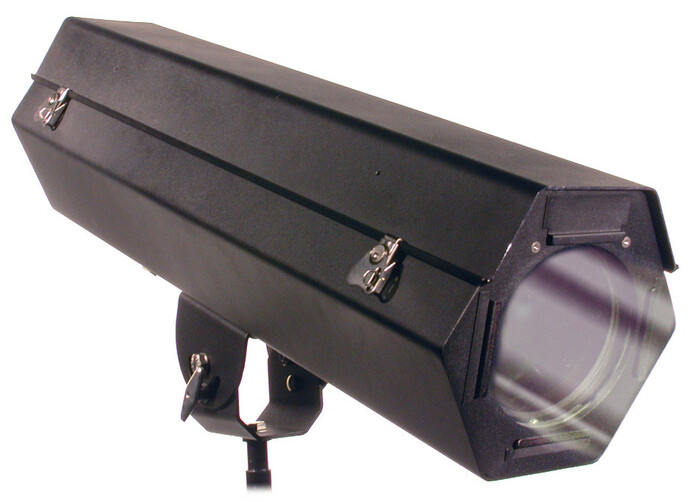

Altman ODEC-1535-BK
150W Architectural ODEC Outdoor Series Ellipsoidal in Black

OUR PART #:  ODEC-1535-BK

The Altman ODEC-1535-BK is the first fully functional outdoor ellipsoidal with 15°-35° or 30°-55° zoom focus, framing shutters, glass/ steel pattern projection capabilities...
Learn More
Our Price: $1,544.00
List Price: $1,930.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Altman ODEC-1535-BK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Altman ODEC-1535-BK is the first fully functional outdoor ellipsoidal with 15°-35° or 30°-55° zoom focus, framing shutters, glass/ steel pattern projection capabilities, internal & external mounting options for color media, dual gobo rotator, mechanical douser, louver or scroller. The removable lid allows for maximum accessibility during installation, lamp changes or lens adjustments. Two stainless steel safety cables hold the lid securely when the fixture is opened. The lid is secured to the body with four side-mounted link–lock latches that provide a water tight seal. Padlocks of appropriate size can be added for security. The proprietary highly polished reflector is engineered for use with T6 G12 CDM/ CMH lamps for maximum output. The lens focus adjustment is via Teflon guides throughout the focus range. Focus is secured by way of brass thumb screws. The ODEC comes complete with pattern holder, image clarifying donut & internal color media holder.

Altman ODEC-1535-BK Features:

  • 15-35 or 30-55 Degree Zoom capabilities
  • Low-Friction Teflon® lens glides
  • Utilizes 12,000 hour CDM lamps w/ high CRI
  • Low Noise, high efficiency electronic ballast
  • Easily adjustable stainless steel shutters
  • Included pattern holder accepts standard B-Size
  • Lamp Centering & Peak/ Flat field adjustment knobs
  • Compact, rugged welded aluminum & stainless steel fabrication
  • Link-Lock latches for security
  • Designed for indoor/ outdoor applications
  • Cable entry glands and mounting holes located on bottom of luminaire
  • Secured safety loop in fixture body
  • U.L. & c.U.L. listed for wet locations
  • Made in the USA

Altman ODEC-1535-BK Specifications:

  • Materials:  Construction employs all corrosion-resistant materials and hardware.
  • Head:  Welded aluminum fabrication.
  • Rating:
    • 20 volt AC operation; 50/60Hz .58 amps with 70W lamp and 70W ballast; 1.25 amps with 150W lamp and 150W ballast.
      240 and 277 VAC units are available.
  • Lamp/Socket:  70W or 150W UV Block G12 Ceramic Metal Halide lamp.  5kV pulse rated.
  • Lamp Alignment:  Fully adjustable in 3 axis with the use of two heat resistant concentric knobs.
  • Lens:  Crown Glass (white plate) with anti-reflector coated surfaces.
  • Reflector:  Proprietary curve, specular aluminum
  • Focusing:  Lens movement contained within body, adjustable with brass thumb screws
  • Accessories:  Internal accessory slot(s) accept color filters or glass filters or B-Size glass and steel patterns. External accessory slot accepts 7 1/2” accessories.
  • Weight:  Approx. 35 lbs. (15.9 kg).

External Housing

  • Construction:  1/8” heavy-gauge aluminum construction (body and lid).
  • Viewing Window:  Glass, 0.25-inch (6.35 mm) thick, 6 1/4” diameter.
  • Environment:  Indoor/Outdoor; -10° 10 120°F (-23° to 49°C).
  • Latches:  Link-lock No. 3, stainless steel; can be secured with padlocks (not supplied).
  • Mounting:  Per specification.
  • Accessories:  Installed with locking external slot.
  • Finish:  Black TGIC polyester  (White, Silver, and Custom colors also available-sold separately. Contact your sales representative for more information).
