Product Overview

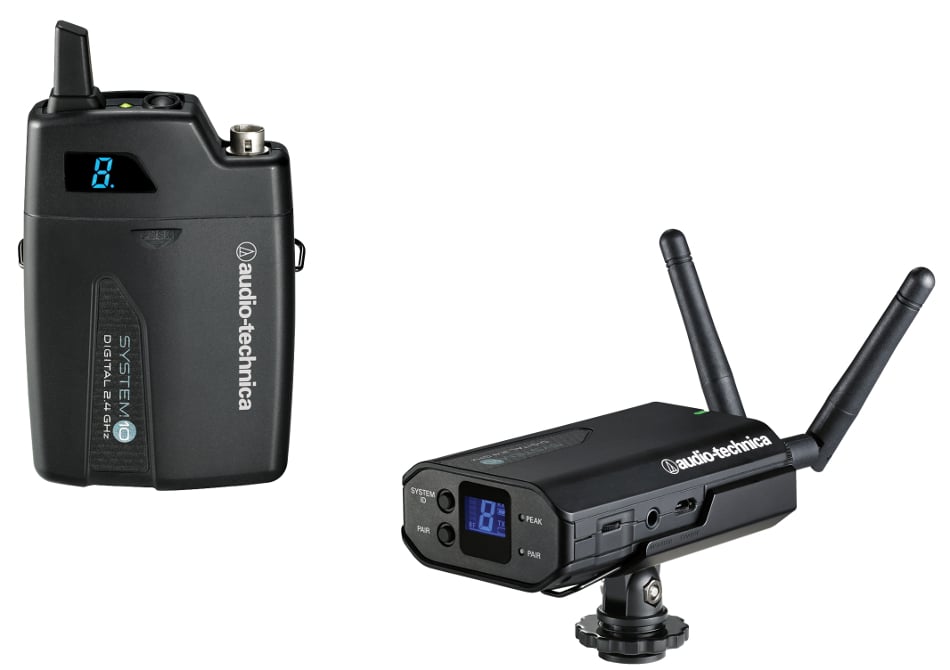

Ideally positioned to capture media on the go, Audio-Technica's ATW-1701 is part of their System 10 Camera-mount series. It consists of the ATW-R1700 camera-mount receiver along with the ATW-T1001 body-pack transmitter, and features a compact, portable design that's great for a variety of applications, including video production, electronic news gathering (ENG) and every mobile application in between. The receiver provides multiple mounting options to accommodate a range of cameras and recording devices.
Please note: you'll need to select a microphone or cable with a cW-style locking 4-pin connector to complete the system.
System 10
Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation; easy setup; and clear, natural sound quality. Operating in the 2.4GHz range, far from TV and DTV interference, this advanced package offers extremely easy operation and instantaneous channel selection. Up to 8 channels may be used together without any frequency coordination problems or group selection issues. The system's receivers and transmitters offer an easy-to-read digital ID display, and ensure clear communications by providing 3 levels of diversity assurance: frequency, time, and space.
- Frequency Diversity sends the signal on 2 dynamically-allocated frequencies for interference-free communication.
- Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference.
- Space Diversity uses 2 discreet antennas on each transmitter and receiver to maximize signal integrity.
Applications
Video production - Electronic Field Production (EFP) • Electronic news gathering (ENG) • Other mobile audio capture applications
Includes
- ATW-R1700 Camera-Mountable Diversity Receiver
- ATW-T1001 UniPak Bodypack Transmitter
- Camera Shoe-Mount for ATW-R1700
- Two Antennas
- AC Adapter (USB-type)
- USB Cable
- ⅛" (3.5mm) Stereo Cable
Features
- Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
- Operates in the 2.4GHz range – completely free from TV interference
- Ultra compact receiver size with multiple mounting options
- Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
- Internal rechargeable 12-hr battery
- Separate headphone port and volume control for local audio monitoring
- Multi-pairing function to link a single receiver with up to 8 body-pack or handheld transmitters (additional transmitters sold separately)
- Three levels of diversity assurance: Frequency, Time and Space
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync and setup
Specifications
- Overall System:
- Operating Frequencies: 2.4GHz ISM band
- Dynamic Range: >109dB (A-weighted), typical
- Total Harmonic Distortion: < 0.05%
- Operating Range: 100' (30 m) radius, 200' (60 m) diameter typical (Open range environment with no interfering signals)
- Operating Temperature Range: 32°F to 104°F (0°C to +40°C; Battery performance may be reduced at very low temperatures)
- Frequency Response: 20Hz - 20kHz (Depending on microphone type)
- ATW-R1700 receiver:
- Receiving System: Diversity (frequency/time/space)
- Maximum Output Level:
- ⅛" (3.5mm), TRS balanced: +6dBV
- Dual mono, unbalanced: 0dBV
- Power Supply: 100-240VAC (50 / 60Hz) to 5VDC, 0.5A switched-mode external USB-type external power supply
- Battery: Internal Battery: 3.7V rechargeable Li-ion battery
- Battery Life: 12 hours (Depending on environmental conditions)
- Battery Charging Time: 4 hours, 30 minutes (Depending on environmental conditions)
- Charging Temperature Range: 41°F to 95°F (5°C to +35°C)
- Dimensions (W x H x D): 2.20" x 3.60" x 1.09" (56 x 91.4 x 27.8mm)
- Net Weight: 3.7oz. (105g)
- ATW-T1001 bodypack transmitter:
- RF Power Output: 10mW
- Spurious Emissions: Following federal and national regulations
- Input Connections:
- Four-pin Locking Connector:
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +9V
- Batteries: (2) 1.5V AA (not included)
- Battery Life: > 7 hours (alkaline; Depending on battery type and use pattern)
- Dimensions (W x H x D): 2.76" x 4.21" x 0.98" (70.2 x 107 x 24.9mm)
- Net Weight: 3.5oz. (100g), without batteries)
