Tripp Lite SMART 3000VS
120V SmartPro 3kVA Line Interactive UPS with Extended-run & SNMPWEBCARD options


Our Price: $1,014.46
List Price: $1,423.80
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

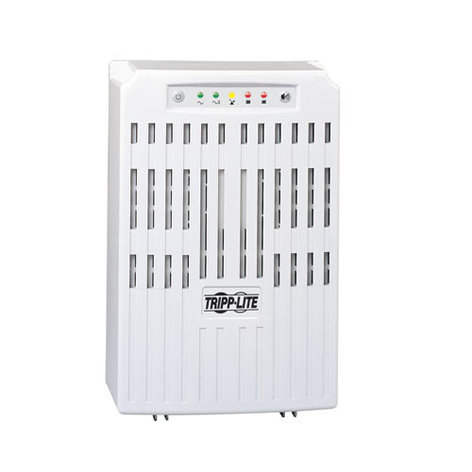

Tripp Lite's SMART 3000VS intelligent, line interactive UPS with expandable runtime protects server, networking and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Small footprint, tower UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches. Large capacity 3000 VA/2250 watt rated UPS system offers 4 minutes runtime at full load and 14 minutes at half load during power failures. Runtime is expandable with optional external battery packs. Line interactive voltage regulation corrects brownouts as low as 79V and overvoltages as high as 147V to fully regulated 120V nominal output for smooth continuous operation of connected equipment.

Includes a total of 10 outlets, 3 of which can be individually powered off and back on via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical loads. Includes slot for internal SNMPWEBCARD, plus 2 DB9 and 2 USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. Ships in attractive gray color scheme. Compatible with Tripp Lite's PowerAlert and Watchdog service software.

TrippLite SMART 3000VS Includes:

  • SMART 3000VS UPS System
  • PowerAlert Software and cabling
  • Instruction manual

TrippLite SMART 3000VS Features:

  • 000VA/2250 watt output capacity accommodates a variety of server, networking and telecom devices
  • High power density 3kVA UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches
  • Compatible with North American 120V/60 Hz power as found in the USA, Canada and Mexico
  • Offers 4 minutes runtime with a full load of 3000VA and 14 minutes with a half load of 1500VA
  • Runtime is expandable with BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs
  • Line interactive voltage regulation corrects severe brownouts and overvoltages from 79 to 147v back to normal 120v levels without using battery power
  • 10 total outlets (7 NEMA5-15R; 2 NEMA5-15/20R; 1 L5-30R)
  • Includes NEMA L5-30P locking 30 amp input plug connection
  • Notification of system status via 5 LEDs and multi-function audible alarms
  • Included PowerAlert Software provides e-mail notification of power problems and the simultaneous automatic unattended shutdown of multiple servers
  • 4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown
  • Slot for SNMP/web card (part#: SNMPWEBCARD) and environmental sensor (part#: ENVIROSENSE) for remote communications in large IP environments
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
  • Communication ports support on battery, low battery, power restored, AC line voltage, DC battery voltage, load percentage, battery charge current, battery capacity, internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
  • 3 individual customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or perform "load shedding" of less critical loads to extend battery runtime for the most critical equipment
  • Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities
  • Hot-swappable/user replaceable batteries allow on-site battery replacement without powering off connected equipment
  • UPS battery set ships fully assembled and ready for use, no time consuming, connection of individual internal batteries by user is necessary

TrippLite SMART 3000VS Specifications:

    • Output Volt Amp Capacity (VA): 3000
    • Output kVA capacity (kVA): 3
    • Output Watt Capacity (watts): 2250
    • Output kW capacity: 2.2
    • Output power factor: 0.8
    • Output Capacity Details:  Output capacity is limited to 1600 watts in all external battery pack configurations
    • Nominal Output Voltage(s) Supported: 120V
    • Frequency compatibility: 60 Hz
    • Output voltage regulation (line mode): -18% / +8%
    • Output voltage regulation (Battery mode): +/- 5%
    • Built-in UPS output receptacles: 7 5-15R outlet(s); 2 5-15/20R outlet(s); 1 L5-30R outlet(s)
    • Built-in controllable switched load banks: Three switchable two-outlet 5-15R load banks
    • Output circuit breaker: 20A branch rated (x2) - breaker 1 protects 5-20R, breaker 2 protects 5-15R, L5-30R is unbreakered
    • Output AC waveform (AC mode): Sine wave
    • Output AC waveform (battery mode): PWM sine wave
  • INPUT:
    • Rated input current (at maximum load): 24A
    • Nominal Input Voltage(s) Supported: 120V AC
    • UPS input connection type: L5-30P
    • Input circuit breaker: 30A
    • UPS Input cord length (ft.): 8
    • UPS Input cord length (m): 2.4
    • Recommended Electrical Service: 120V 30A
    • Phase: Single-Phase
    • Full load runtime (minutes): 4 min. (2250w)
    • Half load runtime (minutes): 14 min. (1125w)
    • Expandable battery runtime: Extended runtime supported via optional external battery packs
    • External battery pack compatibility: BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
    • DC system voltage (VDC): 48
    • Battery recharge rate (included batteries): Less than 4 hours from 10% to 90%
    • Replacement battery cartridge (internal UPS battery replacement): RBC54
    • Battery Access: Battery access door
    • Battery replacement description: Hot-swappable, user replaceable batteries
    • Voltage regulation description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 79V to 147V
    • Overvoltage correction: Input voltages between 128 and 147 are reduced by 12%
    • Undervoltage correction: Input voltages between 95 and 104 are boosted by 12%
    • Severe undervoltage correction: Input voltages between 79 and 94 are boosted by 24%
    • LED Indicators:
    • 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
    • Alarms: Audible alarm indicates power-failure, overload and low-battery conditions
    • Alarm cancel operation  Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
    • Switches:  2 Switches control off/on power status and alarm-cancel/self-test operation
    • UPS AC suppression joule rating: 480
    • UPS AC suppression response time: Instantaneous
    • EMI / RFI AC noise suppression: Yes
    • Installation form factors supported with included accessories: Tower
    • Primary form factor: Tower
    • UPS / Power Module dimensions in primary form factor (height x width x depth / inches): 14.2 x 9.2 x 12
    • UPS / Power Module dimensions in primary form factor (height x width x depth / cm): 36.2 x 23.5 x 30.5
    • UPS / Power Module weight (lbs): 59
    • UPS / Power Module weight (kg): 26.8
    • UPS Shipping dimensions (height x width x depth / inches): 16 x 14.8 x 19.8
    • UPS Shipping dimensions (height x width x depth / cm): 40.6 x 37.5 x 50.2
    • Shipping weight (lbs): 66
    • Shipping weight (kg): 30
    • Cooling method: Fan
    • UPS housing material: Polycarbonate
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity: 0 to 95%, non-condensing
    • AC mode BTU / hr. (full load): 488.3
    • Battery mode BTU / hr. (full load): 1143.1
    • AC mode efficiency rating (100% load): 94%
    • Audible Noise:  Audible Noise < 47dBA At Front Side 1 Meter
    • Communications interface: USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
    • Network monitoring port description: Supports detailed monitoring of UPS and site power conditions
    • PowerAlert software: Included
    • Communications cable: 2 USB and 2 DB9 cables included
    • WatchDog compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Transfer time:  2-4 milliseconds
    • Low voltage transfer to battery power (setpoint):  79
    • High voltage transfer to battery power (setpoint):  147
    • Cold Start (startup in battery mode during a power failure):  Cold-start operation supported
    • High availability UPS features:  Hot swappable batteries
    • Green & high efficiency features:  Individually controllable load banks
    • UPS Certifications:  Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
    • Product Warranty Period (Worldwide):  2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
    • Connected Equipment Insurance (U.S., Canada & Puerto Rico):  $250,000 Ultimate Lifetime Insurance
