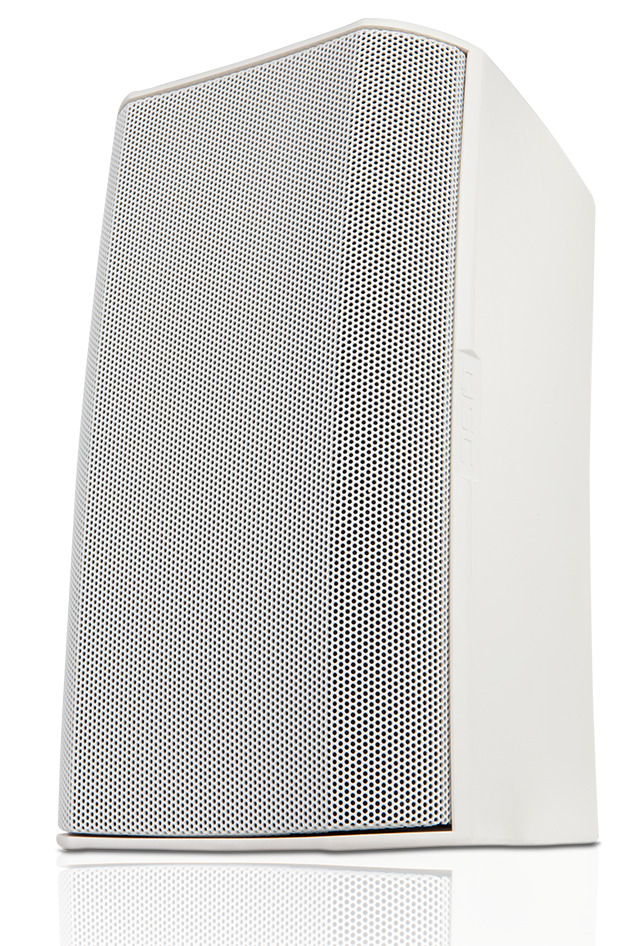

AcousticDesign 6.5" 2-Way Surface Mount Speaker in White


The QSC AcousticDesign AD-S6T is a surface mounted 70/100V, 6.5” two-way loudspeaker system...
Learn More
Our Price: $320.00
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The QSC AcousticDesign AD-S6T is a surface mounted 70/100V, 6.5” two-way loudspeaker system, ideally suited for a wide variety of foreground and background sound reinforcement applications.

AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution.

The AD-S6T features a high quality 6.5” weather treated paper cone woofer on a 1.5” voice coil. A carefully selected 1” silk dome tweeter with a 1” voice coil perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction.

Consistent and even 105° axisymmetric (conical) coverage is achieved through DMT (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.

The even, accurate frequency response of the AD-S6T is aided by a 60-watt low-loss, low-saturation transformer with selectable taps, including an 8 Ohm bypass. To preserve weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.

With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance.

Installers will appreciate the award-winning X-Mount system included with each full-range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow preconfiguration of the X-Mount while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.

To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution.

The AcousticDesign series feature a stylish appearance free of obtrusive logo adornments for aesthetically sensitive installations. AcousticDesign surface loudspeakers are available in QSC standard black (RAL 9011) or white (RAL 9010) and may be painted to match any decor.

QSC AD-S6T Features:

  • DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Advanced voicing filter sets using QSC Intrinsic Correction, available through either Q-Sys processing or CXD amplifier platforms
  • Low-saturation and low-loss 70/100V transformers with 8 Ohm bypass
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, & BIM information available online

QSC AD-S6T Specifications:

  • Effective Frequency Range:  60 Hz – 20 kHz
  • Rated Noise Power / Voltage:  150 Watts / 35Volts (RMS)
  • Broadband Sensitivity:  89 dB SPL
  • Coverage Angle (-6 dB):  105°
  • Directivity Factor (Q):  5
  • Directivity Index:  7 dB
  • Maximum continuous SPL:  110 dB
  • Maximum Peak SPL:  116 dB
  • Rated Impedance:  8 Ohms
  • Recommended Amplifier:  300 watts
  • Transformer Taps:
    • 70V:  60, 30, 15, 7.5 Watts and 8 Ohm bypass
    • 100V:  60, 30, 15 Watts and 8 Ohm bypass
  • HF transducer:  1” silk dome tweeter / 1”voice-coil horn loaded
  • LF Transducer:  6.5” weather resistant paper cone woofer, 1.5” / 38mm voice-coil
  • Input Connector Type:  Euroblock connector with parallel output
  • Enclosure Material:  Painted ABS polymer
  • Grille Material:  Powder coated aluminum
  • X-Mount Material:  Powder coated aluminum
  • Enclosure Details:
    • Ingress Protection:  IP-54
    • Operating Environment:  Designed for indoor and outdoor use
    • Testing:
      • The AD Series loudspeakers qualified for outdoor use using the following tests:
        • Salt Fog:  MIL-STD-810G Method 509.5 for100 hrs.
        • Humidity:  MIL-STD-810G Method 507.5,Natural cycle B2, cyclic high RH for 7 days
        • High and Low Temperature:  Tested to QSC internal standards between -20° and 50° C
  • Operating Temperature Range:  -4°F to 122°F (-20°C to 50°C)
  • Net Weight:  13.6 lb (6.2 kg)
  • Product Dimensions:  14.4” x 8.5” x 8.5” (365mm x 215mm x 215mm)
  • Shipping Weight:  33.4 lbs. (15.2 kg) (pair packed)
  • Shipping Dimensions:  20" x 12” x 23” (510mm x 305mm x 585mm) (pair packed)
  • Included Accessories:
    • X-Mount mounting system
    • Euroblock connector
    • Input panel cover
