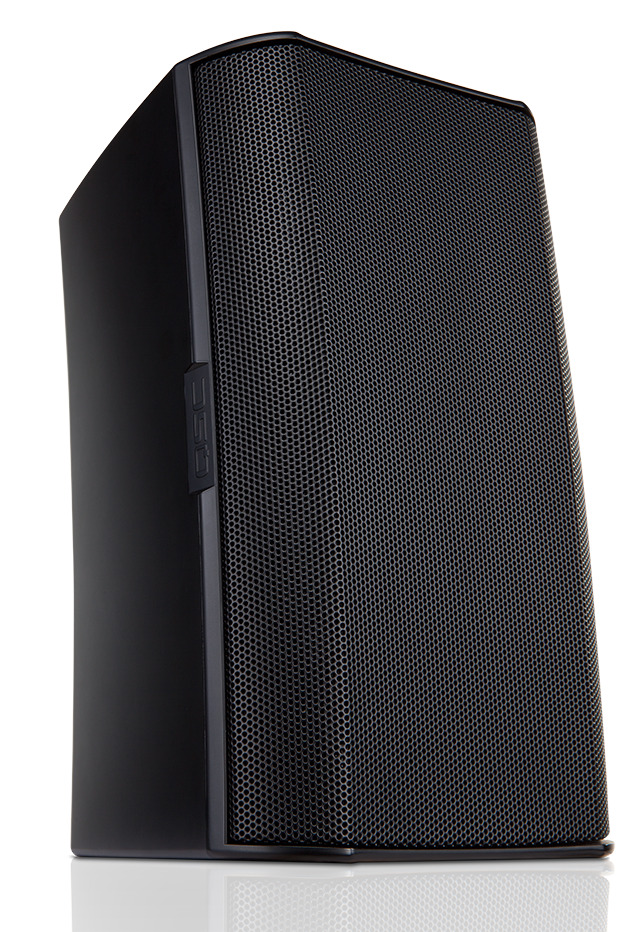

6.5" 2-Way AcousticDesign Surface Mount Speaker, in Black


The QSC AD-S6T AcousticDesign™ is a surface-mounted 70/100V, 6.5" 2-way loudspeaker system...
Learn More
Our Price: $320.00
Write the first review.

This product must be purchased in multiples of 2

In Stock

Related Products

The QSC AD-S6T AcousticDesign™ is a surface-mounted 70/100V, 6.5" 2-way loudspeaker system, ideal for use in a wide variety of foreground and background sound reinforcement applications. It features a high quality 6.5" weather-treated paper cone woofer on a 1.5" voice coil, as well as a carefully selected 1" silk dome tweeter with 1" voice coil that perfectly matches the sensitivity and performance of the woofer for outstanding full-range reproduction. Consistent and even 105° axisymmetric (conical) coverage is attained through DMT™ (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response. Its even, accurate frequency response is aided by a 60 W low-loss, low-saturation transformer that features selectable taps, including an 8 Ohm bypass. To preserve weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.

Installers will appreciate the award-winning X-Mount™ system which is included with each full-range AcousticDesign model. It's an ingenious mounting solution that achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments. Its knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow preconfiguration of the X-Mount while on the ground with no special tools needed. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.

Further enhancing performance and speed of install with optimum result, advanced voicing filter sets using QSC's Intrinsic Correction™ are obtained using Q-Sys networked audio processing platforms or CXD amplifier platforms, for a complete QSC systems solution.

QSC AcousticDesign Series
AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution. With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance. The AcousticDesign series models feature a stylish appearance free of obtrusive logo adornments for aesthetically sensitive installations. AcousticDesign surface loudspeakers may be painted to match any decor if needed.

QSC AD-S6T Features:

  • DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Advanced voicing filter sets using QSC Intrinsic Correction, available through either Q-Sys processing or CXD amplifier platforms
  • Low-saturation and low-loss 70/100V transformers with 8 Ohm bypass
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Complete EASE, CF2, CAD, & BIM information available online

QSC AD-S6T Specifications:

  • Effective Frequency Range: 60 Hz – 20 kHz
  • Rated Noise Power / Voltage: 150 Watts / 35 Volts (RMS)
  • Broadband Sensitivity: 89 dB SPL
  • Coverage Angle (-6 dB): 105°
  • Directivity Factor (Q): 5
  • Directivity Index: 7 dB
  • Maximum continuous SPL: 110 dB
  • Maximum Peak SPL: 116 dB
  • Rated Impedance: 8 Ohms
  • Recommended Amplifier: 300 watts
  • Transformer Taps:
    • 70V: 60, 30, 15, 7.5 watts and 8 ohm bypass
    • 100V: 60, 30, 15 watts and 8 ohm bypass
  • HF transducer: 1" silk dome tweeter / 1" voice-coil horn loaded
  • LF Transducer: 6.5" weather resistant paper cone woofer, 1.5" / 38mm voice-coil
  • Input Connector Type: Euroblock connector with parallel output
  • Housing color: Black
  • Enclosure Material: Painted ABS polymer
  • Grille Material: Powder-coated aluminum
  • X-Mount Material: Powder-coated aluminum
  • Enclosure Details:
    • Ingress Protection: IP-54
    • Operating Environment: Designed for indoor and outdoor use
    • Testing:
      • The AD Series loudspeakers qualified for outdoor use using the following tests:
             › Salt Fog: MIL-STD-810G Method 509.5 for 100 hrs.
             › Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
             › High and Low Temperature: Tested to QSC internal standards between -20° and +50° C
  • Operating Temperature Range: -4° F to 122° F (-20° C to +50° C)
  • Net Weight: 13.6 lbs (6.2 kg)
  • Product Dimensions: 14.4" x 8.5" x 8.5" (365 x 215 x 215mm)
  • Shipping Weight: 33.4 lbs (15.2 kg) (pair packed)
  • Shipping Dimensions: 20" x 12" x 23" (510 x 305 x 585mm) (pair packed)
  • Included Accessories:
    • X-Mount mounting system
    • Euroblock connector
    • Input panel cover
