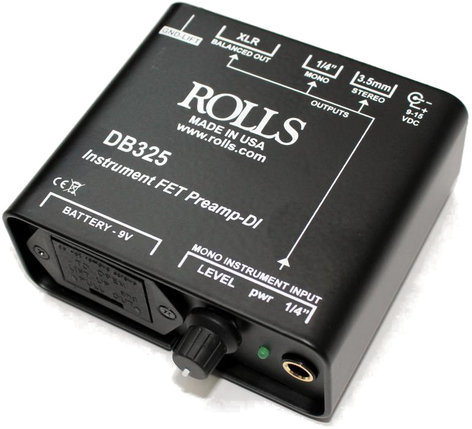

Rolls DB325
Active Instrument FET Preamp DI Box


Our Price: $109.00
List Price: $145.00
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The ROlls DB325 is an instrument active (powered) direct box.  It is designed to take a guitar, bass or keyboard and plug it directly into a computer, laptop or tablet.  It can also be used to boost the signal of an instrument to be plugged in to just about anything.  It is a cleanly designed simple, high end all class A way to get your instrument into different devices.  Works great with piezo pickups.  It will also work to add more gain to you guitar tube amp.

Rolls DB325 Features:

  • Mono 1/4" Input with level control
  • 3.5mm (Stereo) and 1/4" (MONO) outputs
  • XLR Balanced output
  • 9V Battery or Included AC adapter operation
  • Class A Design no feedback

Rolls DB325 Specifications:

  • Input Impedance: 4 MOhms
  • Frequency Response: 20 - 20kHz +/- 3 dB
  • Output Impedance: 1K (XLR 600 Ohms)
  • Max Output Level: +8 dBm (XLR -12 dBm)
  • Max Input Level: -13dB
  • Gain: 20 dB, (XLR 0 dB)
  • Signal To Noise: 106 dB
  • THD: < 0.570%
  • Weight: 1.1 lb
  • Dimensions: 4" W x 1.625" H x 3.5" D
  • Connectors: 1; XLR Female 1; 1/8" (3.5mm) TRS 2 ea; 1/4" TS
