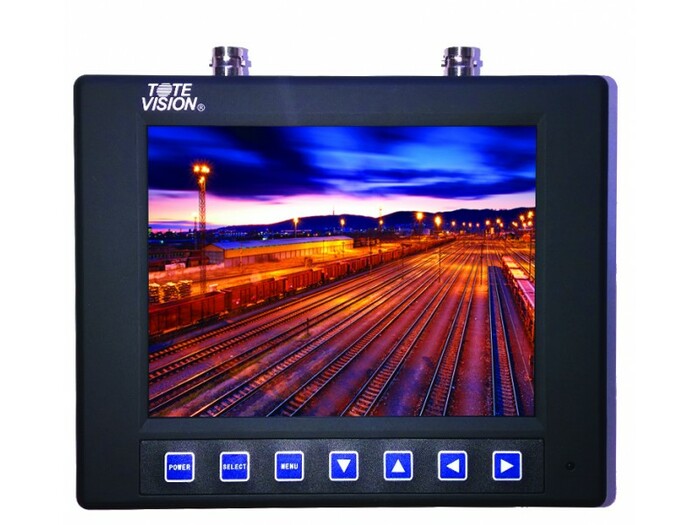

ToteVision LED566HD-KIT LED-566HD KIT

The ToteVision LED-566HD KIT includes their LED-566HD monitor, TB-565 tote bag, and AC-2000 AC adapter. This monitor is used primarily for testing and monitoring video in the field.

The tote bag is made of durable denier nylon and includes a hood for shielding the sun, as well as a neck strap for hands-free viewing.

ToteVision LED-566HD Specifications:

• Mount: Free-standing, 1/4-20 pad top and bottom
• Display: 5.6" TFT LCD
• Resolution: 640 x 480 (displays 480i/p ~ 1080i/p)
• Native Aspect Ratio: 4:3
• Visible Screen Size: 4.4" x 3.3" (112.9 x 84.7 mm)
• Back Light: LED (20K)
• HD Compatible: Yes
• Anti-Glare Coating: Yes
• Brightness: 350 cd/m² (Nit)
• Contrast: 500:1
• Dot Pitch: 0.059mm x 0.176mm
• Response Time: 10/15ms (Rising/Falling)
• Viewing Angle: 70/70/50/70 degrees
• Audio Power / Speakers: 2 watts
• HDMI: x1 Input
• Composite: x1 BNC Input; x1 BNC Ouput
• Audio: x1 3.5mm Input; x1 3.5mm Output
• Power: x1 2.1mm DC Input (AC adapter not included)
• Operating Temp: -4 ~ 140°F / -20 ~ 60°C
• Humidity: 20% ~ 80% RH
• Power Requirements: 11VDC ~ 14VDC, 630mA, +pin, - ground
• Power Consumption: 5 watts (max)
• Dimension with desk stand and battery pack: 6.2" x 5.1" x 2.2" (158 x 130 x 55 mm)
• Dimensions without battery pack: 6.2" x 5.1" x 1.7" (158 x 130 x 42 mm)
• Product Weight:
  • Net: 14 oz (400g)
  • Gross: 1.6 lbs (0.7 kg)
• Case: Rubberized durable ABS Plastic
• Additional Information:
  • Electromagnetic Shielding
  • Auto Power On function
  • Mirror Image function
  • Automatic Signal Resolution
  • Scaling
  • Auto-sensing
  • NTSC/PAL
