Product Overview

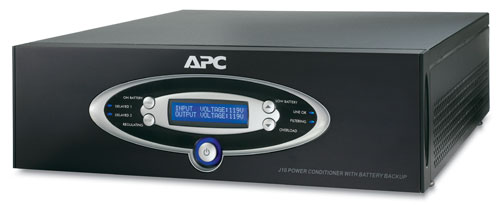

The APC J10BLk is an AV J Type 1kVA Power Conditioner with 120V Battery Backup. 600 Watts /1000 VA, Input 120V, Output 120V. Battery modules ship installed. Includes CD with software, removable heavy-duty 12 gauge input power cord, removable support feet, USB cable, and User Manual.
Protection:
- Boost and Trim Automatic Voltage Regulation (AVR) - Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.
- Power conditioning - Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Isolated power filter banks - Eliminates electromagnetic and radio frequency interference (EMI/RFI) as a source of audio-video signal degradation.
- Dataline surge protection - Provides protection of connected equipment from power surges on the data lines.
- Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Serviceability:
- Resettable circuit breakers - Enables a quick recovery from overload events.
- Multiple mounting methods - Allows for standardization on one product for use in different environments.
- Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
Manageability:
- Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Sequenced turn on/off - Helps power on components in the proper order to prevent speaker stress. Proper sequencing can also help manage current draw on startup to prevent unnecessary circuit breaker tripping.
- LED & display dimmer - Adjust the unit's LED and display brightness independently of each other to suit your individual tastes and environment.
Specifications:
- Output:
- Output Power Capacity: 600 Watts / 1000 VA
- Max Configurable Power: 600 Watts / 1000 VA
- Nominal Output Voltage: 120V
- Topology: Line Interactive
- Waveform Type: Stepped approximation to a sinewave
- Output Connections: (12) NEMA 5-15R
- Input:
- Nominal Input Voltage: 120V
- Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
- Input Connections: IEC-320 C14
- Cord Length: 10 feet (3.05 meters)
- Input voltage range for main operations: 90 - 140V
- Maximum Input Current: 12 A
- Input Breaker Capacity: 15 A
- Batteries & Runtime:
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Included Battery Modules: 1
- Typical recharge time: 16 hours
- Replacement Battery: APCRBC108
- Communications & Management:
- Control panel: Multi-function LCD status and control console
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
- Surge Protection and Filtering:
- Surge energy rating: 3200 Joules
- Filtering: Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449
- Data Line Protection: RJ-11 Modem/Fax protection (two wire single line), Cable modem / Video protection, Co-axial Video / Cable protection
- Physical:
- Dimensions: 5.25" H x 17" W x 18" D (133 x 432 x 457 mm)
- Net Weight: 43.30 lbs. (19.68 kg)
- Shipping Weight: 54.80 lbs. (24.91 kg)
- Shipping Dimensions: 13" H x 21.5" W x 24" D (330 x 546 x 610 mm)
- SCC Codes: 10731304 0
- Environmental:
- Operating Environment: 32 - 104 °F (0 - 40 °C)
- Operating Relative Humidity: 5 - 95%
- Operating Elevation: 0-10,000 feet (0-3000 meters)
- Storage Temperature: 5 - 113 °F (-15 - 45 °C)
- Storage Relative Humidity: 0 - 95%
- Storage Elevation: 0-50,000 feet (0-15000 meters)
- Conformance:
- Regulatory Approvals: CSA, FCC Part 15 Class B, FCC Part 68, UL 1778, UL 498
- Standard Warranty: 2 years repair or replace
- Equipment protection policy: Lifetime: $750,000
