Palmer PCABM
Passive Cabinet Merger


Our Price: $45.95
List Price: $99.95
You save 54%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

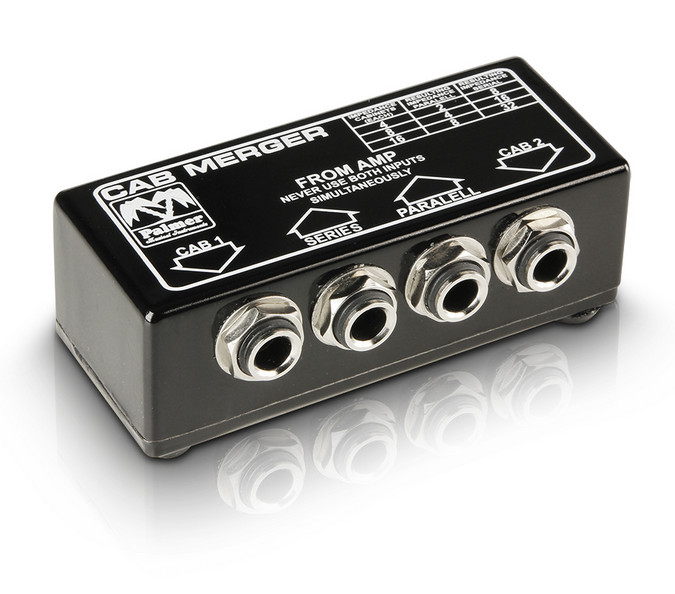

The concept behind Palmer's Cab Merger may be very simple, but the unit fills an important gap! Have you ever wanted to connect two guitar cabinets to just one amplifier output? It's quite simple with the PCABM!

In addition, you can choose parallel or series wiring. For instance, two 8 ohm cabinets can be connected for a total load of 4 ohms (parallel) or 16 ohms (in series). The device is entirely passive and does not affect tone in any way.

Palmer PCABM Specifications:

  • Product type: Combiner
  • Type: Passive
  • Inputs: 2
  • Input connectors: 6.3 mm Jack
  • Outputs: 2
  • Output connectors: 6.3 mm Jack
  • Cabinet material: Die-cast aluminium
  • Cabinet surface: Powder coated
  • Width: 105 mm
  • Depth: 35 mm
  • Height: 35 mm
  • Weight: 0.13 kg
