Product Overview

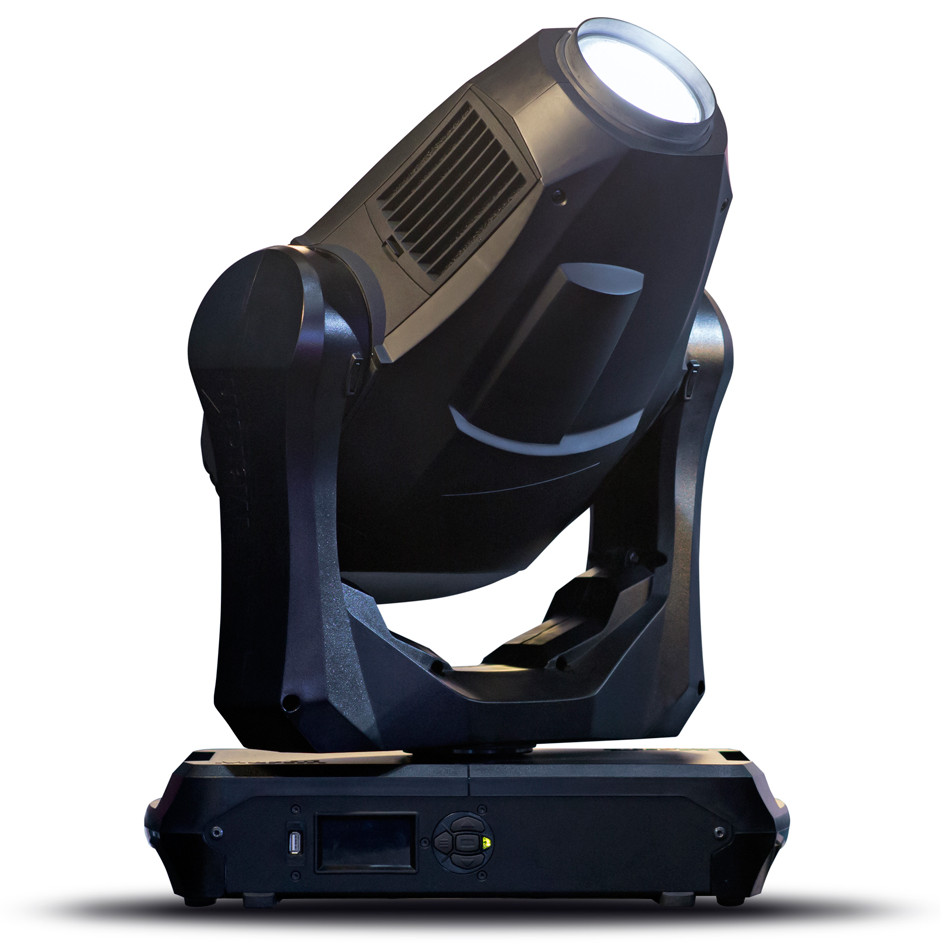

The Martin Professional MAC Quantum Profile™ is a fully featured LED profile that sets new standards for combined performance, weight and size.
This workhorse represents the latest in LED technology which in combination with Martin’s proprietary optical design delivers a crisp and bright output. Any concerns about lamp aging, shifts in color temperatures, green color points, misaligned lamps and declining output are eliminated, as consistent LED technology guarantees that the last show on the tour looks as good as the first.
The MAC Quantum Profile is designed to please all around. Weighing in at only 22 kg without compromising performance and speed, it’s compact size and precise movements will wow audiences, designers and technicians alike. And being great value for money, the MAC Quantum Profile offers a speedy return on investment.
Martin Professional MAC Quantum Profile Features:
- Flat field, crisp image, high contrast
- First real alternative to a 700 watt HID fixture
- Very low weight and compact design
- Super high-speed movements and effects
- Full feature set including color mixing and 1:3 zoom
- Consistent photometric performance via LED technology
Martin Professional MAC Quantum Profile Specifications:
- Physical:
- Dimensions (L x W x H): 17.8" x 17.3" x 25.3" (452 x 439 x 642mm)(head straight up)
- Weight: 49.4 lbs. (22.4 kg)
- Dynamic Effects:
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 6 color filters plus open
- Rotating gobo wheel: 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 10 gobos plus open, wheel indexing, rotation, and shake
- Beam effects: Rotating multi-facet prism
- Zoom: 12° - 34° (1:3)
- Focus: Motorized
- Iris: 0 - 100%, pulse effects
- Shutter effect: Electronic, with variable speed regular and random strobe
- Electronic dimming: Four dimming curve options
- Pan: 540°
- Tilt: 268°
- Pan and tilt speed: Adjustable via onboard control panel and DMX
- Control and Programming:
- Control system: DMX
- RDM: Implemented
- Control resolution: 8-bit, with 16-bit control of pan and tilt
- DMX channels: TBA
- Setting and addressing: Control panel with backlit graphic display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: RS-485
- Fixture software update: Via DMX with Martin™ USB Duo DMX Interface Box
- Optics:
- Light source: 475 W LED engine
- Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
- Construction:
- Color: Black
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP20
- Installation:
- Mounting points: 2 pairs of ¼-turn locks
- Location: Indoor use only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.7ft (0.2m)
- Minimum distance to illuminated surfaces: 6.6ft (2.0m)
- Connections:
- AC power input: Neutrik PowerCON®
- DMX and RDM data in/out: 5-pin locking XLR
- Electrical:
- AC power: 120-240 V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical power consumption, all effects static, zero light output: Approx. 50 W
- Thermal:
- Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
- Maximum ambient temperature (Ta max.): 104°F (40°C)
- Minimum ambient temperature (Ta min.): 41°F (5°C)
- Approvals:
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
- EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
- US safety (pending): UL 1573
- US EMC: FCC Part 15 Class A
- Canadian safety (pending): CSA C22.2 No. E598-2-17 (CSA E60598-1)
- Canadian EMC: ICES-003 Class A
- Australia/NZ: C-TICK N4241
