The Video Devices PIX 250i Complete is a kit with the PIX 205i recorder complemented with an XM Caddy Pack and XL-WP4 power supply. The PIX 250i is a file-based video recorder that delivers the performance, quality, and reliability required for fast-paced studio, live sports, event, and mobile production. This cost-effective and networkable recorder seamlessly replaces tape-and disc-based video decks.
The PIX 250i records and plays Apple ProRes and Avid DNxHD QuickTime video files through its 12-bit 4:4:4 3G-SDI at data rates from 330 Mb/s (ProRes 4444) down to 36 Mb/s (ProRes and DNxHD proxy files). Files recorded on a PIX 250i can be directly imported by leading editing systems including Avid Media Composer, Apple Final Cut Pro, and Adobe Premiere Pro. QuickTime masters made in an editing system are ready for playback on the PIX 250i.
Extensive network connectivity supports grouping multiple PIX recorders over Ethernet for simultaneous recording and playback. The PIX 250i can group with other PIX 250i recorders, as well as PIX 260i, and PIX 270i units. Additionally, SSD drives and files can be accessed over Ethernet as network-attached SMB volumes. An embedded web server provides browser-based control and setup-menu access.
Two front-panel drive bays hold SSD drives in removable PIX-CADDY carriers. The PIX 250i can record to the drives simultaneously for redundancy or sequentially long-form programs. In addition to browser-based control, the PIX 250i can be controlled via external RS-422 (Sony 9-pin compatible) signals. Machine transport and setup menu selections are fully controllable.
Comprehensive audio capabilities include support for 16 tracks of audio over eight channels of analog audio, eight channels of AES digital audio, and 16 channels of embedded SDI audio.
The PIX 250i includes a precision 5-inch 800 x 480-pixel IPS display for menu access and video monitoring. The highly accurate display provides peaking, false color, and zoom features to facilitate framing, exposure, and focus evaluation.
A built-in Ambient Lockit time-code generator/reader ensures accurate sync for multi-camera and double-system sound applications. In addition to generating ultra-stable time code, the PIX 250i reads time code embedded in SDI and HDMI streams, and from external sources.
The high-quality hardware scaler and converter in the PIX 250i powers real-time up, down, and cross-conversion during ingest. It converts between all supported SD and HD resolutions and frame rates, and includes 3:2 pull-down removal.
PowerSafe circuitry provides a constant 10-second power reserve. In the event of power loss, the PIX 250i continues to operate for up to 10 seconds, then cleanly stops any file operation and safely shuts down. The PIX 250i draws 10-27 VDC power through a four-pin XLR connector.

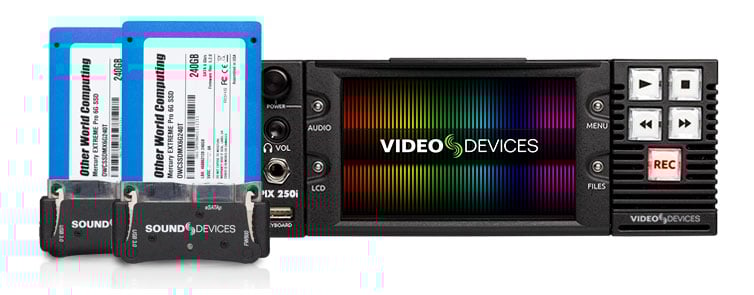

Sound Devices PIX250I-COMPLETE Includes:
- 1x PIX 250i Rack Mount Video Recorder
- 1x XM CADDY PACK
- 2x PIX SSD-6 240GB 2.5" SATA Drives pre-mounted to 2x PIX-Caddy2 drive mounting accessories.
- XL-WP4 power supply included.
Sound Devices PIX250I-COMPLETE Features:
- Critical Live Production Reliability:
- Dedicated video hardware records to standard removable solid-state drives
- PowerSafe circuitry provides 10-second power reserve and safe file shutdown during external power loss
- Simultaneous multi-drive recording on two SSD drives enables redundancy and backup
- Time-Saving Efficiency:
- Tapeless file-based recording, playback, and file transfer
- Recording on two SSD drives provides immediate file copies, backup, as well as long-form recording
- Access and transfer files over Ethernet
- Edit-ready Apple ProRes and Avid DNxHD files
- Expandable and Networkable:
- Create and control groups of multiple PIX recorders, including PIX 260i and PIX 270i units
- High-Quality HD Video
- 12-bit 4:4:4 video over 3G-SDI
- Apple ProRes and Avid DNxHD codecs from 36 Mb/s proxies up to 330 Mb/s ProRes 4444
Sound Devices PIX250I-COMPLETE Specifications:
- SDI Input & Output:
- 3G SDI 4:4:4, HD-SDI, SDI 4:2:2 conforming to SMPTE 12M-1, 12M-2, 125M, 259M, 272M, 291M, 292, 296M, 299, 352M, 424, 425
- HDMI I/O Version 1.4a input, Version 1.3a output, HDCP enabled on input
- Video Input Resolutions /Rates: 1080p23.976/24/25/29.97/30, 1080i50/59.94/60,1080PsF23.976/24/25/29.97/30, 720p23.976/24/25/29.97/30/50/59.94/60, 576i50(PAL), 480i59.94 (NTSC)
- Video Codecs and Files:
- Apple ProRes 4444 12-bit
- Apple ProRes 36, 100, 145, 220 Mb/s, 8- and 10-bit
- Avid DNxHD 36, 100, 145, 220 Mb/s, 8- and 10-bit
- Quicktime wrapper (.MOV),
- exFAT File System
- Up/Down/Cross Conversion: 480i, 576i, 720p, 1080i, 1080p to any 480i, 576i, 720p, 1080i, 1080p, anamorphic conversion
- Frame Rate Conversion: 24, 25, 30, 50, 60 to 24, 25, 30, 50, 60, 23.976, 29.97, 59.94 to 23.976, 29.97, 59.94, automatic 3:2 pull-down removal in 23.976 and 24 frame modes, other pull-down cadences include 2:2:2:4, 2:3:3:2, 3:2:3:2:2, and 2:2
- Audio Recording:
- 16 channels record/playback, simultaneous with video
- Analog, HDMI / SDI, and AES3, selectable per channel
- LCD Display: 5" LCD; 800 x 480 resolution, IPS, flip-down for drive access
- Analog Audio:
- Two balanced, line-level inputs on XLR
- Two balanced, line-level outputs on XLR
- Frequency Response: 10 Hz-20 kHz, +/- 0.5 dB re 1 kHz; THD + Noise: 0.004% max (1 kHz, 22 Hz-22 kHz)
- Input and output topology: fully electronically balanced, line-level, RF, ESD, short, and overload protected; pin-2 hot, pin-3cold
- Line output clipping level: +18dBu
- Output attenuation 0-20 dB, 1 dB increments
- Front-panel headphone, 1/4" with gain control
- Digital Audio:
- Sampling rate / bit depth: 48 kHz, 24-bit
- Accepts 32k, 44.1k, 48k, 96k, 192k sample rates with SRC at input.
- AES/EBU: 8 channels in and out via DB-25, 110 ohm, 2 V p-p
- HDMI: 8 channels embedded HDMI input, 8 channels embedded HDMI output Accepts 32k, 44.1k, 48k, 96k, 192k sample rates
- SDI: 16 Channels embedded SDI input and output.
- File Storage:
- XL-CADDY mounted drives: two, front-mounted Sound Devices approved 2.5" drives
- Ethernet file transfer via SMB/CIFS volume
- Timecode:
- Modes Supported: Free run, Record run, External
- Frame Rates: 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND
- Accuracy: +/- 0.2ppm, holds accurate time code for 2 hours after power is removed
- Inputs / Outputs: BNC(LTC input and output), SDI or HDMI
- Sync Output:
- Analog bi-, tri-level sync / genlock
- Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm)
- Sync Input:
- Analog bi-, tri-level sync / genlock
- Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 ohm)
- Control:
- RS422 Machine control (Sony 9-pin protocol)
- Ethernet Web-based control of settings and transport
- GPIO on 3 pins, Phoenix connector
- Keyboard
- Front-panel USB host. Keyboards without hubs acceptable.
- Power:
- 4-pin XLR (pin1 = ground, pin4 = +), 10-27 VDC, 30 watts
- PowerSafe circuitry with 10 second power reserve with power removed
- Physical:
- Dimensions: 3.3" H x 8.6" W x 10.3" D (8.4 x 21.8 x 26.2 cm)
- Weight: 7.5 lbs
- Operating Temperature: -10C to +40C
