Clear-Com EB7-4W
4 Wire Adapter Board for KB and HB-Series Products

OUR PART #:  EB7-4W

The Clear-Com EB7-4W 4-Wire Option module can be added to the KB-702, KB-702GM, KB-701, and HB-702 products.
Learn More
Our Price: $274.50
List Price: $305.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com EB7-4W
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

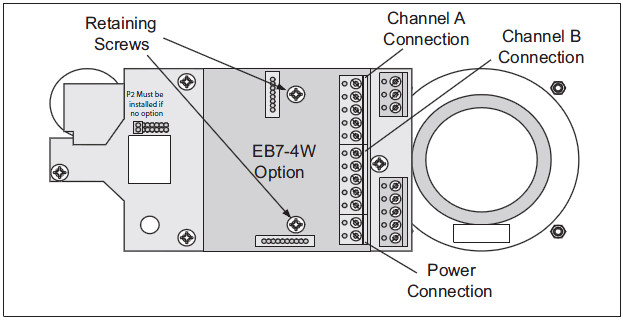

The Clear-Com EB7-4W 4-Wire Option module can be added to the KB-702, KB-702GM, KB-701, and HB-702 products. This product allows the speaker or headset station to be operated over longer distances than are possible with a standard Clear-Com intercom line. This option can also be used to connect with fiber optic transmission equipment. The EB7-4W 4-Wire Option module connection is a transformer-isolated, audio-only connection and does not convey the call signal. The module also requires local powering.

Two-channel stations can have two separate 4-wire connections with this option. The Channel Switch on the front panel selects which channel is connected.

Clear-Com EB7-4W Specifications:

EB7-4W Input

  • Input Impedance:  >=5K ohm
  • Max Level before Clipping:  >=10dB

EB7-4W Output

  • Output Impedance:  <=600 ohm

Power

  • AC Input Voltage Range:  14-20 VAC
  • DC Input Voltage Range:  20-30 VDC
  • Input Current (Max):  <= 15mA
    (excluding KB/HB station current)
