Delvcam DELV-SDI-10

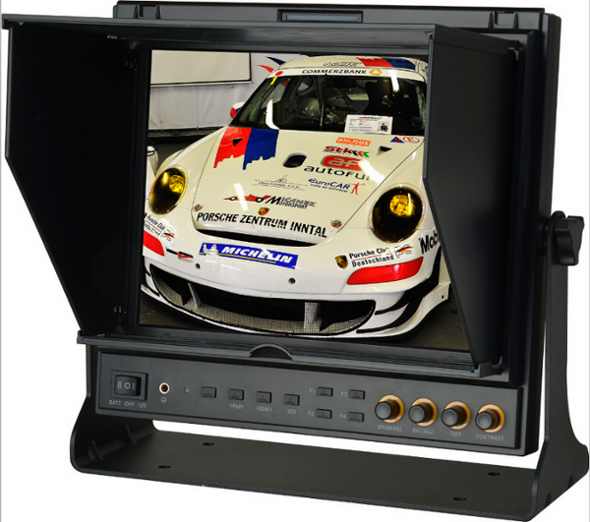

Delvcam 9.7 inch SDI Monitor With Dual HDMI Input and 1 HDMI Output

OUR PART #:  DELV-SDI-10

TecNec Distributing offers the Delvcam DELV-HDSD-10, a 9.7 inch 4:3 IPS LED HD broadcast monitor with dual HDMI inputs, component video and build-in sun hood.
Learn More
Our Price: $649.95
Write the first review.
Delvcam DELV-SDI-10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

TecNec Distributing offers the Delvcam DELV-HDSD-10, a 9.7 inch 4:3 IPS LED HD broadcast monitor with dual HDMI inputs, component video and build-in sun hood. This unit is optimized for studio and video editing work.

TecNec DELV-SDI-10 Features:

  • IPS panel 178° wide viewing angles
  • High resolution: 1024x768
  • High brightness: 400cd/m2
  • High contrast: 600:1
  • 3G-SDI & HDMI input
  • Wide voltage: DC 7-24V
  • TALLY interface & 5V charging
  • Comply with IP52 standard

TecNec DELV-SDI-10 Specifications:

  • Display:
    • Panel 9.7" LED backlit
    • Physical Resolution 1024x768, support up to 1920x1080
    • Aspect Ratio 4:3
    • Brightness 400cd/m2
    • Contrast 600:1
    • Viewing Angle 178°/178°(H/V)
  • Input:
    • 3G-SDI 1
    • HDMI 1
    • YPbPr 3(BNC)
    • TALLY 1
    • AUDIO 2(L/R)
  • Output:
    • 3G-SDI 1
    • HDMI 1
    • YPbPr 3(BNC)
    • USB 1(5V for charging)
  • Audio:
    • Speaker 1(build-in)
    • Ear Phone Slot 1
  • Power:
    • Current 1500mA
    • Input Voltage DC 7-24V(XLR)
    • Battery Plate V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6
    • Power Consumption =18W
  • Environment:
    • Operating Temperature: -20C - 60C / -4F - 140F
    • Storage Temperature: -30C - 70C / -22F - 158F
  • Dimensions:
    • Dimension(LWD): 246x224x31/167.5mm (with cover) / 9.69x8.82x1.22/6.60in (with cover)
    • Weight 1068g/1388g (with cover) / 2.36/30.6lbs (with cover)
