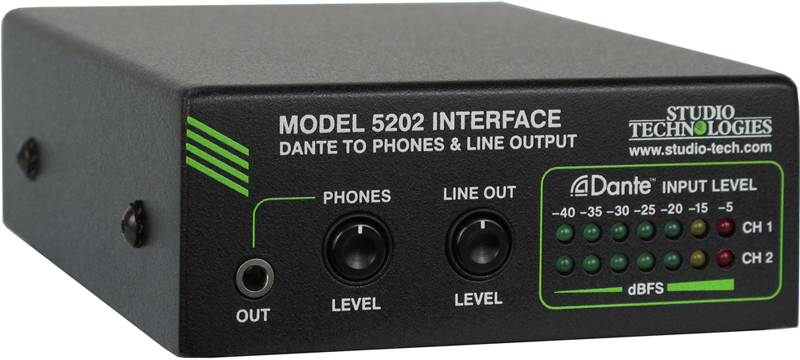

Studio Technologies Model 5202
Dante to Phones and Line Output Interface


Our Price: $491.04
List Price: $495.00
(Low Price Guarantee)
In Stock

The Studio Technologies Model 5202 Interface is a general-purpose audio device that supports applications utilizing the Dante Audio-over-Ethernet media networking technology. Two Dante-associated audio channels can be assigned to the Model 5202 which provides headphone and balanced line-level outputs. The audio quality is such that virtually any audio application can be supported, from simple headphone or loudspeaker monitoring to interfacing with high-performance on-air broadcast, stadium AV, or corporate audio systems. Multi-step LED meters provide confirmation of the level of the two input audio channels. The compact, lightweight design allows the Model 5202 to be used in portable or desktop situations or deployed as a permanent solution in fixed applications. Standard connectors ensure fast, reliable deployment. The unit requires only an Ethernet connection to supply both the data interface as well as Power-over-Ethernet (PoE) power.

Studio Technologies Model 5202 Features:

  • Dante Audio-over-Ethernet technology
  • Headphone and balanced line outputs
  • Excellent audio quality
  • PoE powered
  • Audio channel level metering
  • Standard connectors
  • Compact, lightweight design

Studio Technologies Model 5202 Specifications:

  • Network Audio Technology:
    • Type:  Dante Audio-over-Ethernet
    • Bit Depth:  Up to 24
    • Sample Rates:  44.1, 48, 88.2, and 96 kHz
  • Network Interface:
    • Type:  Twisted-pair Ethernet with Power-over-Ethernet (PoE) Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported)
    • Power:  Power-over-Ethernet (PoE) per IEEE 802.3af class 1 (very low power, =3.84 watts)
  • General Audio Parameters:
    • Frequency Response:  20 Hz to 20 kHz, ┬▒0.5 dB, Dante to line output
    • Distortion (THD+N):  0.01%, measured at 1 kHz, +4 dBu, Dante to line output
    • Dynamic Range:  >100 dB, A-weighted, Dante to line output
  • Headphone Output:
    • Type:  Stereo, configured to drive headphones through 100 ohm series resistors
    • Compatibility:  Intended for connection to headphones with impedance of 100 ohms or greater
    • Level:  Adjustible using rotary level control
    • Maximum Voltage:  8 Vpp, 100 ohm load
  • Line Outputs:  2
    • Type: Electronically balanced, capacitor-coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater
    • Source Impedance:  200 Ohms
    • Nominal Level:  Adjustable using rotary level control, +4 dBu @ 100% rotation
    • Maximum Level:  +24 dBu into 2 k ohms
  • Meters:  2
    • Function:  Displays level of Dante input signals
    • Type:  7-segment LED, modified VU ballistics
  • Connectors:
    • Line Outputs:  3-pin male XLR
    • Headphone Output:  3.5 mm and ┬╝-inch 3-conductor jacks
    • Ethernet:  Neutrik etherCON RJ45
  • Dimensions (Overall):
    • 4.2 inches wide (10.7 cm)
    • 1.7 inches high (4.3 cm)
    • 5.1 inches deep (13.0 cm)
  • Mounting Option:  Bracket kit
  • Weight:  0.8 pounds (0.35 kg)
