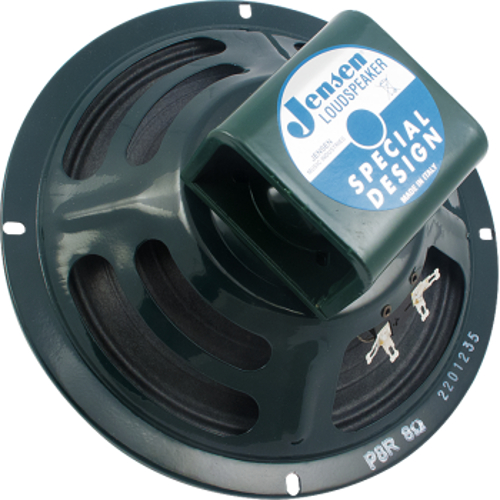

Jensen Loudspeakers P-A-P8R
8" 25W Vintage Alnico Series Speaker

OUR PART #:  P-A-P8R

Jensen Loudspeakers' P-A-P8R offers warm clean tone with emphasis on the highs. It responds to overdrive distortion with a warm and bright fuzz lead voice.
Learn More
Selected Model Price: $94.98
List Price: $131.00
Save up to 27%!
Write the first review.
Jensen Loudspeakers P-A-P8R
Select a Model: (shipping times are approximate)

Related Products

Jensen Loudspeakers' P-A-P8R offers warm clean tone with emphasis on the highs. It responds to overdrive distortion with a warm and bright fuzz lead voice.

Jensen Loudspeakers P-A-P8R Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 8" (207 mm)
    • Nominal Voice Coil Diameter: 1" (25 mm)
    • Magnet Weight: 7.0 oz (200 g)
    • Overall Weight: 2.65 lbs
    • Flux Density: 0.96 T
  • Thiele-Small Parameters for 4O:
    • Voice Coil DC Resistance RE: 3.00 O
    • Resonance Frequency ƒS: 129 Hz
    • Mechanical Q Factor QMS: 8.67
    • Electrical Q Factor QES: 1.72
    • Total Q Factor QTS: 1.43
    • Mechanical Moving Mass MMS: 9.3 g
    • Mechanical Compliance CMS: 164 µm/N
    • Force Factor BxL: 3.72 Wb/m
    • Equivalent Acoustic Volume VAS: 10.5 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 1.27 %
    • Diaphragm Area SD: 213.8 cm2
    • Losses Electrical Resistance RES: 16 O
    • Voice Coil Inductance @ 1kHz LE: 0.21 mH
  • Constructive Characteristics for 4O:
    • Magnet: AlNiCo
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 4O:
    • Nominal Impedance: 4 O
    • Rated Power: 25 W
    • Musical Power: 50 W
    • Sensitivity @ 1W,1m: 94.1 dB
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 6.70 O
    • Resonance Frequency ƒS: 130 Hz
    • Mechanical Q Factor QMS: 9.18
    • Electrical Q Factor QES: 2.30
    • Total Q Factor QTS: 1.84
    • Mechanical Moving Mass MMS: 9.3 g
    • Mechanical Compliance CMS: 161 µm/N
    • Force Factor BxL: 4.72 Wb/m
    • Equivalent Acoustic Volume VAS: 10.3 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 0.95 %
    • Diaphragm Area SD: 213.8 cm2
    • Losses Electrical Resistance RES: 27 O
    • Voice Coil Inductance @ 1kHz LE: 0.36 mH
  • Constructive Characteristics for 8O:
    • Magnet: AlNiCo
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 25 W
    • Musical Power: 50 W
    • Sensitivity @ 1W,1m: 92.5 dB
