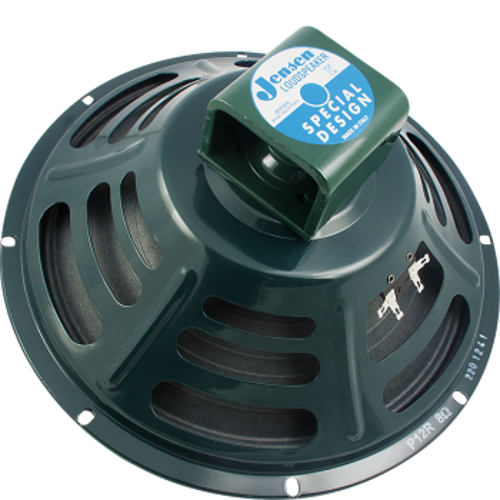

Jensen Loudspeakers P-A-P12R
12" 25W Vintage Alnico Series Speaker

OUR PART #:  P-A-P12R

Jensen Loudspeakers' P-A-P12R offers straightforward, bright tone.
Learn More
Selected Model Price: $119.77
List Price: $165.20
Save up to 28%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Jensen Loudspeakers P-A-P12R
Select model: (shipping times are approximate)
Qty:

Similar Products

Jensen Loudspeakers' P-A-P12R offers straightforward, bright tone.

Jensen Loudspeakers P-A-P12R Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 12" (306 mm)
    • Nominal Voice Coil Diameter: 1" (25 mm)
    • Magnet Weight: 7.0 oz (200 g)
    • Overall Weight: 3.55 lbs
    • Flux Density: 0.96 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 6.00 O
    • Resonance Frequency ƒS: 80.0 Hz
    • Mechanical Q Factor QMS: 12.73
    • Electrical Q Factor QES: 2.09
    • Total Q Factor QTS: 1.79
    • Mechanical Moving Mass MMS: 20.3 g
    • Mechanical Compliance CMS: 196 µm/N
    • Force Factor BxL: 5.55 Wb/m
    • Equivalent Acoustic Volume VAS: 66.4 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 1.56 %
    • Diaphragm Area SD: 490.8 cm2
    • Losses Electrical Resistance RES: 39.0 O
    • Voice Coil Inductance @ 1kHz LE: 0.50 mH
  • Constructive Characteristics for 8O:
    • Magnet: AlNiCo
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 25 W
    • Musical Power: 50 W
    • Sensitivity @ 1W,1m: 95.0 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.00 O
    • Resonance Frequency ƒS: 77.0 Hz
    • Mechanical Q Factor QMS: 12.53
    • Electrical Q Factor QES: 2.68
    • Total Q Factor QTS: 2.20
    • Mechanical Moving Mass MMS: 19.9 g
    • Mechanical Compliance CMS: 214 µm/N
    • Force Factor BxL: 6.68 Wb/m
    • Equivalent Acoustic Volume VAS: 72.6 lt.
    • Maximum Linear Displacement XMAX: 0.75 mm
    • Reference Efficiency nO: 1.19 %
    • Diaphragm Area SD: 490.8 cm2
    • Losses Electrical Resistance RES: 58.0 O
    • Voice Coil Inductance @ 1kHz LE: 0.84 mH
  • Constructive Characteristics for 16O:
    • Magnet: AlNiCo
    • Voice Coil Winding: Copper
    • Voice Coil Former: Kapton
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 25 W
    • Musical Power: 50 W
    • Sensitivity @ 1W,1m: 94.0 dB
