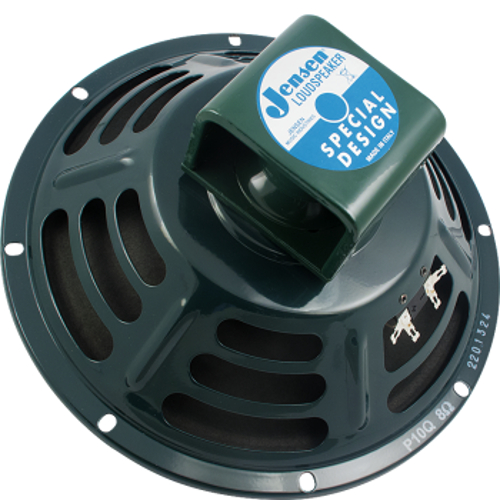

Jensen Loudspeakers P-A-P10Q
10" 40W Vintage Alnico Series Speaker

OUR PART #:  P-A-P10Q

Jensen Loudspeakers' P-A-P10Q has warm tone with some bite in the mid frequencies which translates into a fierce response to overdrive distortion.
Learn More
Selected Model Price: $187.05
List Price: $258.00
Save up to 28%!
Write the first review.
Jensen Loudspeakers P-A-P10Q
Select a Model: (shipping times are approximate)

Related Products

Jensen Loudspeakers' P-A-P10Q has warm tone with some bite in the mid frequencies which translates into a fierce response to overdrive distortion.

Jensen Loudspeakers P10Q Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 10" (259 mm)
    • Nominal Voice Coil Diameter: 1.25" (32 mm)
    • Magnet Weight: 10.5 oz (300 g)
    • Overall Weight: 3.65 lbs
    • Flux Density: 1.05 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 5.57 O
    • Resonance Frequency ƒS: 89.9 Hz
    • Mechanical Q Factor QMS: 9.96
    • Electrical Q Factor QES: 1.69
    • Total Q Factor QTS: 1.44
    • Mechanical Moving Mass MMS: 19.7 g
    • Mechanical Compliance CMS: 159 µm/N
    • Force Factor BxL: 6.07 Wb/m
    • Equivalent Acoustic Volume VAS: 24.4 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 1.01 %
    • Diaphragm Area SD: 330.6 cm2
    • Losses Electrical Resistance RES: 32.9 O
    • Voice Coil Inductance @ 1kHz LE: 0.52 mH
  • Constructive Characteristics for 8O:
    • Magnet: AlNiCo
    • Voice Coil Winding: Copper
    • Voice Coil Former: Nomex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 40 W
    • Musical Power: 80 W
    • Sensitivity @ 1W,1m: 93.8 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.03 O
    • Resonance Frequency ƒS: 91.8 Hz
    • Mechanical Q Factor QMS: 8.44
    • Electrical Q Factor QES: 2.42
    • Total Q Factor QTS: 1.88
    • Mechanical Moving Mass MMS: 17.2 g
    • Mechanical Compliance CMS: 174 µm/N
    • Force Factor BxL: 7.04 Wb/m
    • Equivalent Acoustic Volume VAS: 26.6 lt.
    • Maximum Linear Displacement XMAX: 1.0 mm
    • Reference Efficiency nO: 0.82 %
    • Diaphragm Area SD: 330.0 cm2
    • Losses Electrical Resistance RES: 42 O
    • Voice Coil Inductance @ 1kHz LE: 0.79 mH
  • Constructive Characteristics for 16O:
    • Magnet: AlNiCo
    • Voice Coil Winding: Copper
    • Voice Coil Former: Nomex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Solid Paper
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 40 W
    • Musical Power: 80 W
    • Sensitivity @ 1W,1m: 92.4 dB
