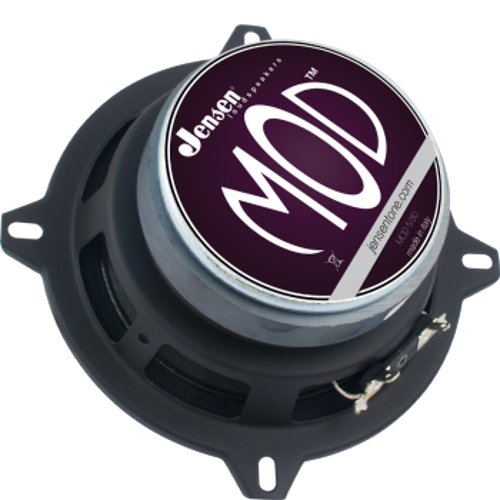

Jensen Loudspeakers P-A-MOD5-30
5" 30W Mod Series Speaker

OUR PART #:  P-A-MOD5-30

Jensen Loudspeakers' P-A-MOD5-30 is a 5" speaker that packs 30 watts of power. It is a great replacement for Trace Elliot amps.
Learn More
Our Price: $32.89
List Price: $41.00
You save 20%!
Write the first review.
Jensen Loudspeakers P-A-MOD5-30
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Jensen Loudspeakers' P-A-MOD5-30 is a 5" speaker that packs 30 watts of power. It is a great replacement for Trace Elliot amps.

Jensen Loudspeakers P-A-MOD5-30 Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 5" (129 mm)
    • Nominal Voice Coil Diameter: 1" (25 mm)
    • Magnet Weight: 13.4 oz (380 g)
    • Overall Weight: 2.15 lbs
    • Flux Density: 1.10 T
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 6.00 O
    • Resonance Frequency ƒS: 125 Hz
    • Mechanical Q Factor QMS: 7.48
    • Electrical Q Factor QES: 0.94
    • Total Q Factor QTS: 0.84
    • Mechanical Moving Mass MMS: 4.3 g
    • Mechanical Compliance CMS: 378 µm/N
    • Force Factor BxL: 4.59 Wb/m
    • Equivalent Acoustic Volume VAS: 3.3 lt.
    • Maximum Linear Displacement XMAX: 0.5 mm
    • Reference Efficiency nO: 0.66 %
    • Diaphragm Area SD: 78.5 cm2
    • Losses Electrical Resistance RES: 47.0 O
    • Voice Coil Inductance @ 1kHz LE: 0.19 mH
  • Constructive Characteristics for 8O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Treated Cloth
    • Dust Dome: Non-treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8O
    • Rated Power: 30 W
    • Musical Power: 60 W
    • Sensitivity @ 1W,1m: 91.5 dB
