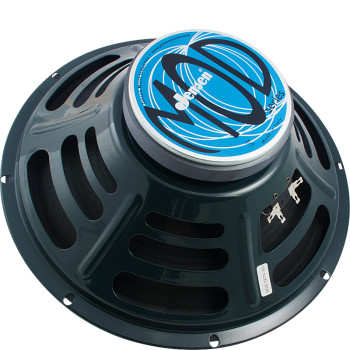

Jensen Loudspeakers P-A-MOD12-70
12" 70W Mod Series Speaker

OUR PART #:  P-A-MOD12-70

Jensen Loudspeakers' MOD12-70 is loud, dynamic, and well defined. It has a defined warm crunch response to overdrive distortion.
Learn More
Selected Model Price: $71.78
List Price: $99.00
Save up to 27%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Jensen Loudspeakers P-A-MOD12-70
Select a Model: (shipping times are approximate)
Qty:

Similar Products

Jensen Loudspeakers' MOD12-70 is loud, dynamic, and well defined. It has a defined warm crunch response to overdrive distortion.

Jensen Loudspeakers Mod 12-70 Specifications:

  • General Characteristics:
    • Nominal Overall Diameter: 12" (306 mm)
    • Nominal Voice Coil Diameter: 1.5" (38 mm)
    • Magnet Weight: 22.5 oz (640 g)
    • Overall Weight: 5.30 lbs
    • Flux Density: 1.16 T
  • Thiele-Small Parameters for 4O:
    • Voice Coil DC Resistance RE: 3.50 O
    • Resonance Frequency ƒS: 74.0 Hz
    • Mechanical Q Factor QMS: 6.97
    • Electrical Q Factor QES: 0.82
    • Total Q Factor QTS: 0.74
    • Mechanical Moving Mass MMS: 29.0 g
    • Mechanical Compliance CMS: 158 µm/N
    • Force Factor BxL: 7.72 Wb/m
    • Equivalent Acoustic Volume VAS: 53.6 lt.
    • Maximum Linear Displacement XMAX: 1.5 mm
    • Reference Efficiency nO: 2.57 %
    • Diaphragm Area SD: 490.9 cm2
    • Losses Electrical Resistance RES: 31.0 O
    • Voice Coil Inductance @ 1kHz LE: 0.43 mH
  • Constructive Characteristics for 4O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non-treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 4O:
    • Nominal Impedance: 4 O
    • Rated Power: 70 W
    • Musical Power: 140 W
    • Sensitivity @ 1W,1m: 99.5 dB
  • Thiele-Small Parameters for 8O:
    • Voice Coil DC Resistance RE: 5.30 O
    • Resonance Frequency ƒS: 78.0 Hz
    • Mechanical Q Factor QMS: 19.00
    • Electrical Q Factor QES: 1.15
    • Total Q Factor QTS: 1.08
    • Mechanical Moving Mass MMS: 30.5 g
    • Mechanical Compliance CMS: 138 µm/N
    • Force Factor BxL: 8.40 Wb/m
    • Equivalent Acoustic Volume VAS: 46.7 lt.
    • Maximum Linear Displacement XMAX: 1.5 mm
    • Reference Efficiency nO: 1.82 %
    • Diaphragm Area SD: 491.0 cm2
    • Losses Electrical Resistance RES: 90.0 O
    • Voice Coil Inductance @ 1kHz LE: 0.58 mH
  • Constructive Characteristics for 8O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non-treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 8O:
    • Nominal Impedance: 8 O
    • Rated Power: 70 W
    • Musical Power: 140 W
    • Sensitivity @ 1W,1m: 96.3 dB
  • Thiele-Small Parameters for 16O:
    • Voice Coil DC Resistance RE: 12.00 O
    • Resonance Frequency ƒS: 83.0 Hz
    • Mechanical Q Factor QMS: 7.84
    • Electrical Q Factor QES: 1.19
    • Total Q Factor QTS: 1.04
    • Mechanical Moving Mass MMS: 30.3 g
    • Mechanical Compliance CMS: 125 µm/N
    • Force Factor BxL: 12.56 Wb/m
    • Equivalent Acoustic Volume VAS: 42.4 lt.
    • Maximum Linear Displacement XMAX: 1.5 mm
    • Reference Efficiency nO: 1.88 %
    • Diaphragm Area SD: 490.9 cm2
    • Losses Electrical Resistance RES: 80.0 O
    • Voice Coil Inductance @ 1kHz LE: 1.00 mH
  • Constructive Characteristics for 16O:
    • Magnet: Ferrite
    • Voice Coil Winding: Copper
    • Voice Coil Former: Epotex
    • Cone: Paper
    • Surround: Integrated Paper
    • Dust Dome: Non-treated Cloth
    • Basket: Pressed Sheet Steel
  • Electrical Characteristics for 16O:
    • Nominal Impedance: 16 O
    • Rated Power: 70 W
    • Musical Power: 140 W
    • Sensitivity @ 1W,1m: 96.0 dB
